Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

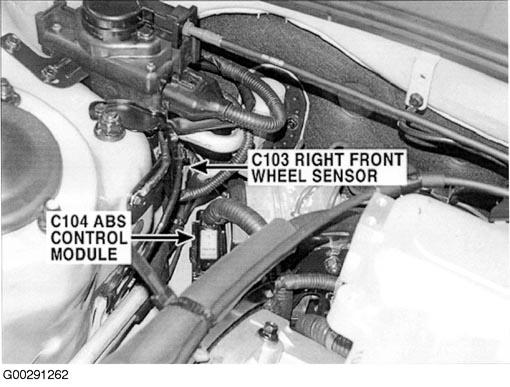

| ABS Control Module (2.4L) | At right rear side of engine compartment, on strut tower. See Figure . |
| ABS Control Module (2.7L) | At right rear side of engine compartment, on strut tower. See Figure . |

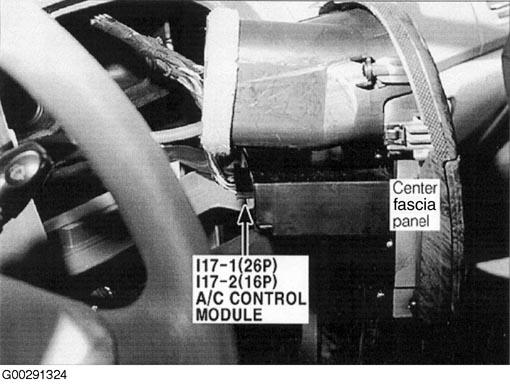

| A/C Control Module | Behind center of dash. See Figure . |

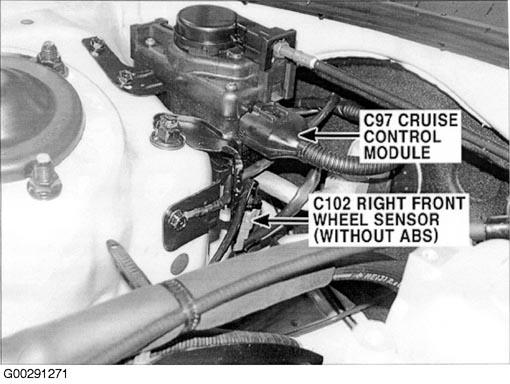

| Cruise Control Module (2.4L) | At right side of engine compartment, on strut tower. See Figure . |

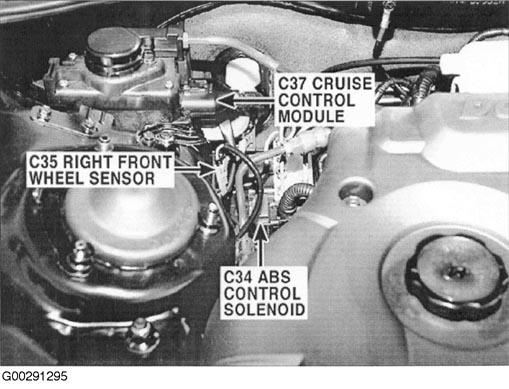

| Cruise Control Module (2.7L) | At right side of engine compartment, on strut tower. See Figure . |

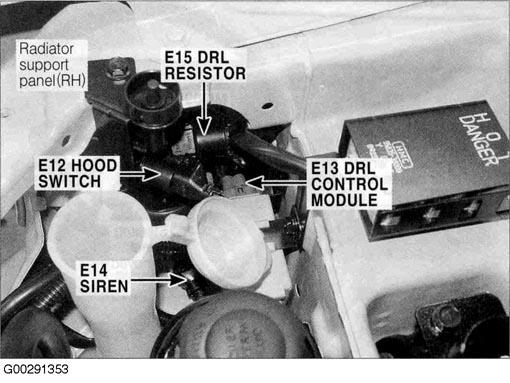

| DRL Control Module | At right side of engine compartment, forward of strut tower. See Figure . |

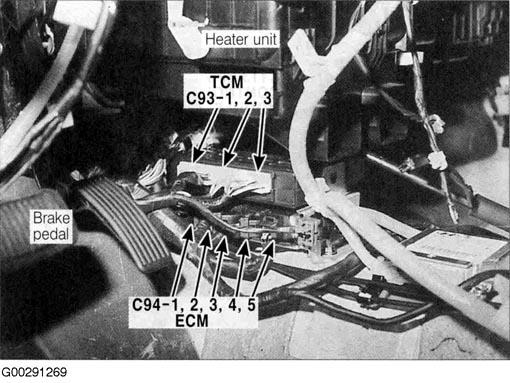

| ECM | Behind lower center of dash. See Figure . |

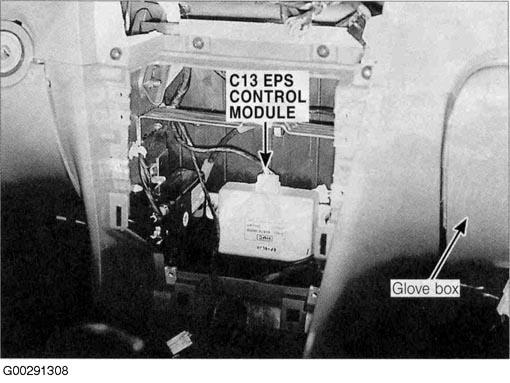

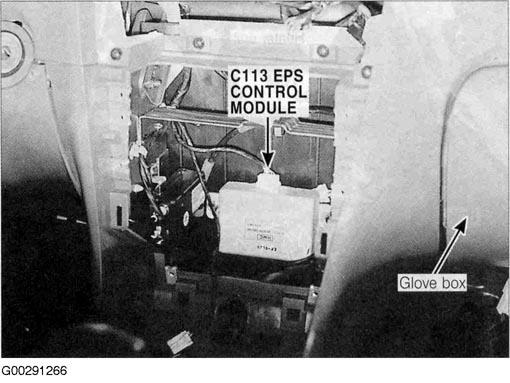

| EPS (Electronic Power Steering) Control Module (2.4L) | Behind center of dash. See Figure . |
| EPS (Electronic Power Steering) Control Module (2.7L) | Behind center of dash. See Figure . |

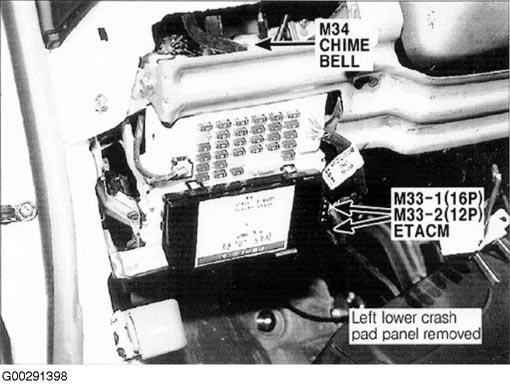

| ETACM | In passenger compartment junction block. See Figure . |

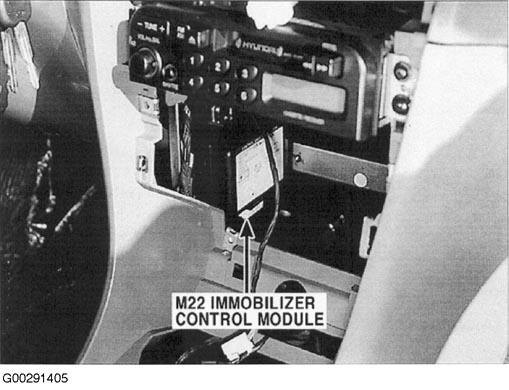

| Immobilizer Control Module | Center of dash. See Figure . |

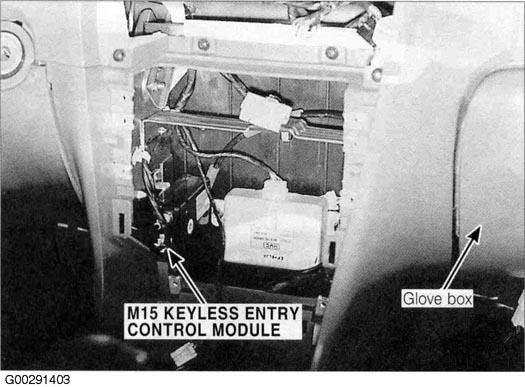

| Keyless Entry Control Module | Behind lower center of dash. See Figure . |

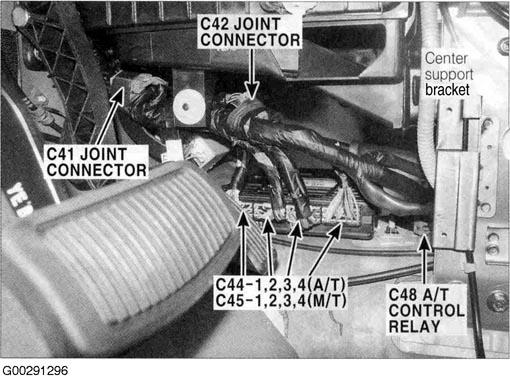

| PCM (A/T) (C44) | Behind lower center of dash. See Figure . |

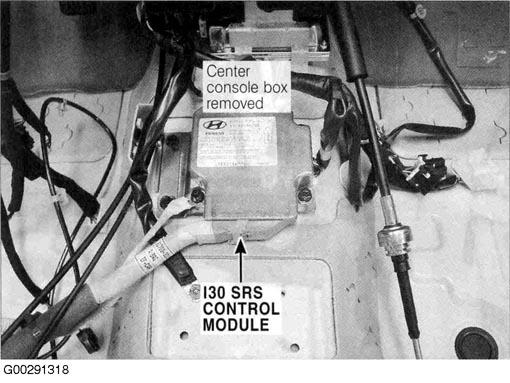

| SRS Control Module | Under floor console, rear of parking brake lever. See Figure . |
| TCM | Behind lower center of dash. See Figure . |
