Home >> Hyundai >> 2007 >> Accent GLS, Automatic >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Control Units

Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Module At right rear corner of engine compartment. See Figure.
ECM Left rear of engine compartment. See Figure.

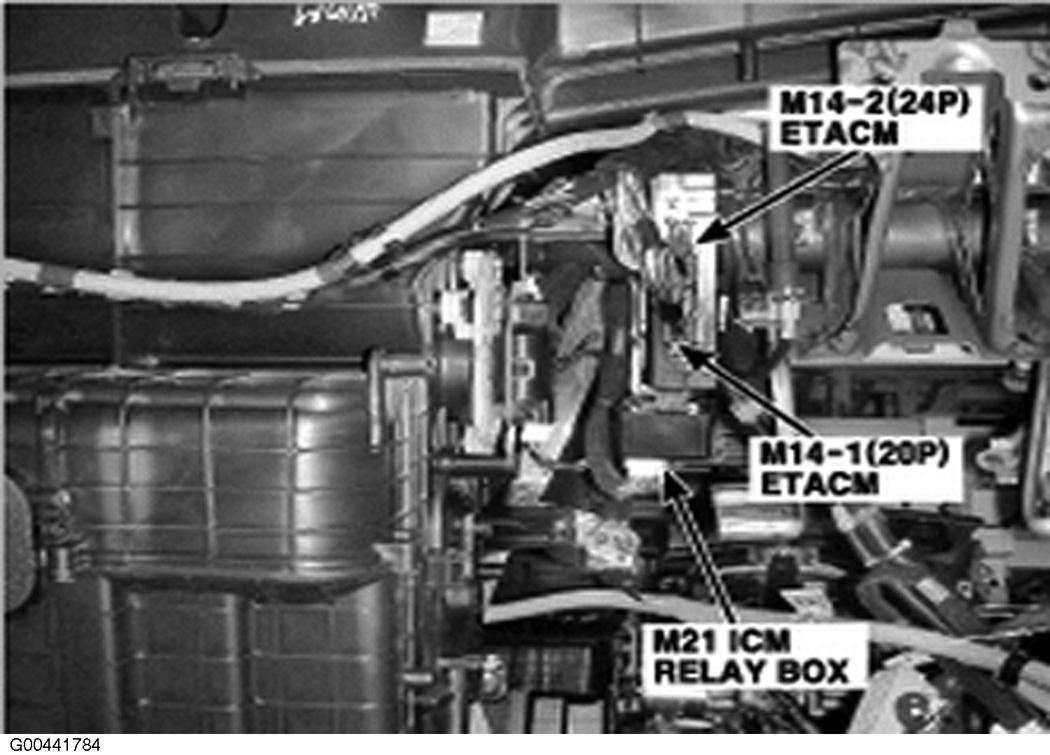

ETACM Behind left center of dash. See Figure.
PCM Left rear of engine compartment. See Figure.
SRS Control Module Under center console. See Figure.
Tire Pressure Monitoring Module Behind center of dash. See Figure.
