Steering Column: Overhaul

NOTE: Refer to appropriate illustration when overhauling steering column. See Fig 1 -Fig 5 .

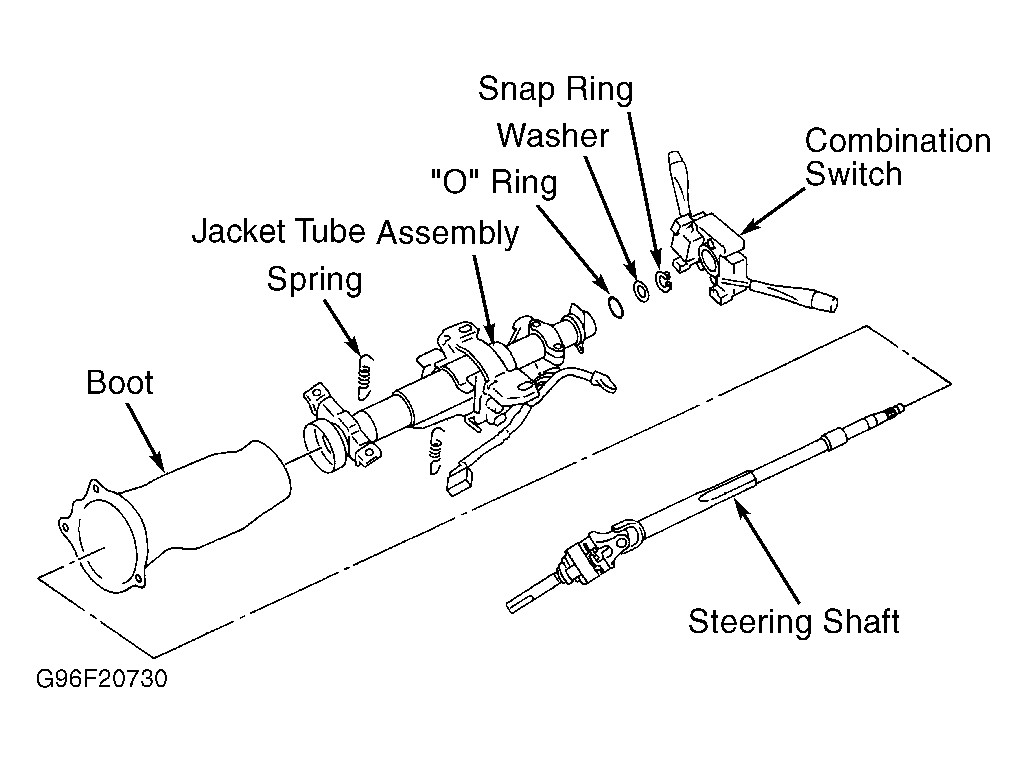

Fig 1: Exploded View Of Steering Column (Altima & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

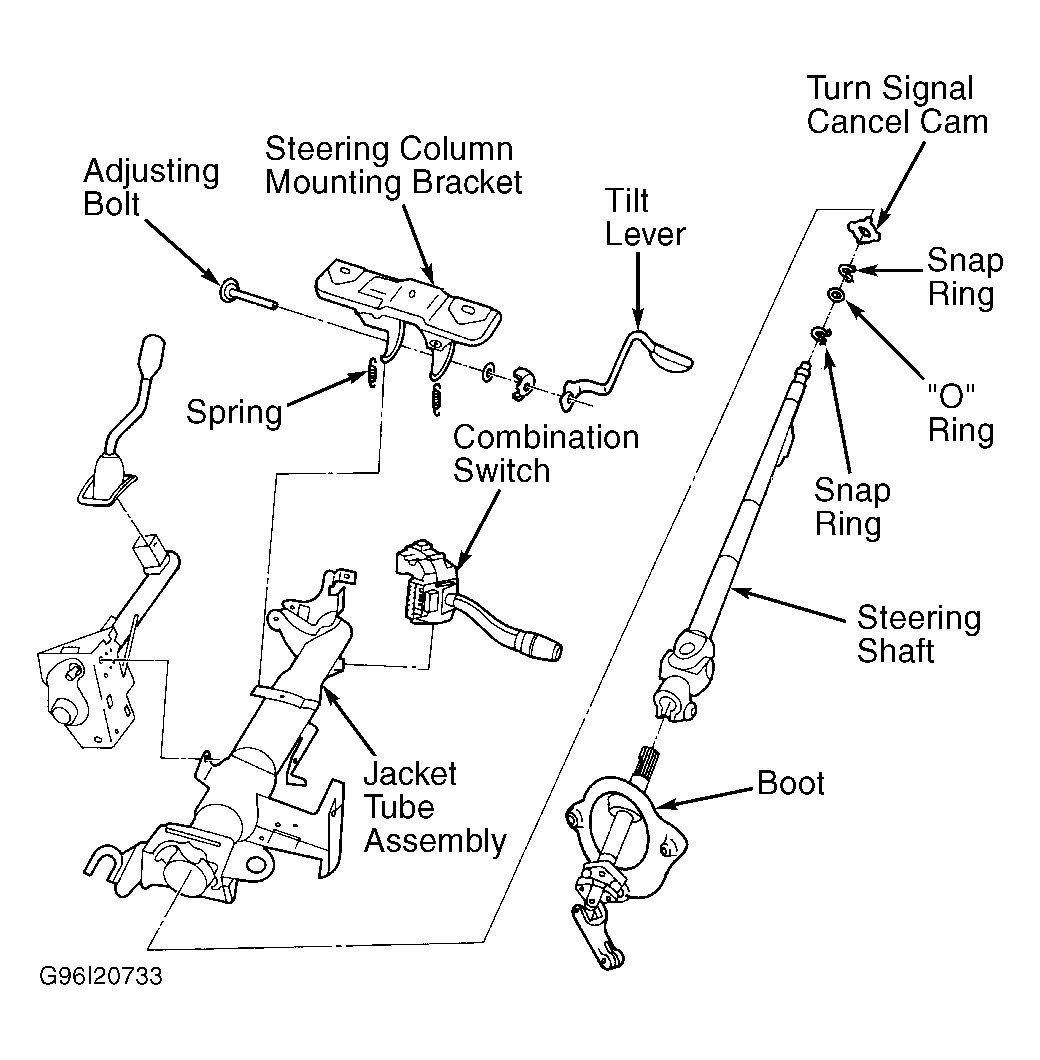

Fig 2: Exploded View Of Steering Columns (Pathfinder/QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

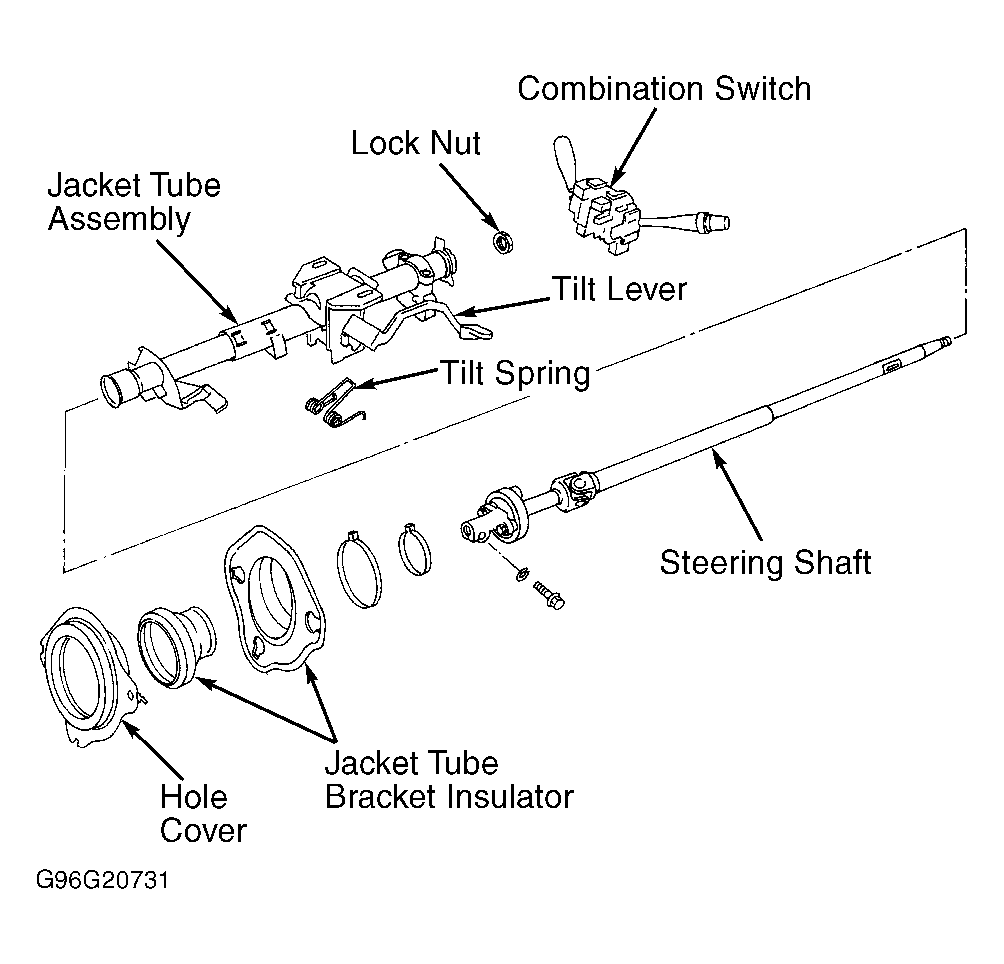

Fig 3: Exploded View Of Steering Column (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

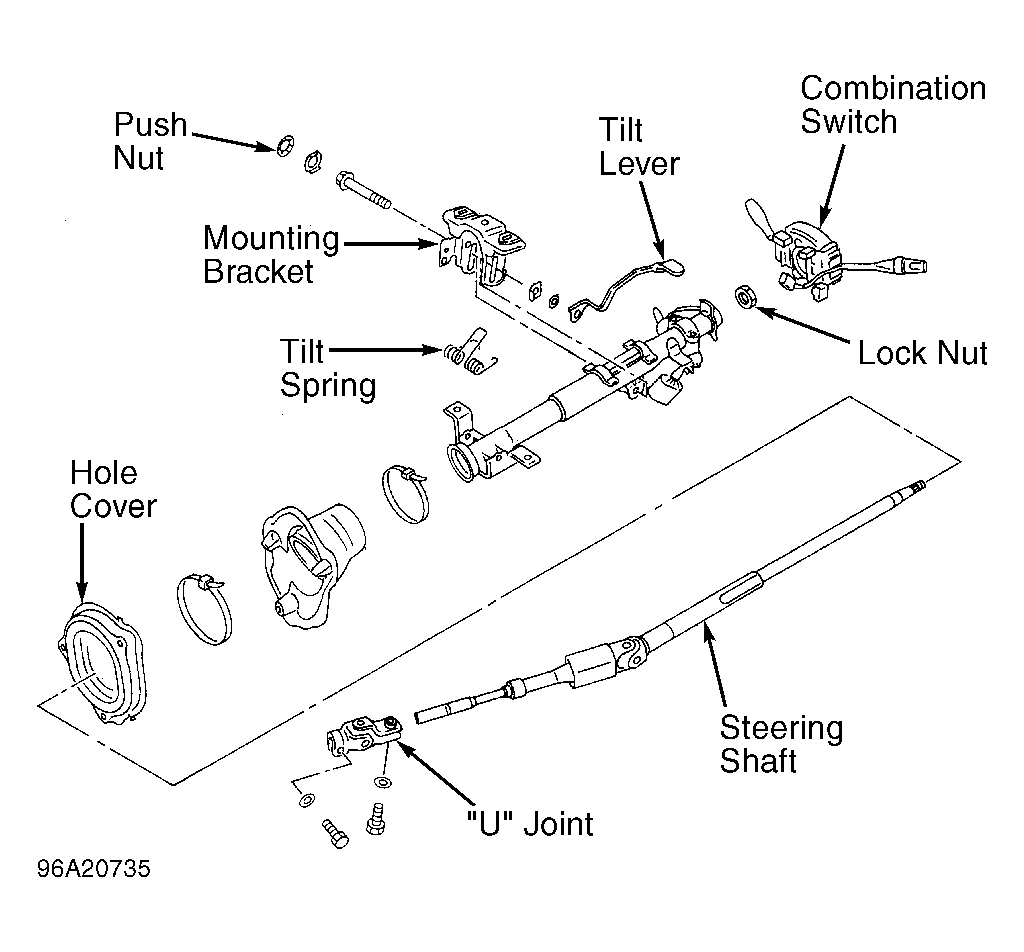

Fig 4: Exploded View Of Steering Column (Sentra & 200SX)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Exploded View Of Steering Column (240SX)

Courtesy of NISSAN MOTOR CO., U.S.A.
