Shift Linkage

  1. Loosen nut of control rod. See Fig 1.

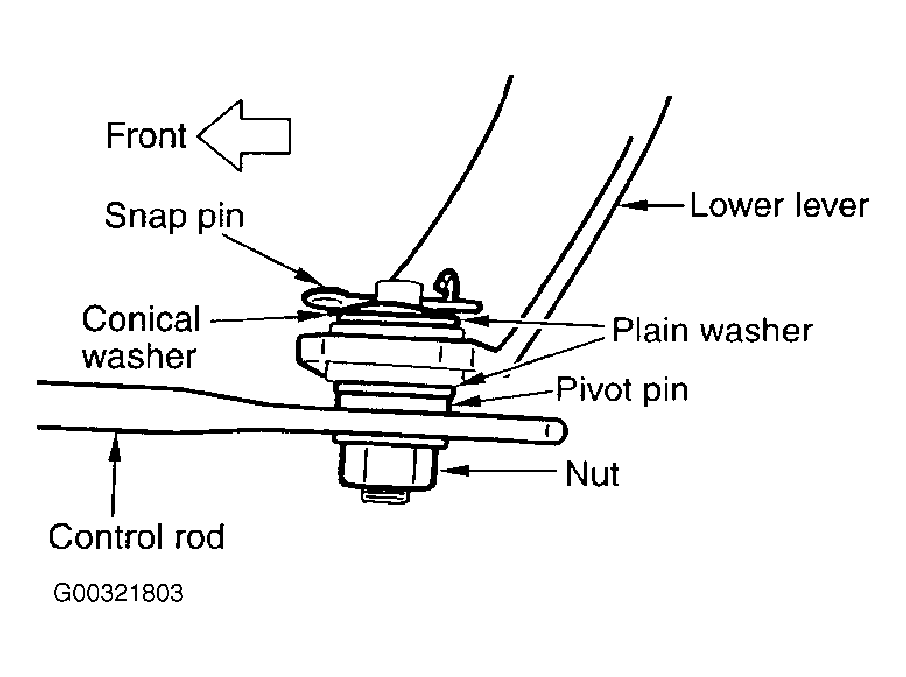

    Fig 1: Adjusting Selector Lever
    G00321803Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Place PNP switch and selector lever in "P" position.
  3. While pressing lower lever toward rear of vehicle (in "P" position direction), tighten nut to specification. See TORQUE SPECIFICATIONS .
