Assembly (2)

CAUTION: When replacing the control valve assembly, erase EEP ROM in TCM. Refer to " PRECAUTIONS FOR TCM, A/T ASSEMBLY AND CONTROL VALVE ASSEMBLY REPLACEMENT " .

Install O-ring in oil pump assembly.

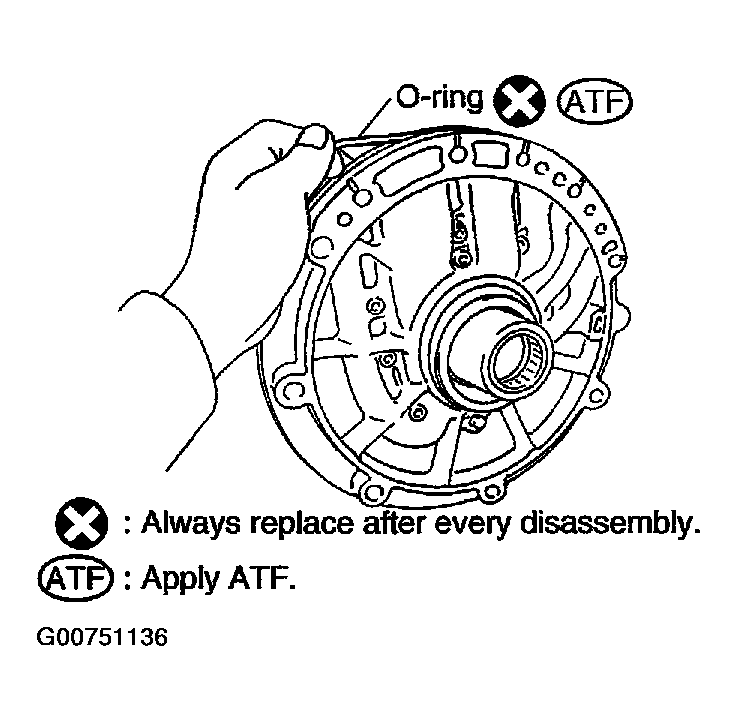

Fig 1: Installing Oil Pump Assembly "O" Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Install bearing race in oil pump assembly.
CAUTION: Apply petroleum jelly to bearing race.
Install oil pump assembly in transmission case.
CAUTION: Apply ATF to oil pump bearing.

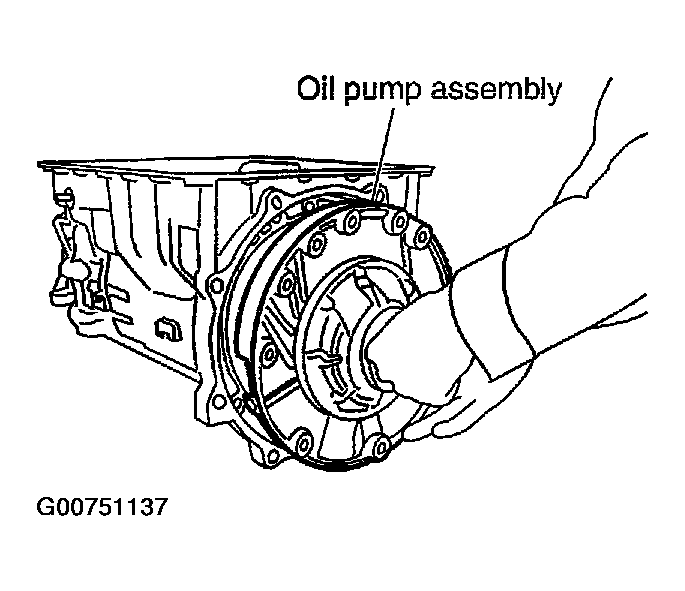

Fig 2: Installing Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply recommended sealant (Genuine RTV silicone sealant or equivalent. Refer to "Recommended Chemical Products and Sealants". ) to oil pump assembly as shown in illustration.
CAUTION: Complete remove all moisture, oil and old sealant, etc. From the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.

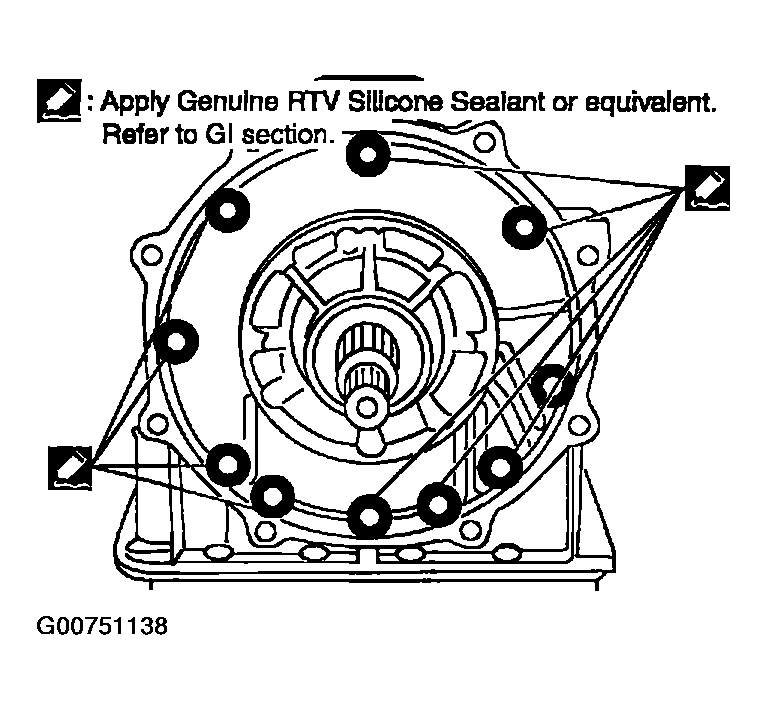

Fig 3: Identifying Rtv Silicone Sealant Application Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten oil pump mounting bolts to specified torque. Refer to " COMPONENTS ".
CAUTION: Apply ATF to oil pump bushing.

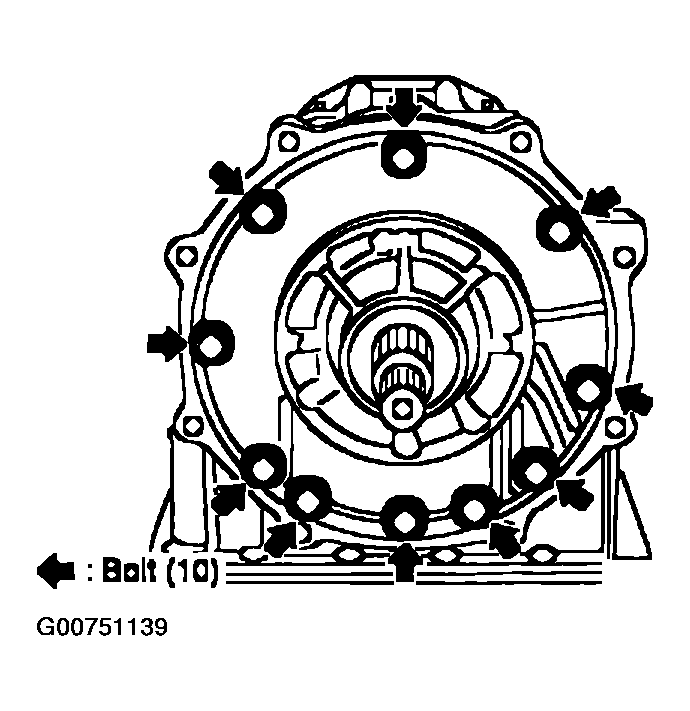

Fig 4: Locating Install Oil Pump Assembly Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring in input shaft.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

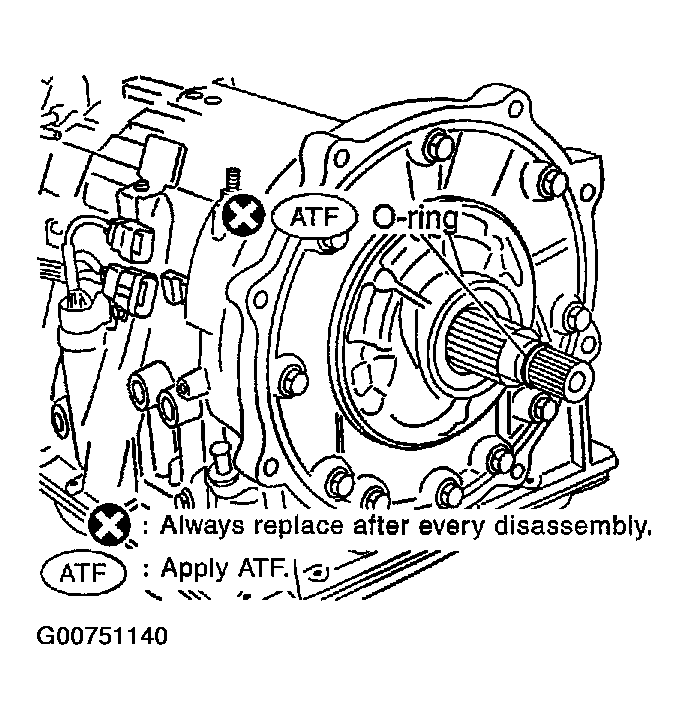

Fig 5: Identifying Input Shaft "O" Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install converter housing in transmission case.
CAUTION: Do not reuse self-sealing bolt.
1. Converter housing mounting bolt:52 N.m (5.3 kg-m, 38 ft-lb)
2. Self-sealing bolt:61 N.m (6.2 kg-m, 45 ft-lb)

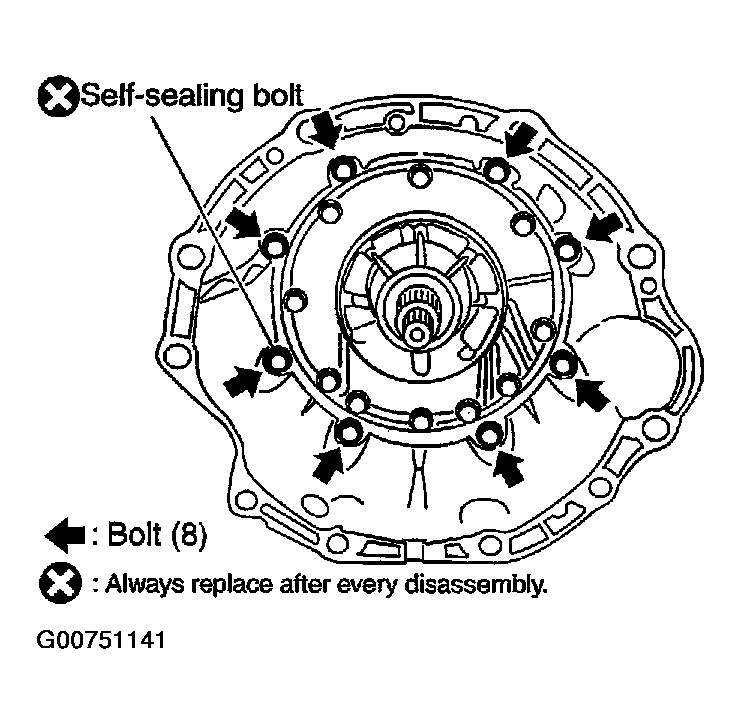

Fig 6: Identifying Torque Converter Housing Mounting Bolts (With Note)
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that brake band does not close turbine revolution sensor hole.

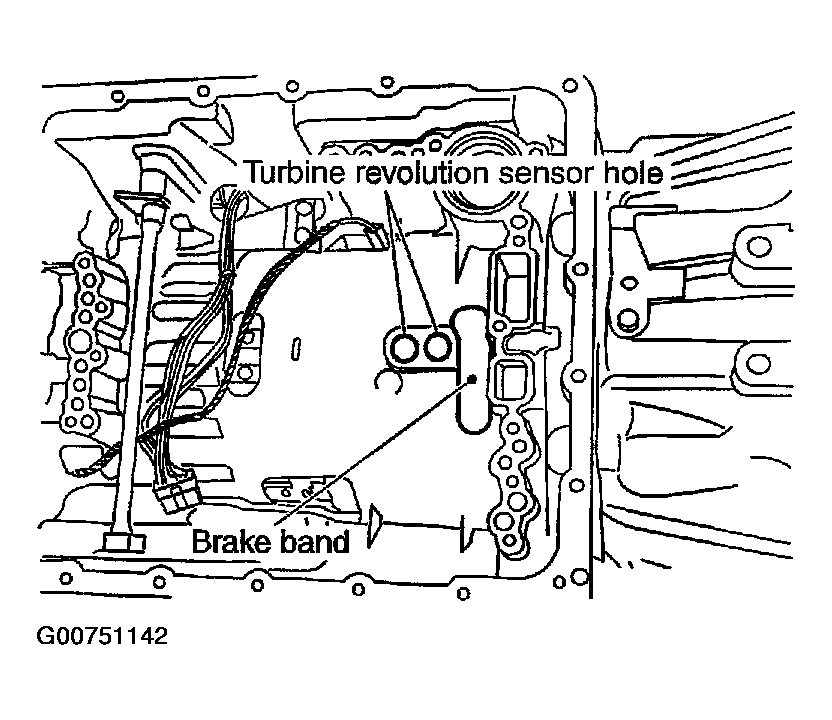

Fig 7: Locating Turbine Sensor Hole & Brake Band
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 in bracket.

Fig 8: Identifying A/T Fluid Temperature Sensor 2 & Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 in control valve assembly. (With bracket.)

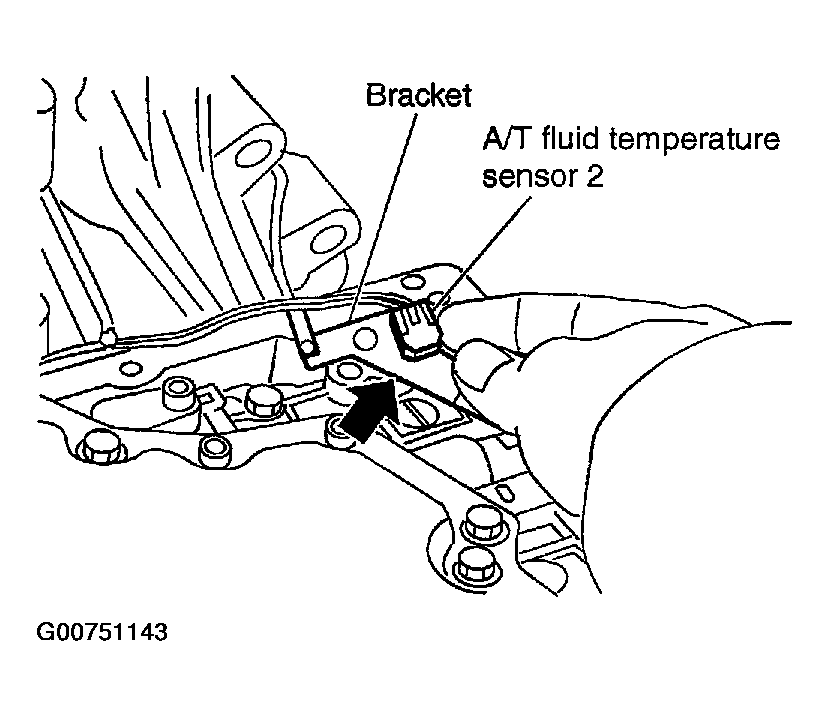

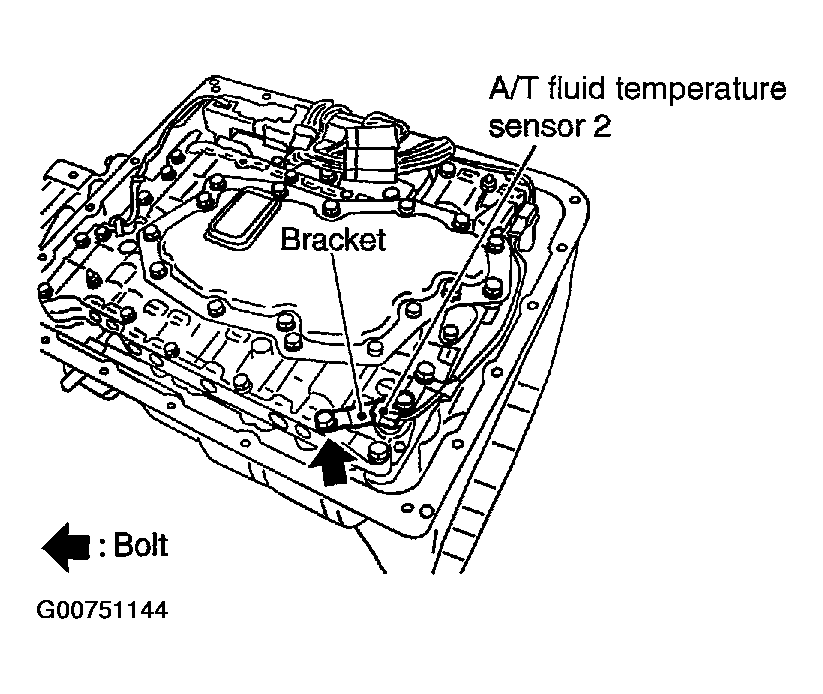

Fig 9: Installing A/T Fluid Temperature Sensor 2 & Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve assembly.
1. Install control valve assembly in transmission case.

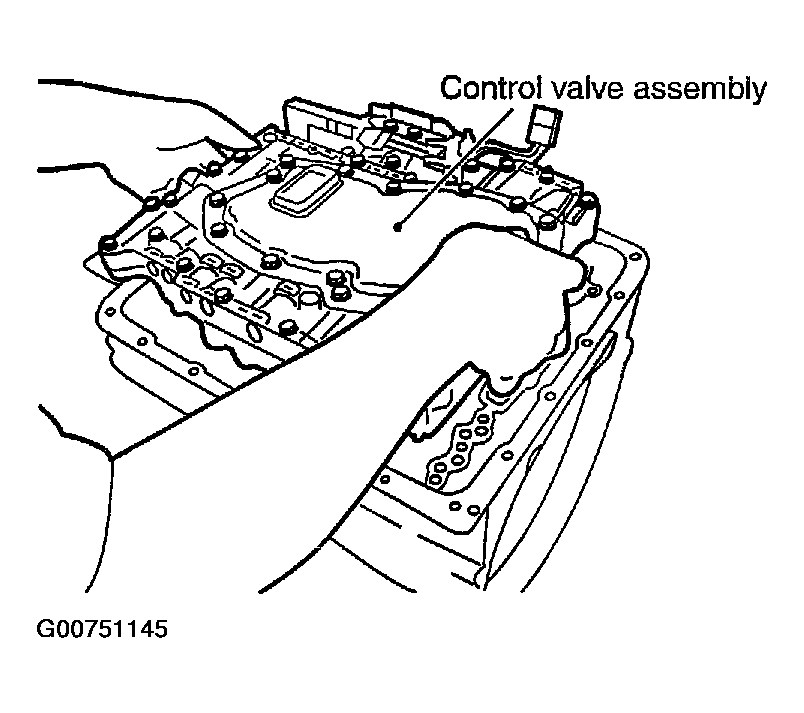

  Fig 10: Removing & Installing Control Valve Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION:
  - Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
  - Make sure that turbine sensor securely installs turbine sensor hole.
  - Assemble it so that manual valve cutout is engaged with manual plate projection.

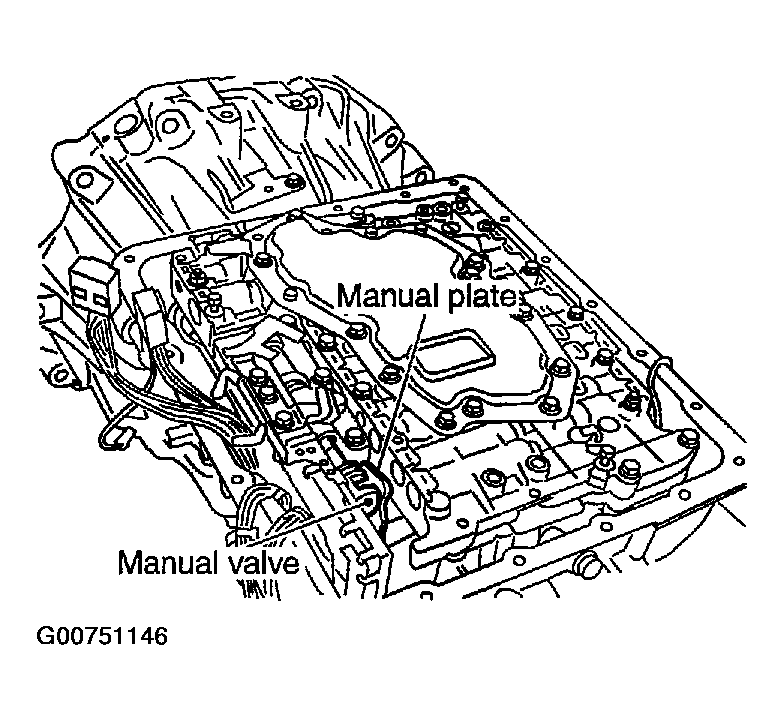

  Fig 11: Locating Manual Plate & Manual Valve
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install bolts A, B and C in control valve assembly.

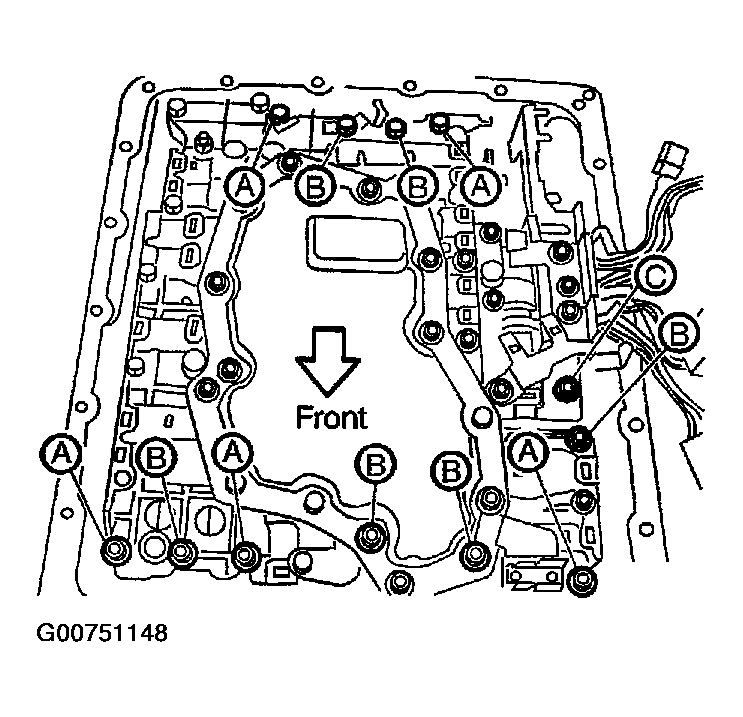

  Fig 12: Locating Control Valve Assembly Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

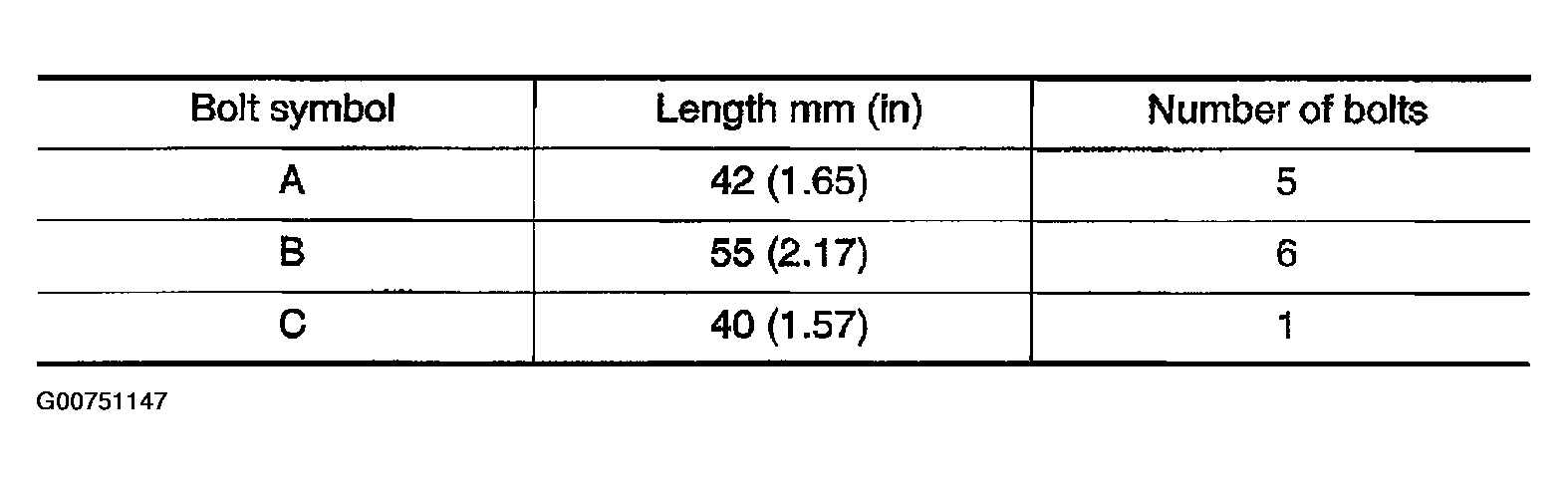

  Fig 13: Control Valve Assembly Bolt Legend
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 2 3), and then tighten other bolts.
  1. :7.9 N.m (0.81 kg-m, 70 in-lb)

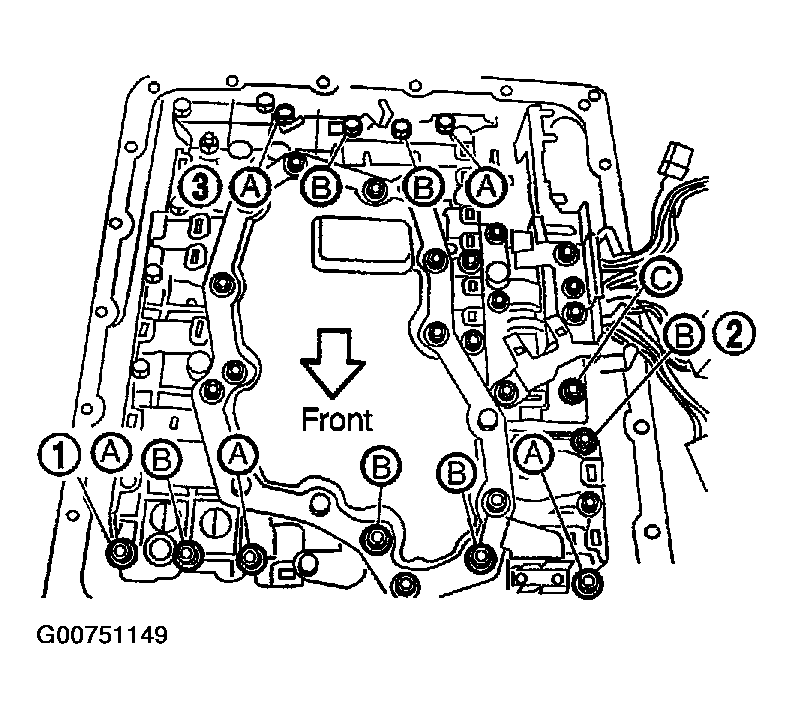

Fig 14: Locating Bolts 1, 2 & 3
Courtesy of NISSAN MOTOR CO., U.S.A.
Install terminal cord assembly connectors in bracket.

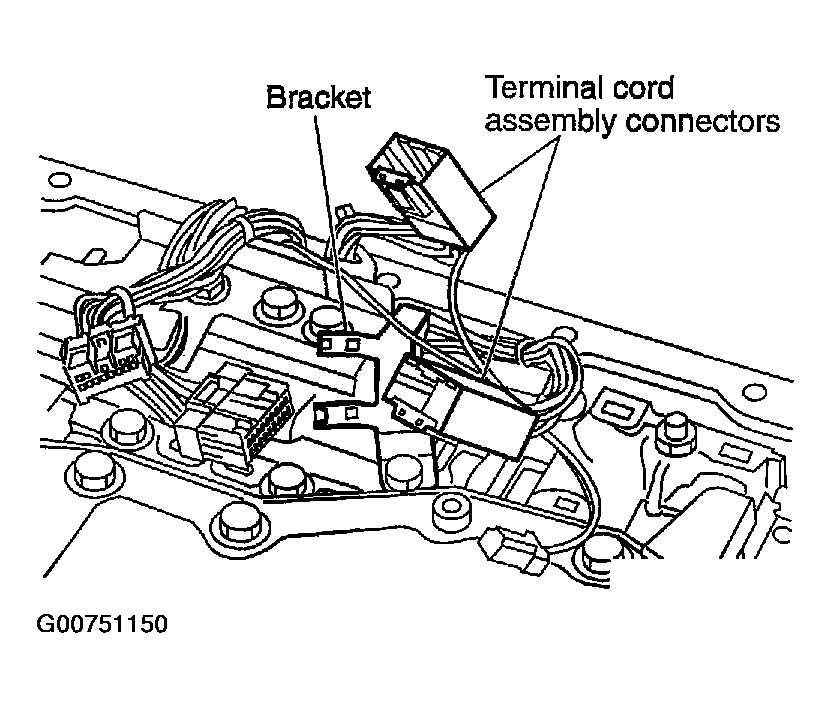

Fig 15: Closeup Cord Connectors & Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect terminal cord assembly connectors.

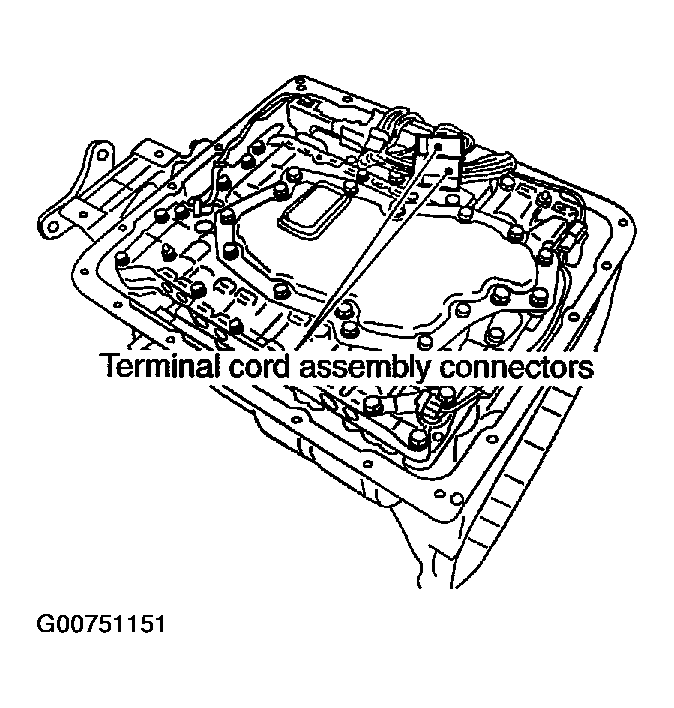

Fig 16: Locating Terminal Cord Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect A/T fluid temperature sensor 2 connector.

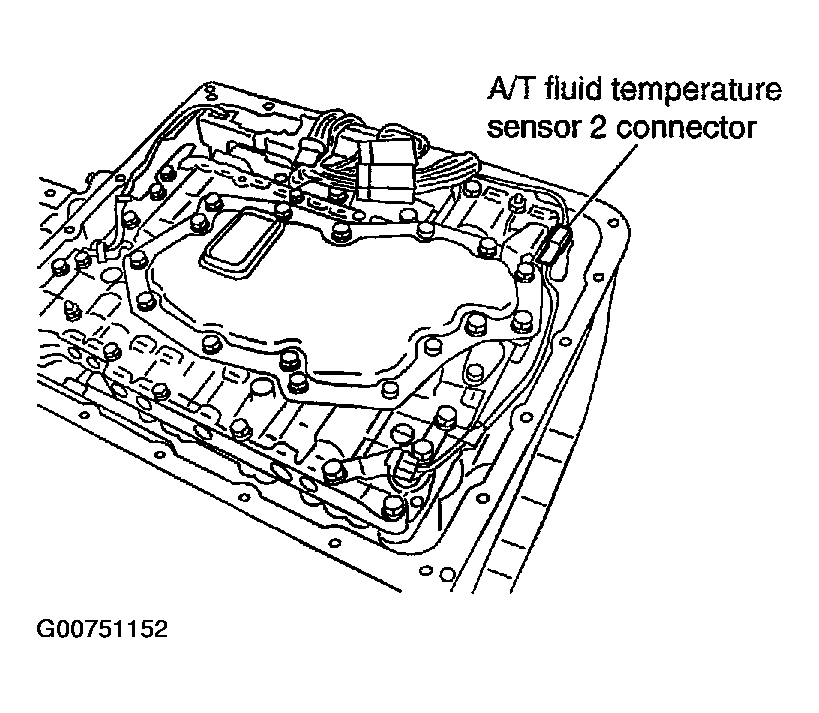

Fig 17: Locating A/T Fluid Temperature Sensor 2 Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect revolution sensor connector.

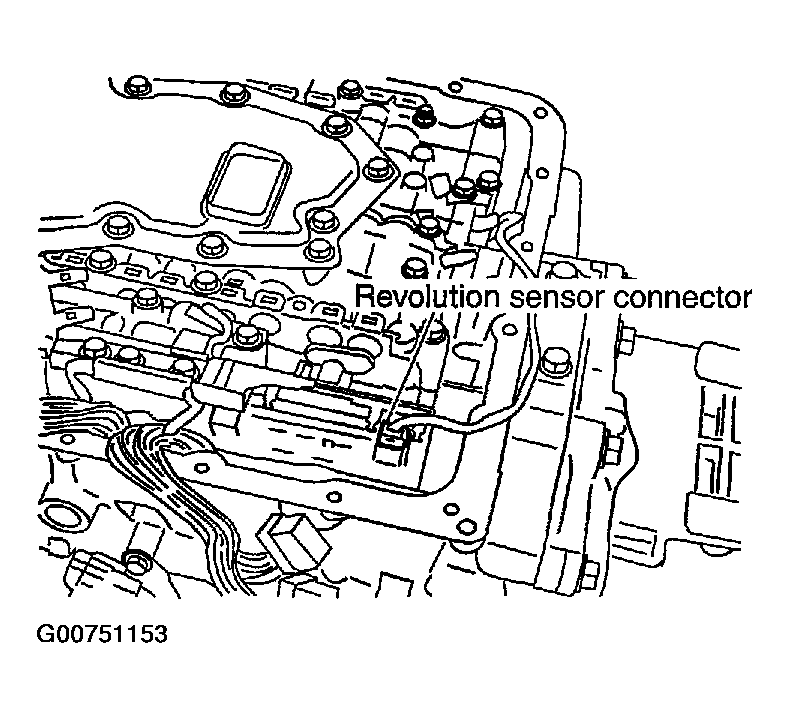

Fig 18: Locating Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Securely fasten terminal harness with terminal clips.

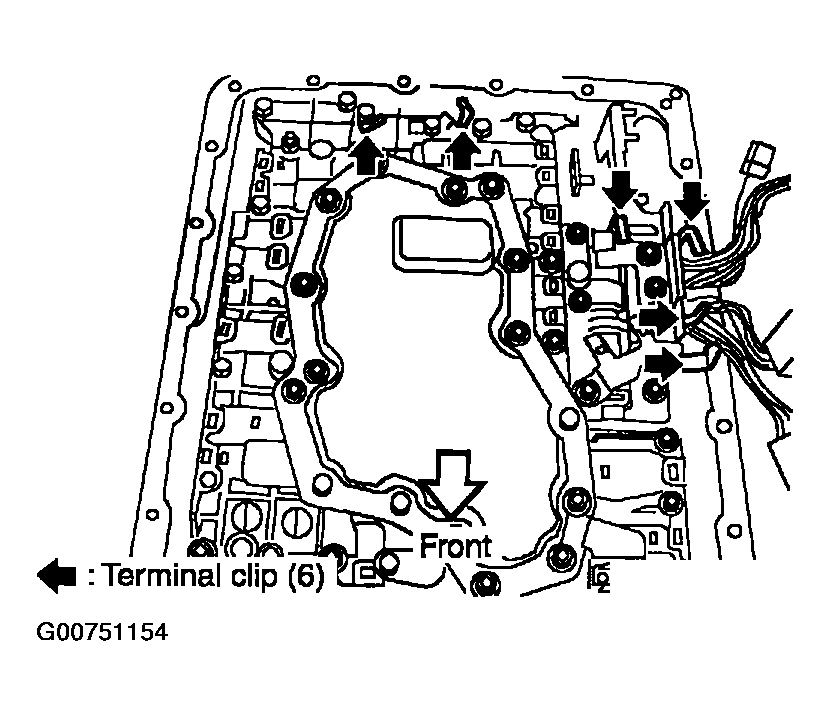

Fig 19: Locating Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Install magnets in oil pan.

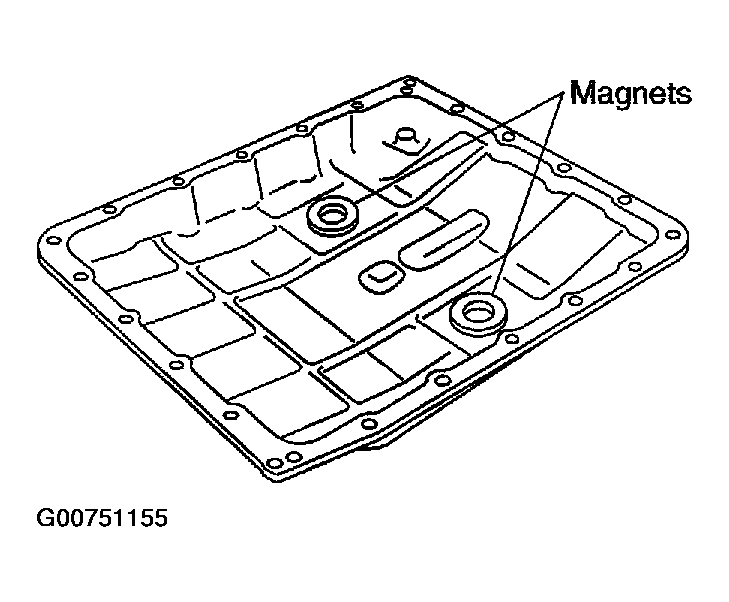

Fig 20: Locating Oil Pan Magnets
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan on transmission case.
1. Install oil pan gasket on transmission case.
  CAUTION:
  - Do not reuse oil pan gasket.
  - Install it in the direction to align hole positions.
2. Install oil pan (with oil pan gasket) to transmission case.
  CAUTION:
  - Install it so that drain plug comes to the position as shown in the figure.
  - Be careful not to pinch harnesses.

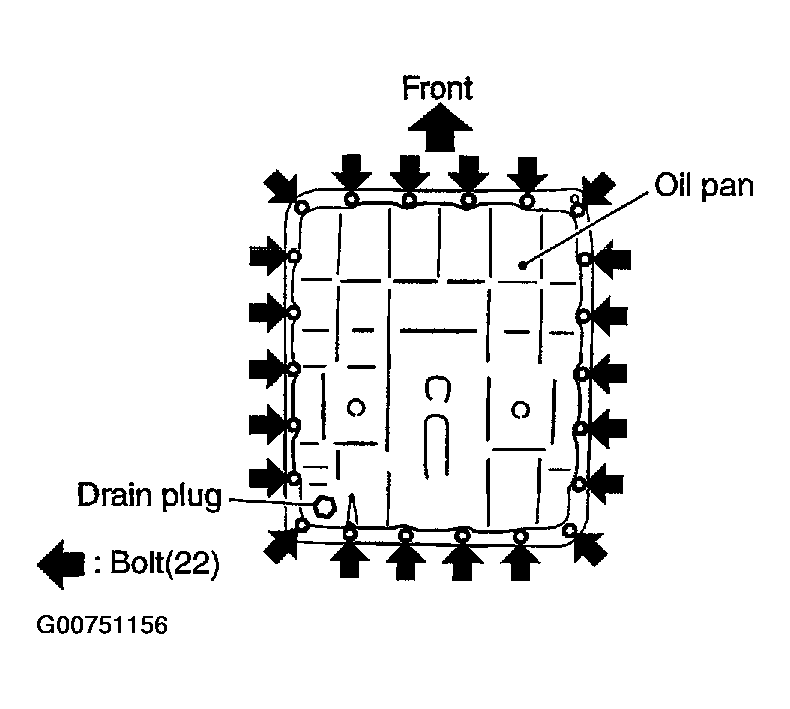

  Fig 21: Locating Oil Pan Bolts & Drain Plug
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
  CAUTION: Do not reuse oil pan mounting bolts.

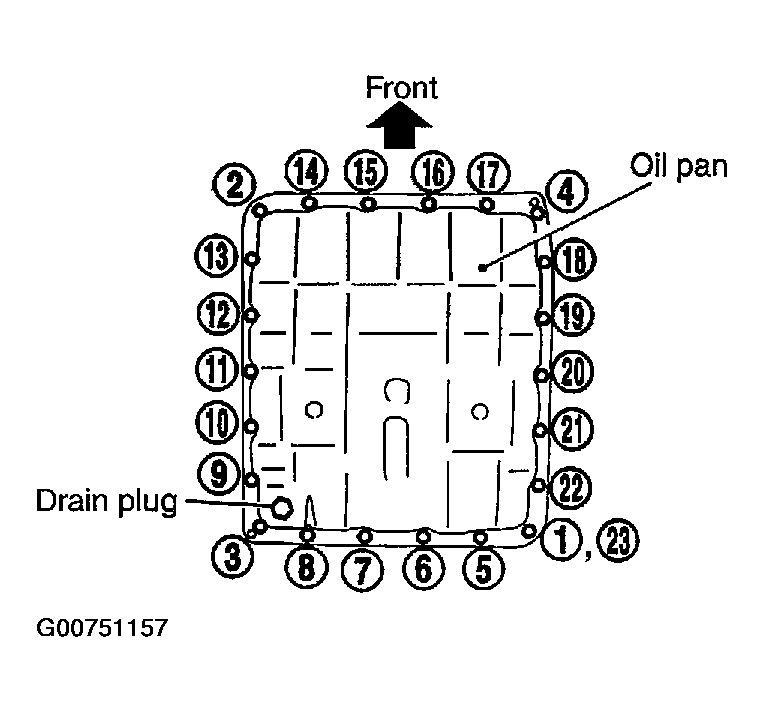

  Fig 22: Identifying Oil Pan Bolt Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drain plug in oil pan.
CAUTION: Do not reuse drain plug gasket.
1. :34 N.m (3.5 kg-m, 25 ft-lb)
Install torque converter.
1. Pour ATF into torque converter.
  - Approximately 2 liter (2-1/8 US qt, 1-3/4 lmp qt) of fluid is required for a new torque converter.
  - When reusing old torque converter, add the same amount of fluid as was drained.

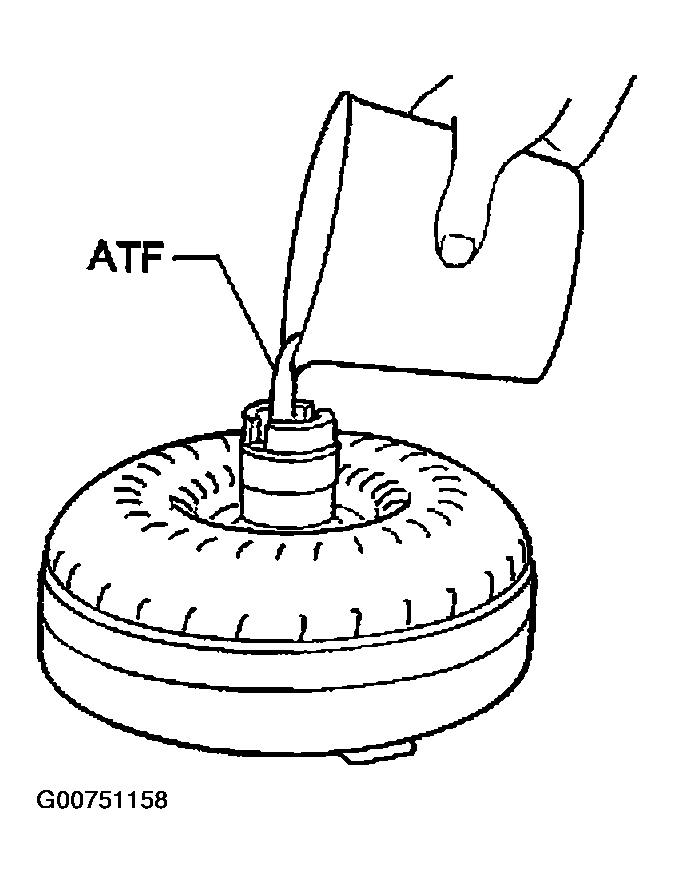

  Fig 23: Priming Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install torque converter while aligning notches of torque converter with notches of oil pump.

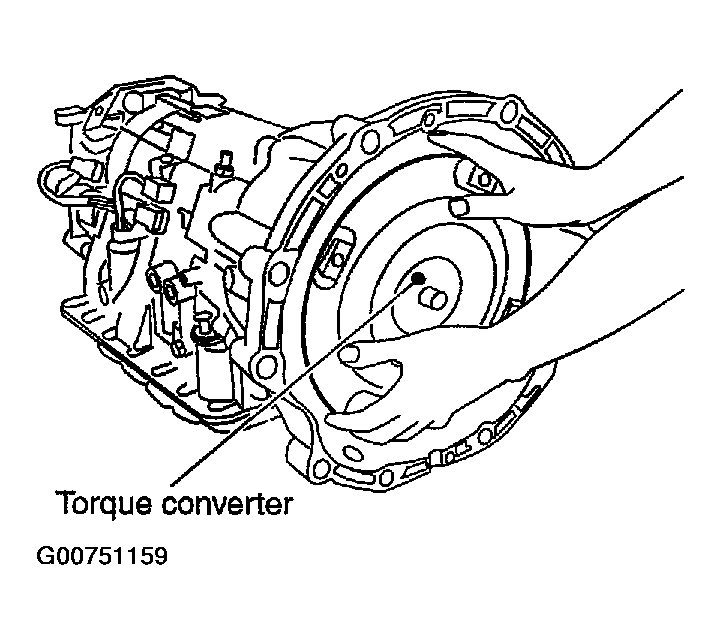

  Fig 24: Removing & Installing Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Measure distance "A" to check that torque converter is in proper position.
  1. Distance "A" :22.0 mm (0.87 in) or more

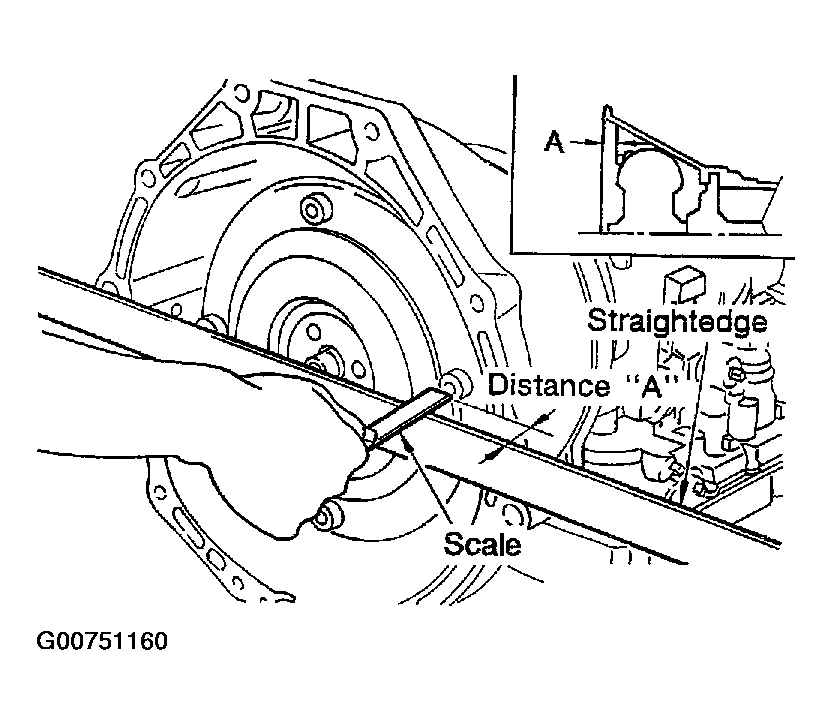

  Fig 25: Measuring Distance "A"
  Courtesy of NISSAN MOTOR CO., U.S.A.
