Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Circuit Breaker - 2 (M82) | Behind left side of dash. See Figure. |
| Fuse Block (J/B) | Right side of dash. See Figure. |

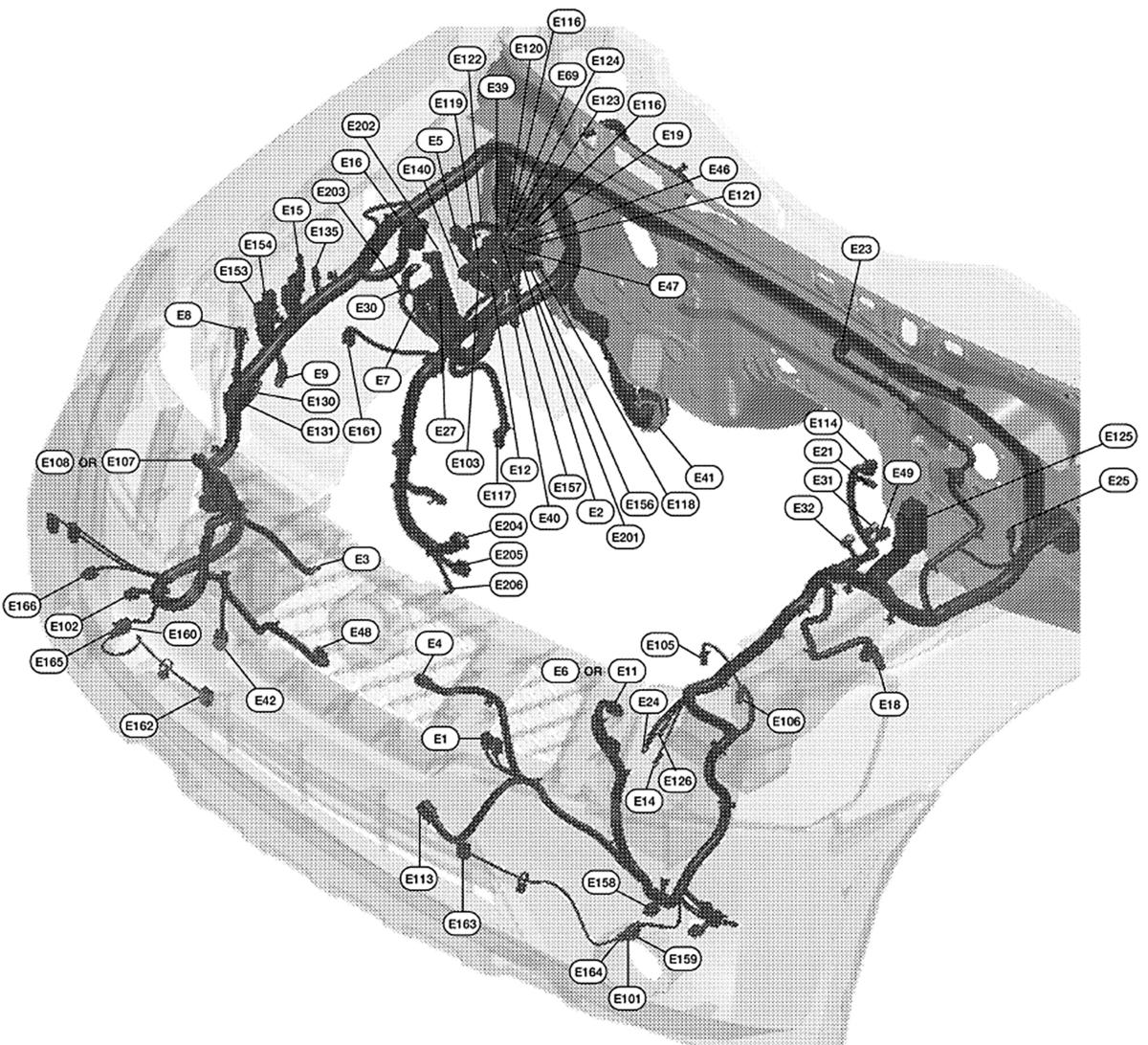

| Fuse & Fusible Link Box | Right rear of engine compartment. See Figure. |
| Fuse & Relay Box | Right rear corner of engine compartment. See Figure. |
| Fusible Link Box (Battery) (E7) | Right side of engine compartment. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) | Right rear corner of engine compartment. See Figure. |
