Transfer Fluid: Refilling

Remove filler plug (1) and gasket. Then fill fluid up to mounting hole for the filler plug.
Fluid and viscosity: Refer to "FOR NORTH AMERICA: FLUIDS AND LUBRICANTS ".

Fluid capacity: Refer to "GENERAL SPECIFICATIONS ".

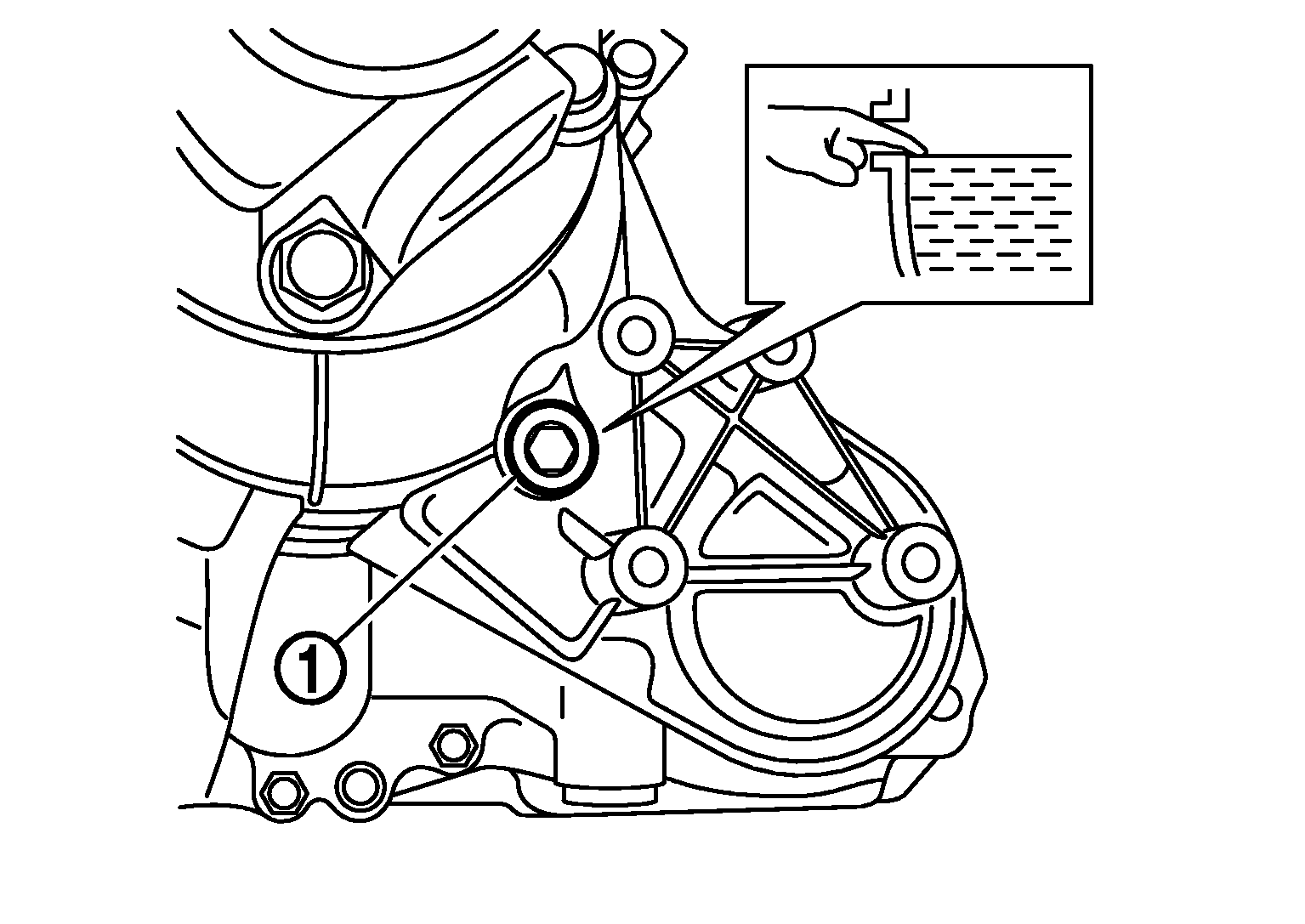

Fig 1: Checking Fluid Level
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Carefully fill the fluid. (Fill up for approximately 3 minutes.)
Leave the vehicle for 3 minutes, and check the fluid level again.
Set a new gasket onto filler plug, and install it on transfer and tighten to the specified torque. Refer to "EXPLODED VIEW ".
CAUTION: Never reuse gasket.
