Repair and Diagnosis: Electrical: Starter: Overhaul

For overhaul procedure, see appropriate exploded view of starter.See Fig 1 or Fig 2 .

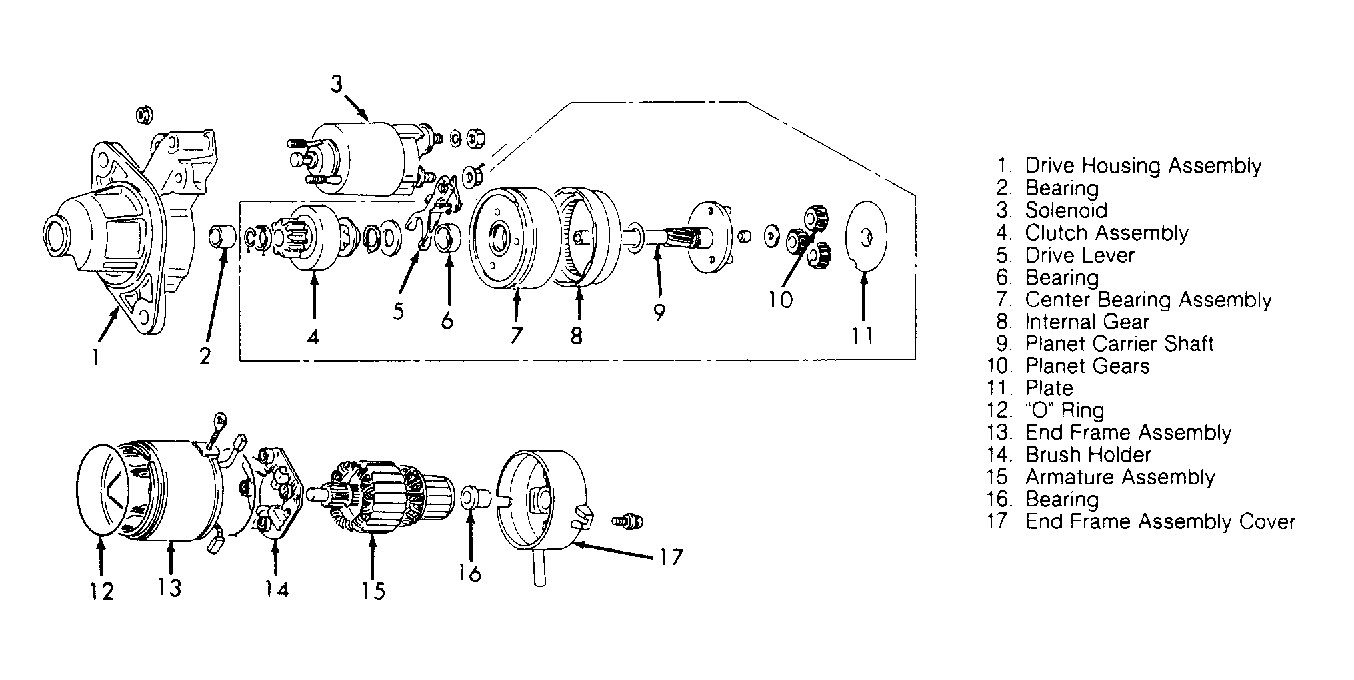

Fig 1: Exploded View Of Starter (Except 1.6L M/T)

Courtesy of ISUZU MOTOR CO.

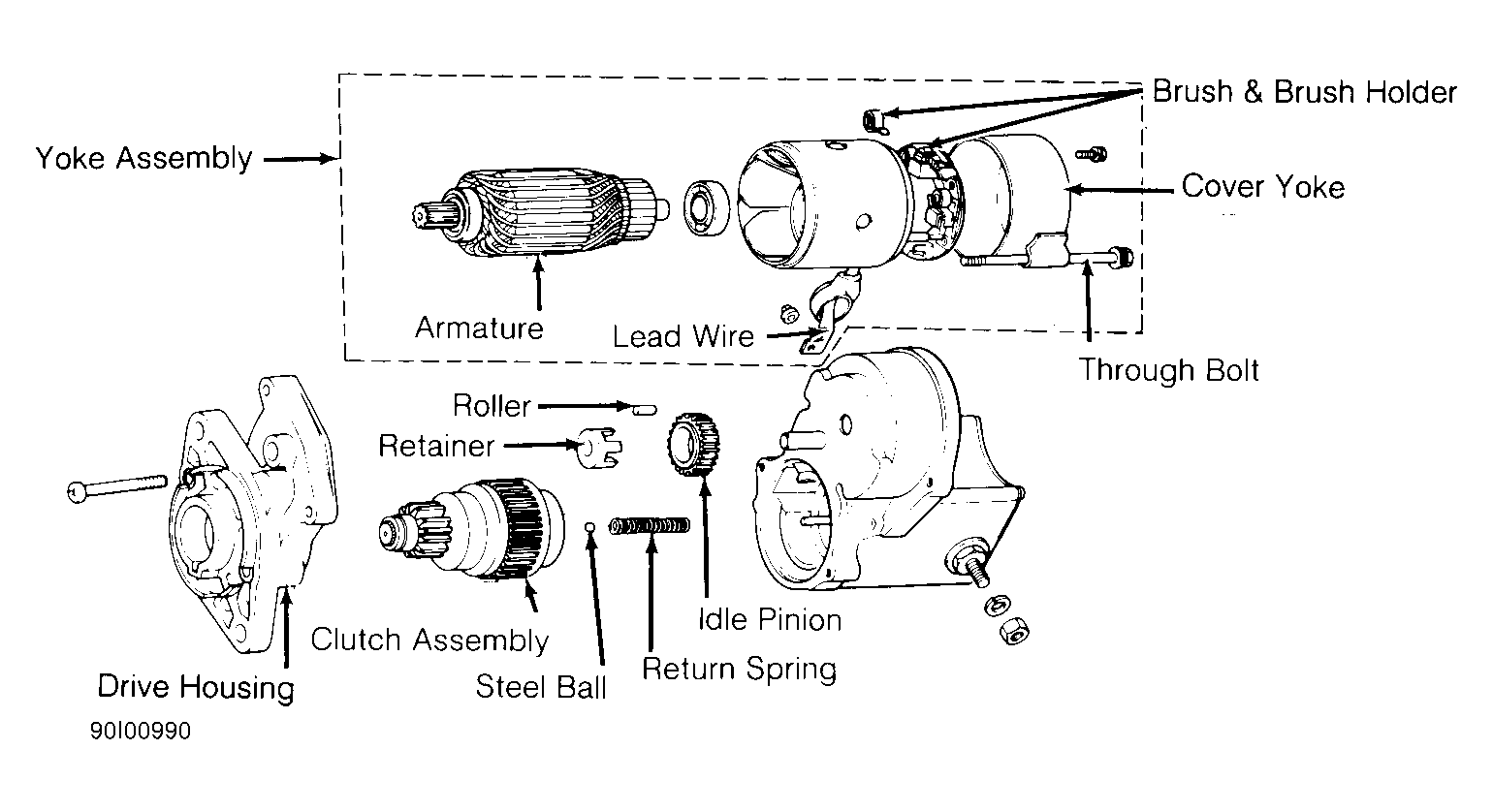

Fig 2: Exploded View Of Starter (1.6L M/T)

Courtesy of ISUZU MOTOR CO.
