Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

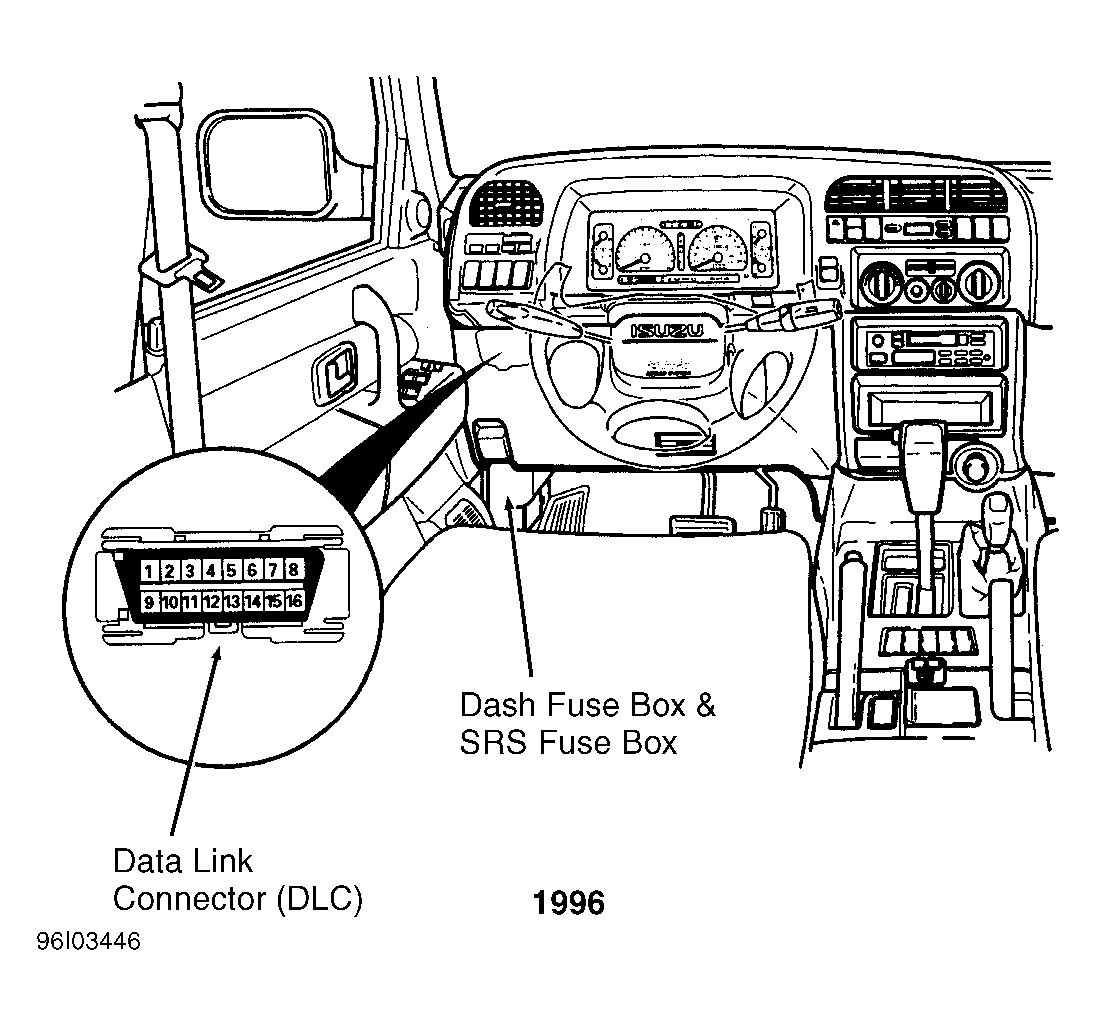

| Dash Fuse Box (1996) | Behind left kick panel. See Figure . |
| Dash Fuse Box (DOHC) (1995) | Behind left kick panel. See Figure . |
| Dash Fuse Box (SOHC) (1995) | Behind left kick panel. See Figure . |
| Diode Box No. 1 | Behind left Kick panel, on dash fuse box. |
| Diode Box No. 2 | Behind left Kick panel, on dash fuse box. |
| Diode Box No. 3 | Behind left Kick panel, on dash fuse box. |
| Diode Box No. 6 | Behind left Kick panel, on dash fuse box. |
| Diode Box B | Right side of engine compartment, in fuse/relay box. |
| Fuse/Relay Box (1996) | Right side of engine compartment. See Figure . |
| Fuse/Relay Box (DOHC) (1995) | Right side of engine compartment. See Figure . |
| Fuse/Relay Box (SOHC) (1995) | Right side of engine compartment. See Figure . |
| SRS Fuse Box | Left kick panel, top of dash fuse box. See Figure . |
