Home >> Isuzu >> 2002 >> Axiom Base, RWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generators & Regulators >> Overhaul >> Generator >> Notes

Generators & Regulators: Overhaul: Generator: Notes

NOTE: Use exploded view of generator for overhaul. See Fig 1 .

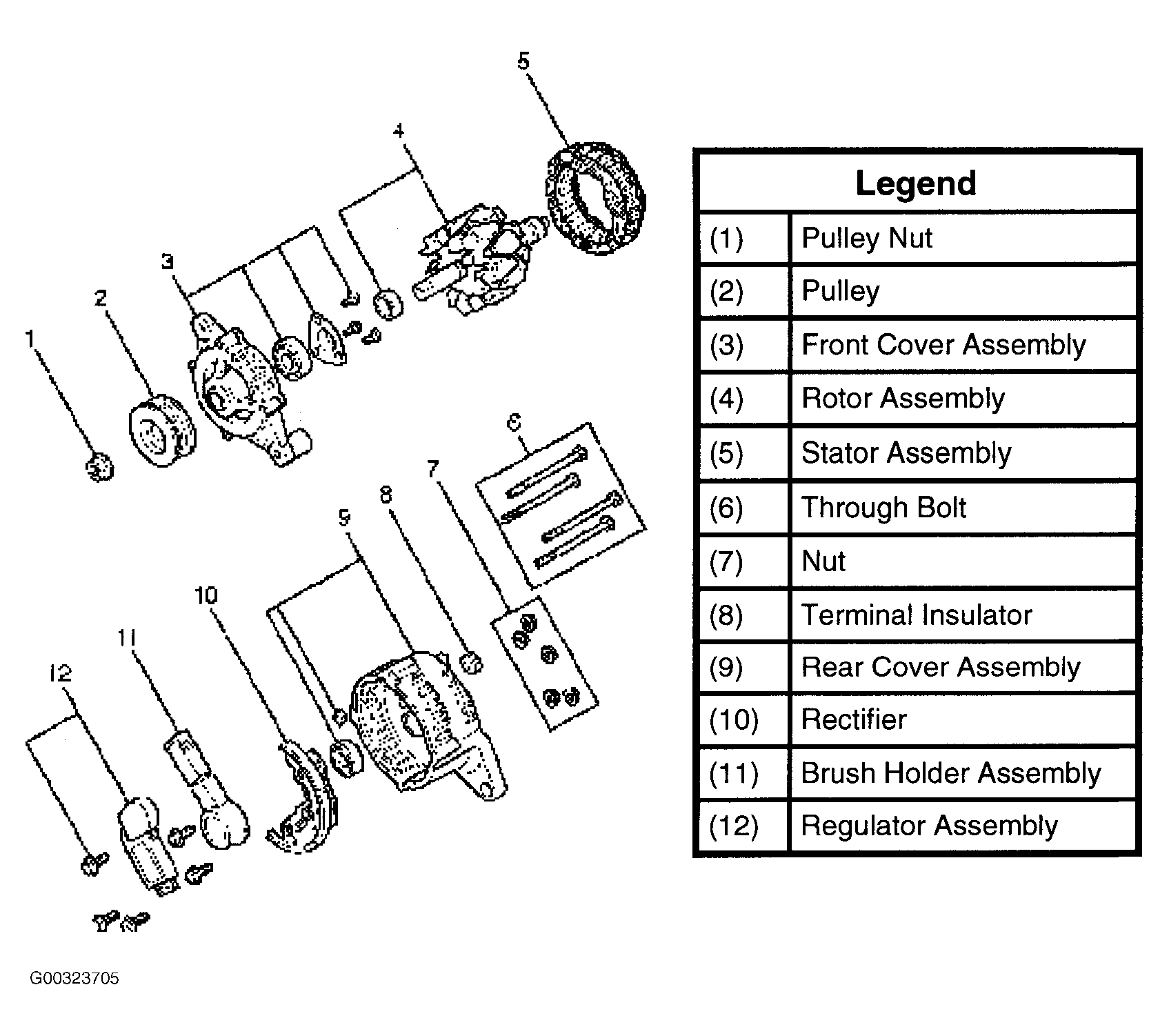

Fig 1: Exploded View Of Generator

G00323705

Courtesy of ISUZU MOTOR CO.
