Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

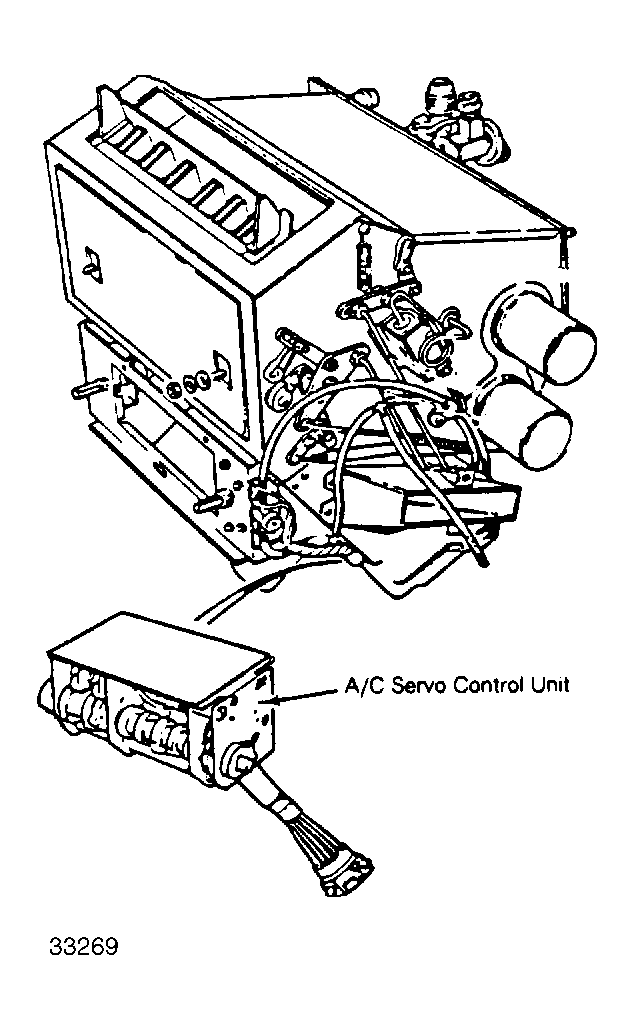

| A/C Servo Control Unit | On lower left corner of A/C assembly. See Figure . |
| Audio Warning Control Unit | Behind glove box. |
| Bulb Check Unit | Under left side of instrument panel. |

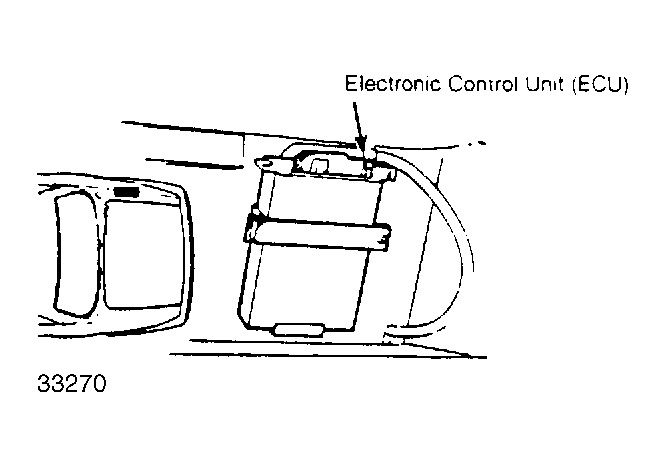

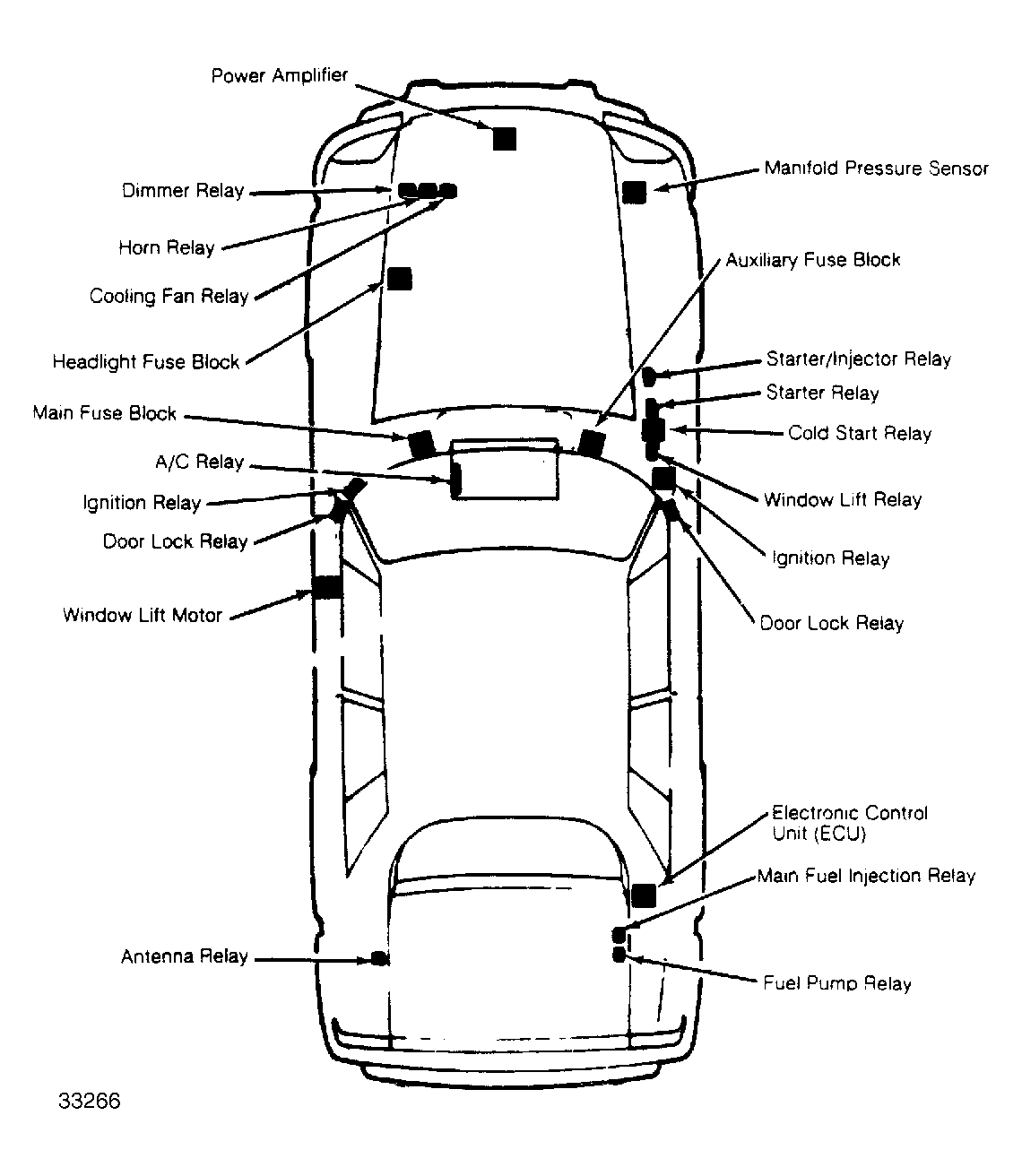

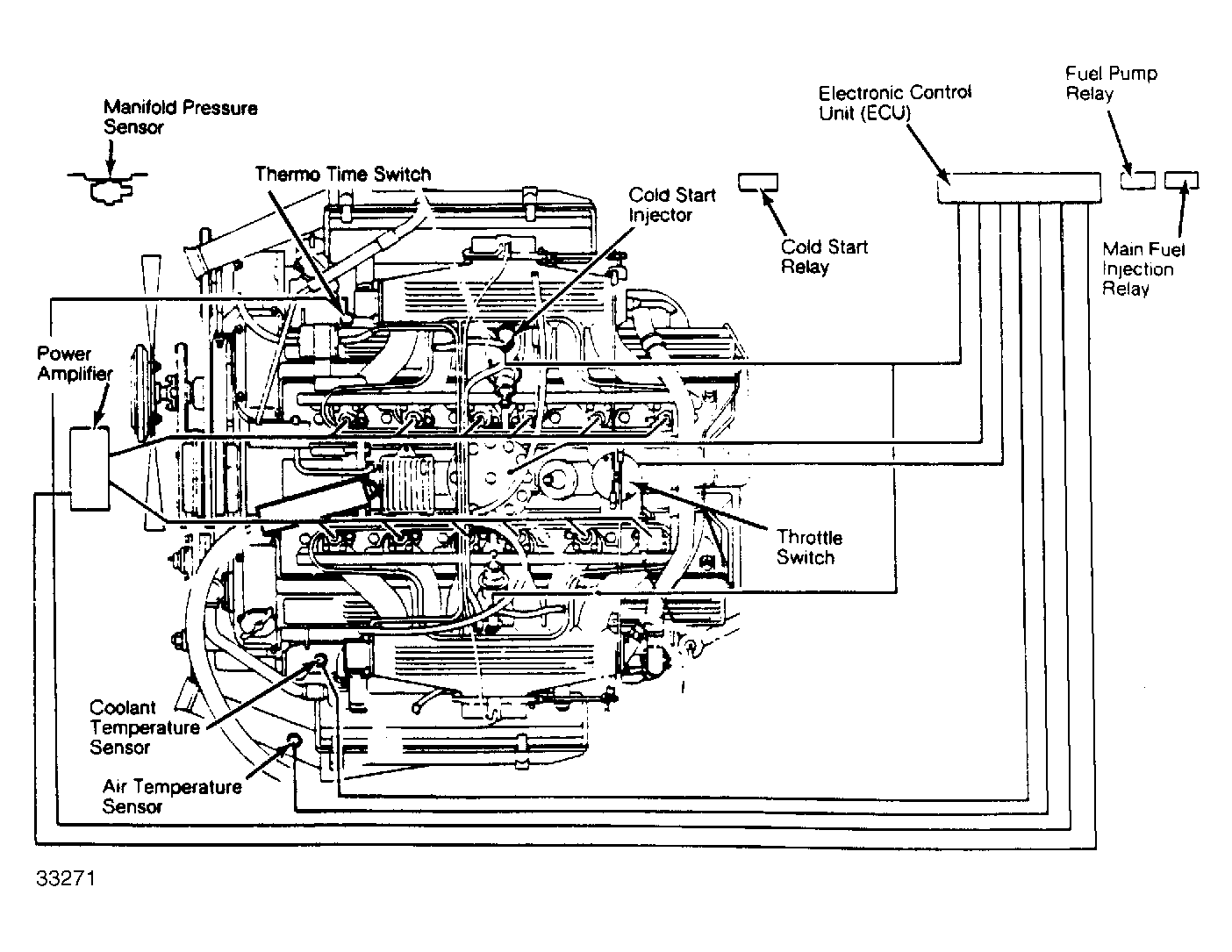

| Electronic Control Unit (ECU) | In right front corner of luggage compartment. See Figure , Figure & Figure . |
| Emission Control Unit | At rear of luggage compartment. |
| Fuel Injection Control Unit | At right side of luggage compartment. |
| Over-Voltage Indicator Unit | Under right side of instrument panel. |
