Component Locations

Component Locations

Component Location
Battery In Luggage Compartment. See Fig 1.
Generator On Right Front Of Engine. See Fig 2
Generator Suppression Module On Right Inner Panel In Engine Compartment, Adjacent To Generator. See Fig 3.
High Power Protection Module In Luggage Compartment. See Fig 4.
Starter Motor On Right Rear Of Engine. See Fig 5.
Fig 1: Locating Battery
G00311053Courtesy of JAGUAR CARS, INC.
Fig 2: Locating Nippondenso Type L3B-HE Generator
G98B03928Courtesy of AUDI OF AMERICA, INC.

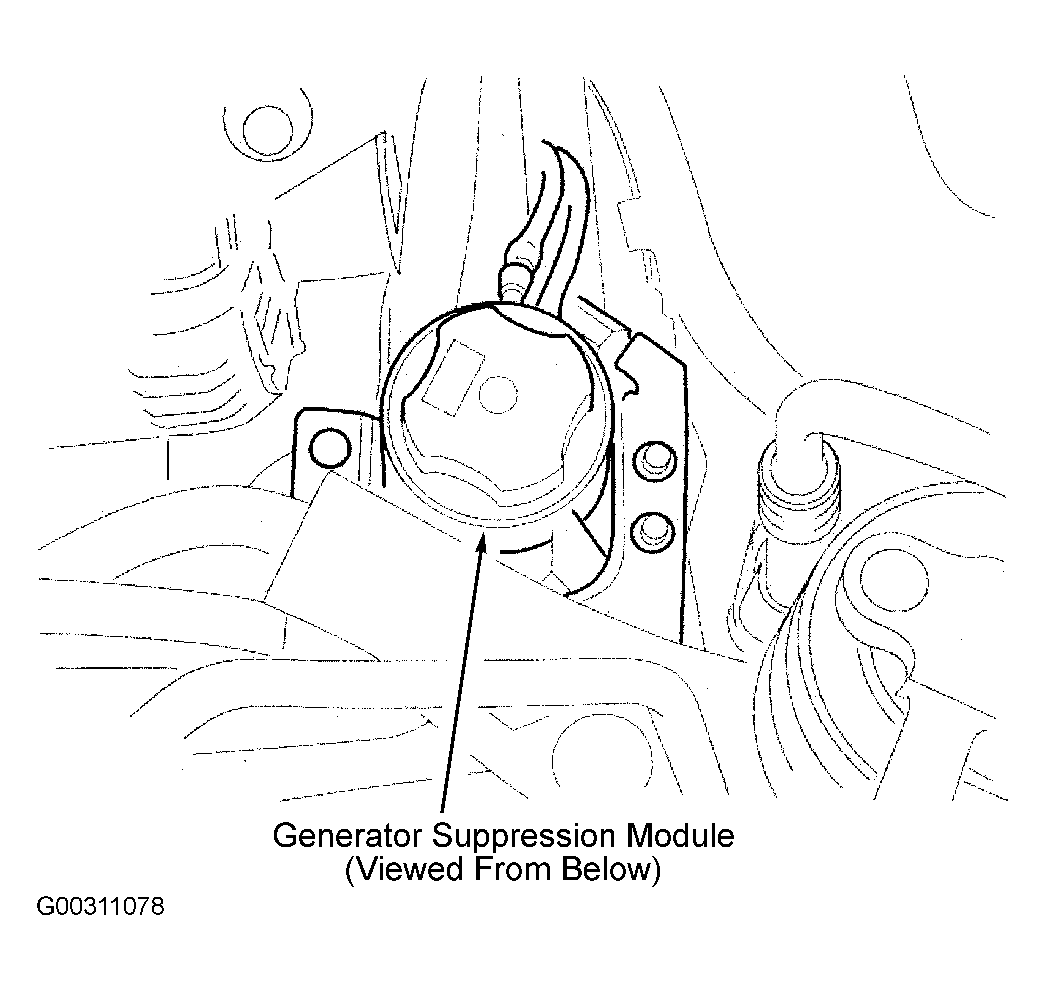

Fig 3: Locating Generator Suppression Module
G00311078Courtesy of JAGUAR CARS, INC.
Fig 4: Locating High Power Protection Module
G00311079Courtesy of JAGUAR CARS, INC.
Fig 5: Locating Starter Motor
G00311052Courtesy of JAGUAR CARS, INC.
