Control Units
CONTROL UNITS LOCATION

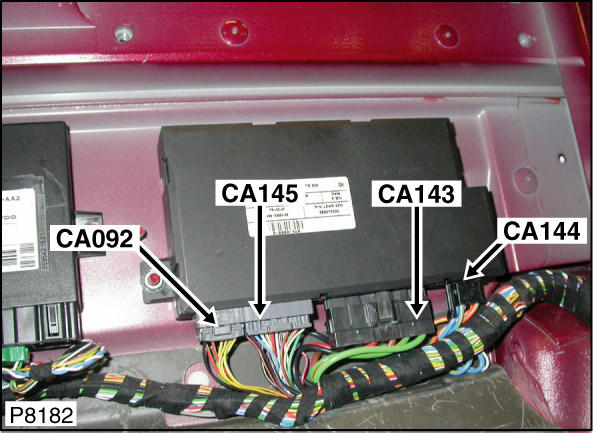

| Component | Location |
|---|---|
| ABS Module (FL012) | Behind left front wheel arch liner. See Figure. |
| Adaptive Damping Module (CA033) | Behind rear seat backrest. See Figure. |
| Automatic Temperature Control ECU (CA112) | Under right end of dash. See Figure. |
| Convertible Top Module (CA092) | Behind rear seat backrest. See Figure. |
| Driver's Door Module (DD003) | In driver's door. See Figure. |
| Driver Seat Module (DS015) | Under driver's seat. See Figure. |
| Electric Throttle Unit (PI303) | Top rear of engine. See Figure. |

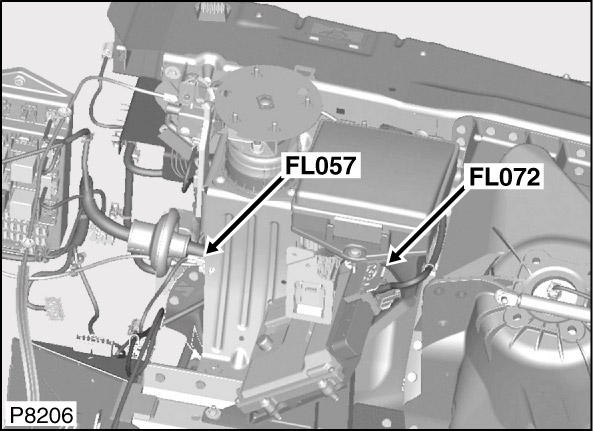

| Engine Control Module (ECM) (FL072) | Left rear of engine compartment. See Figure. |
| Front Blower Motor Control Unit (AC005) | Near blower motor. See Figure. |
| Headlight Leveling Module (FR060) | Behind right kick panel. See Figure. |

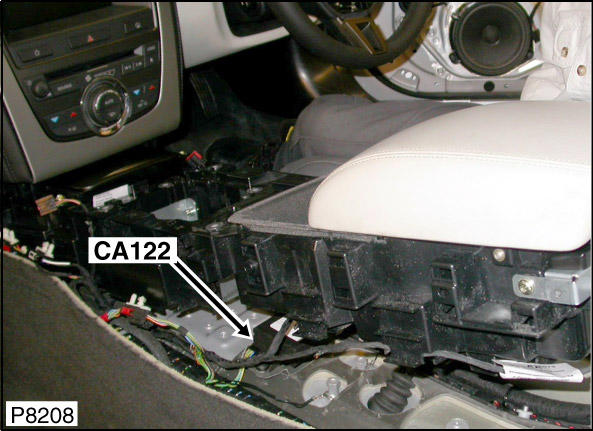

| Intrusion Detection Module (CA122) | Under center console. See Figure. |
| Intrusion Detection Slave Module (CA140) | Under rear seat. See Figure. |
| Keyless Vehicle Module (CA074) | Behind right kick panel. See Figure. |
| Navigation System Module (TM009) | Behind rear seat backrest. See Figure. |
| Parking Aid Module (CA044) | Behind left kick panel. See Figure. |
| Parking Brake Module (CA050) | Behind rear seat backrest. See Figure. |

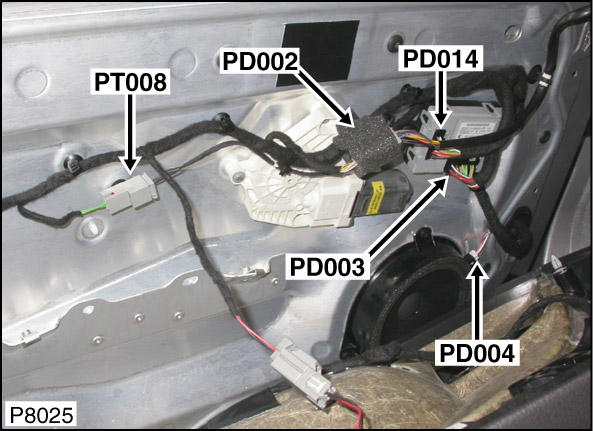

| Passenger Door Module (PD003) | In passenger's door. See Figure. |
| Passenger Seat Module (PS015) | Under front passenger's seat. See Figure. |

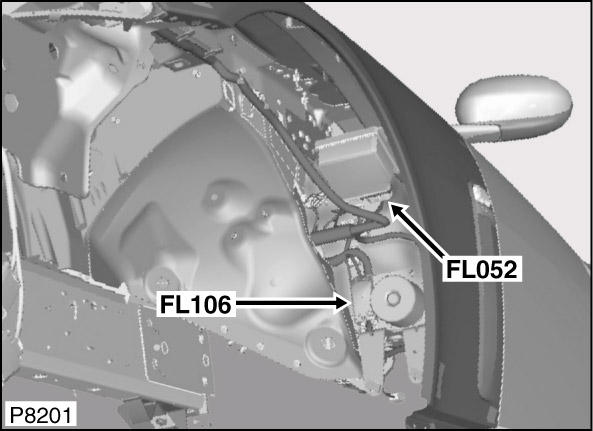

| Pedestrian Protection Module (FL052) | Behind left front wheel arch liner. See Figure. |
| Radio Frequency (RF) Receiver (TM033) | Right side of luggage compartment. See Figure. |
| Restraints Control Module (RCM) (CA068) | Under rear of center console. See Figure. |

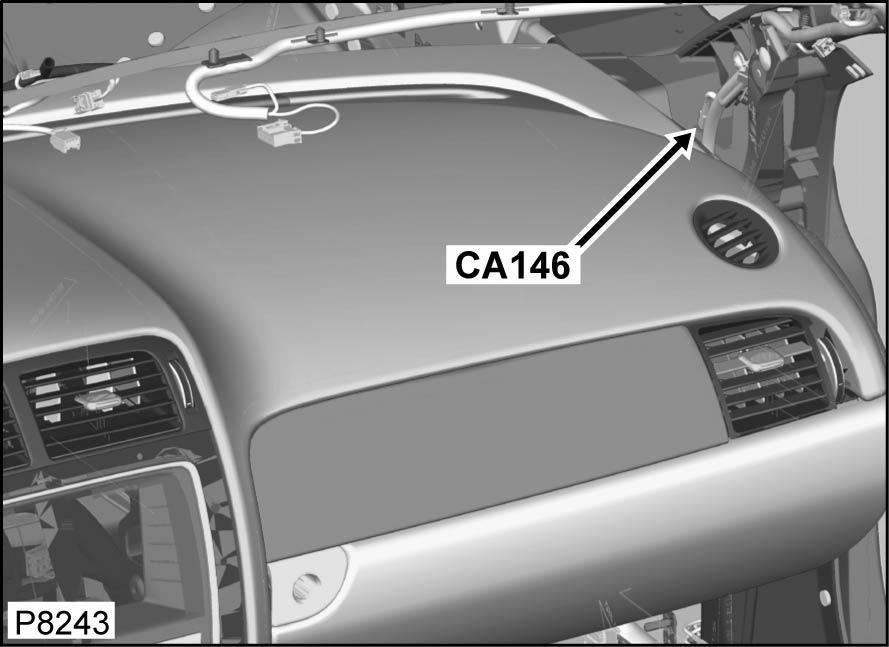

| Road Pricing Module (CA146) | In right "A" pillar. See Figure. |

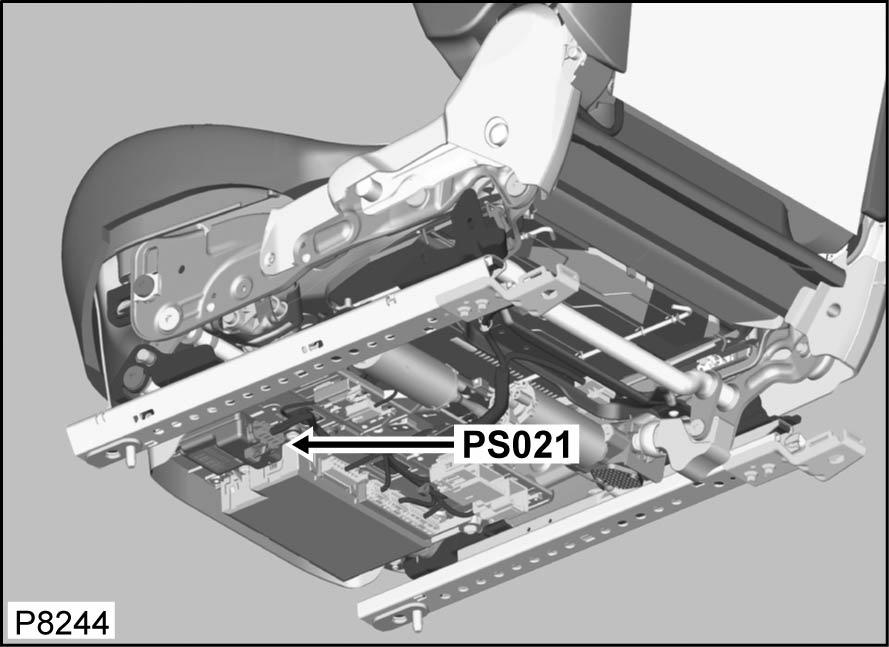

| Seat Occupancy Module (PS021) | Under front passenger's seat. See Figure. |

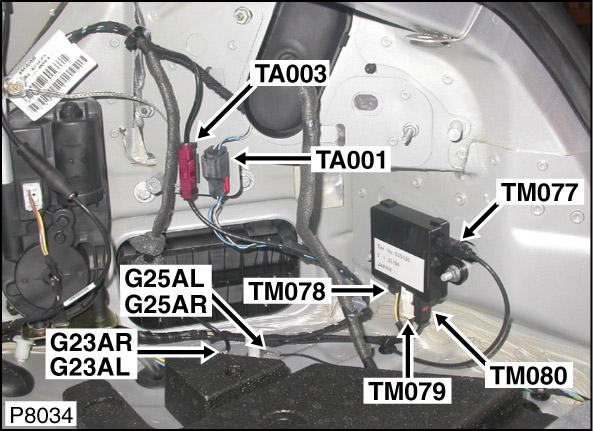

| Signal Splitter Module (TM077) | Right side of luggage compartment. See Figure. |
| Speed Control Module (CA085) | Behind right kick panel. See Figure. |
| Start Control Unit (CC002) | Under center console. See Figure. |

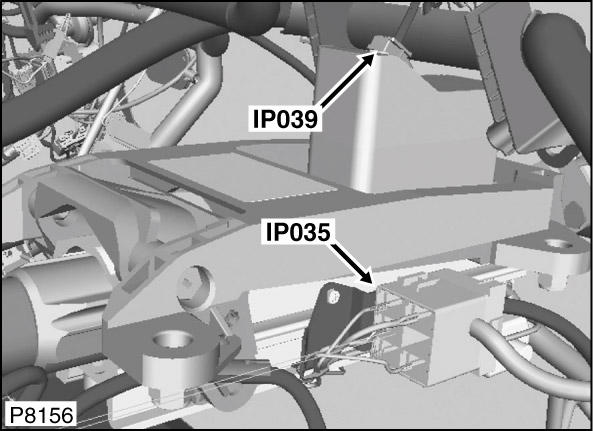

| Steering Column Unit (IP035) | Near base of steering column. See Figure. |
| Steering Lock ECU (IP039) | Near base of steering column. See Figure. |
| Telephone Module (TM021) | Right side of luggage compartment. See Figure. |
| Tire Pressure Monitoring Control Module (CA072) | Behind rear seat backrest. See Figure. |
| Transmission Control Module (GB002) | Right side of transmission. See Figure. |
