Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

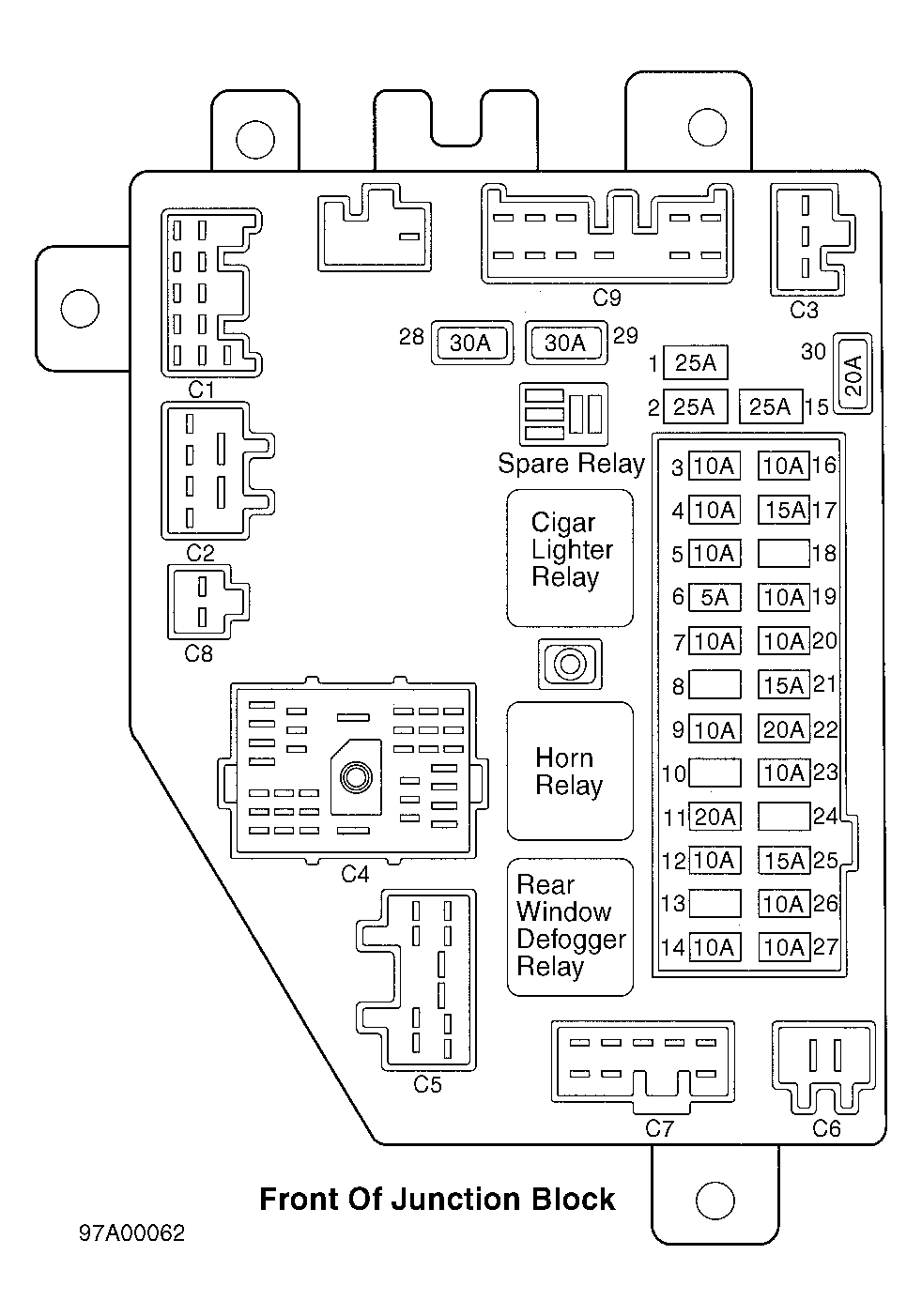

| Junction Block | Under left side of dash. See Figure & Figure. |

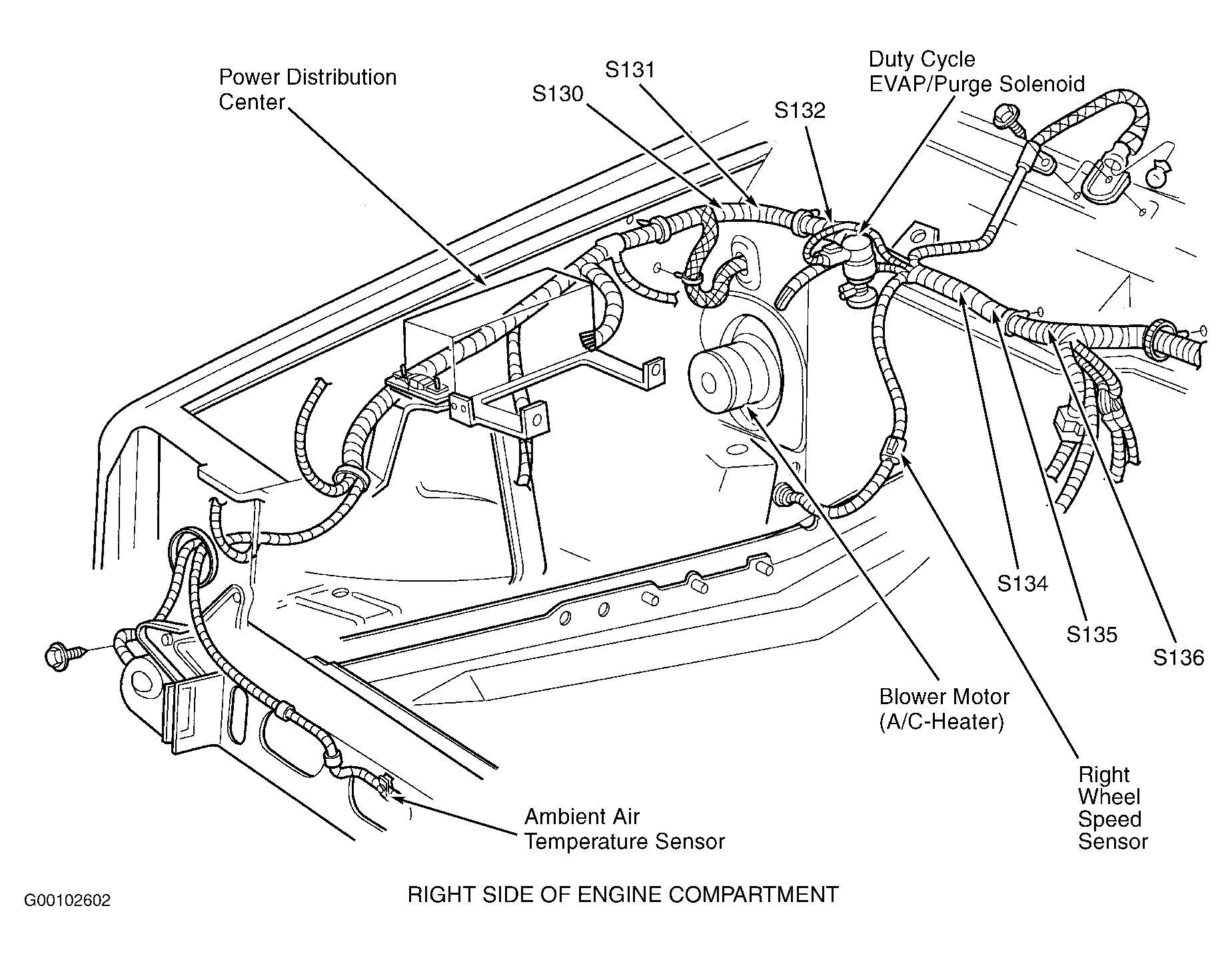

| Power Distribution Center | On right side of engine compartment, on inner fender panel. See Figure. |
| Power Seat Circuit Breaker | In power distribution center. |
| Power Window Circuit Breaker | In power distribution center. |
| Windshield Wiper Circuit Breaker | Internal to wiper motor. |
