Connector Identification
NOTE:

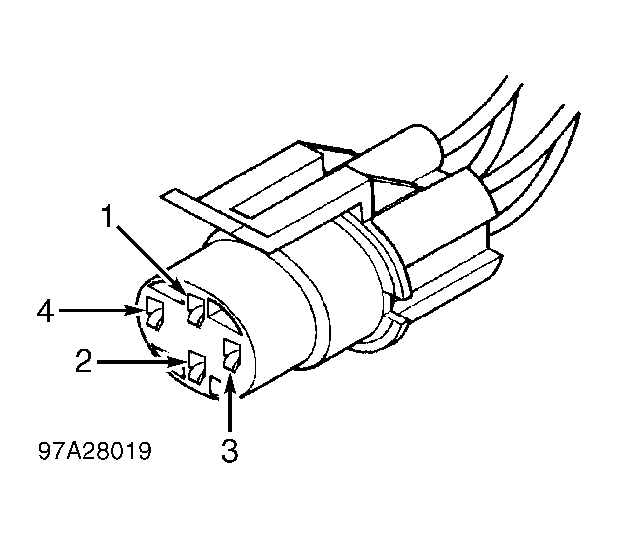

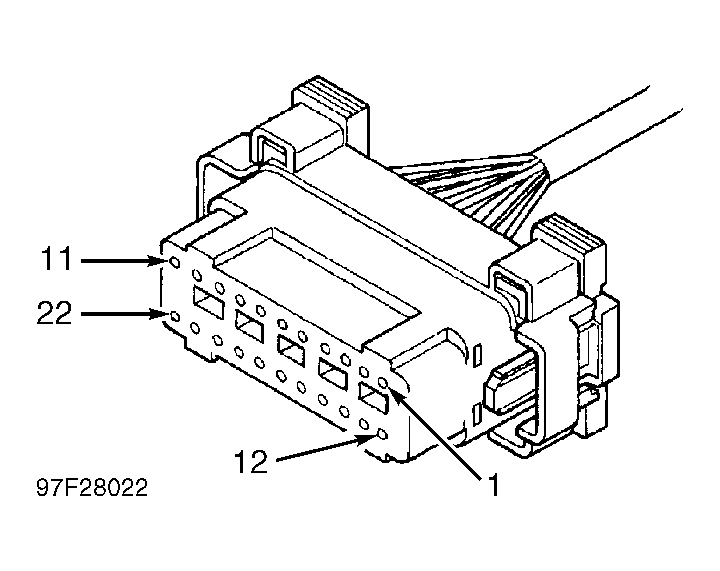

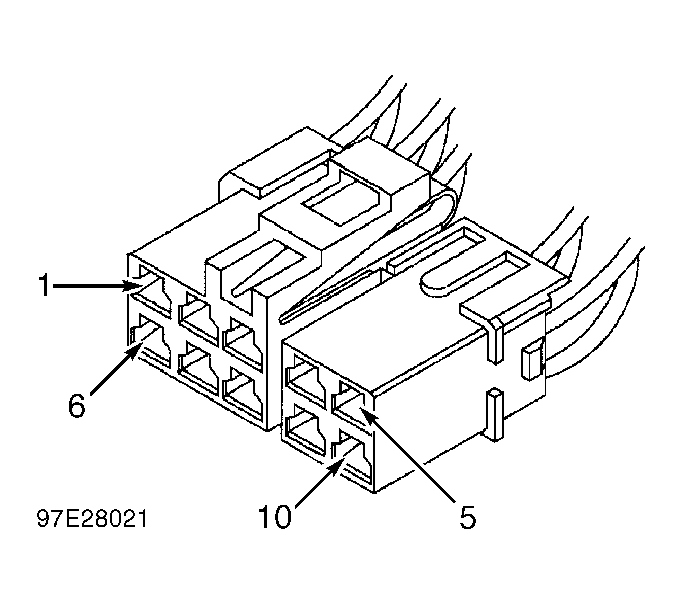

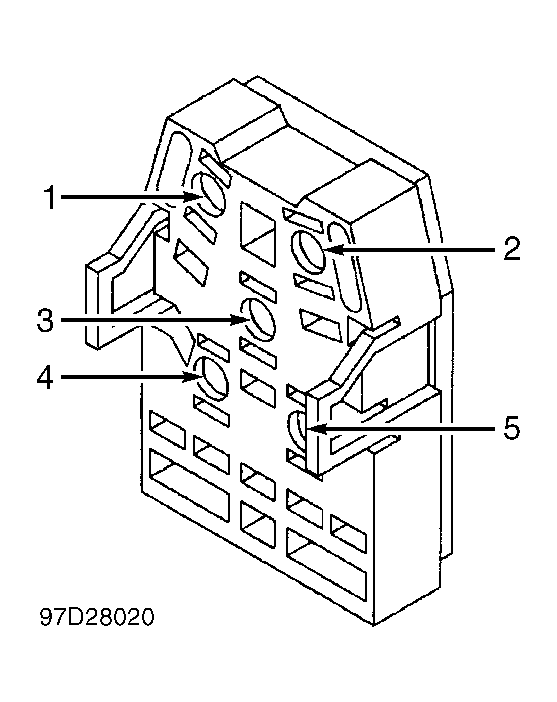

For terminal identification of body control system connectors, see Fig 1
-Fig 36
. Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See Fig. |
|---|---|
| Air Bag Control Module | See Fig 1 |
| Ambient Temperature Sensor | See Fig 2 |
| Anti-Theft Indicator Light | See Fig 3 |
| Automatic Temperature Control Head | See Fig 4 |
| Body Control Module | See Fig 5 -9 |
| Compass Mini-Trip Computer | See Fig 8 |
| Data Link Connector | See Fig 9 |
| Door Courtesy Light | See Fig 10 |
| Door Lock Motor | See Fig 11 |
| Door Module | See Fig 12 |
| Front & Rear Riser Position Sensor | See Fig 13 |
| Headlight Switch | See Fig 14 |
| Horizontal & Recliner Position Sensor | See Fig 15 |
| Ignition Switch | See Fig 16 |
| Instrument Cluster | See Fig 17 |
| Liftgate (Cargo) Light | See Fig 18 |
| Liftgate & Glass Ajar Switch | See Fig 19 |
| Lumbar Motor | See Fig 20 |
| Lumbar Switch | See Fig 21 |
| Memory Mirror | See Fig 22 |
| Memory Seat Module | See Fig 23 & 26 |
| Memory Switch | See Fig 25 |
| Multifunction Switch | See Fig 26 |
| Power Seat (Driver's) Switch | See Fig 27 |
| Powertrain Control Module | See Fig 28 |
| Radio | See Fig 29 |

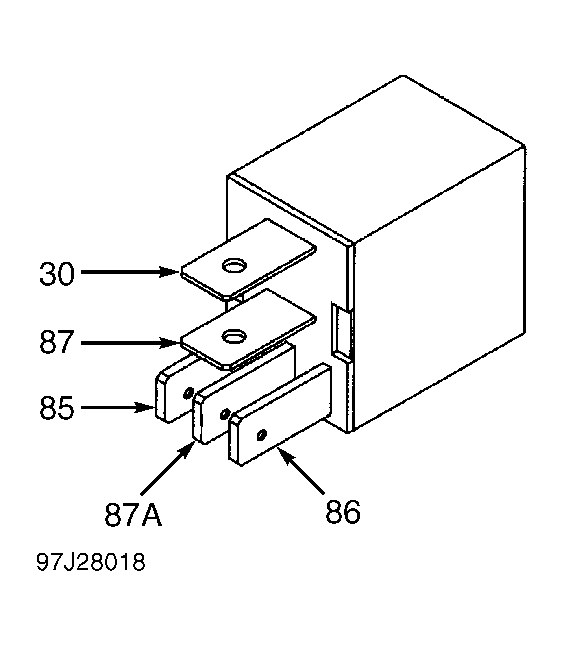

| Relay (Typical) | See Fig 30 |
| Seat Belt Switch | See Fig 31 |
| Transfer Case Shift Lever Switch | See Fig 32 |
| Vehicle Information Center | See Fig 33 |
| Window Motor | See Fig 34 |
| Window Switch | See Fig 35 |
| Wiper Motor | See Fig 36 |
