Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Front of floor pan tunnel. |

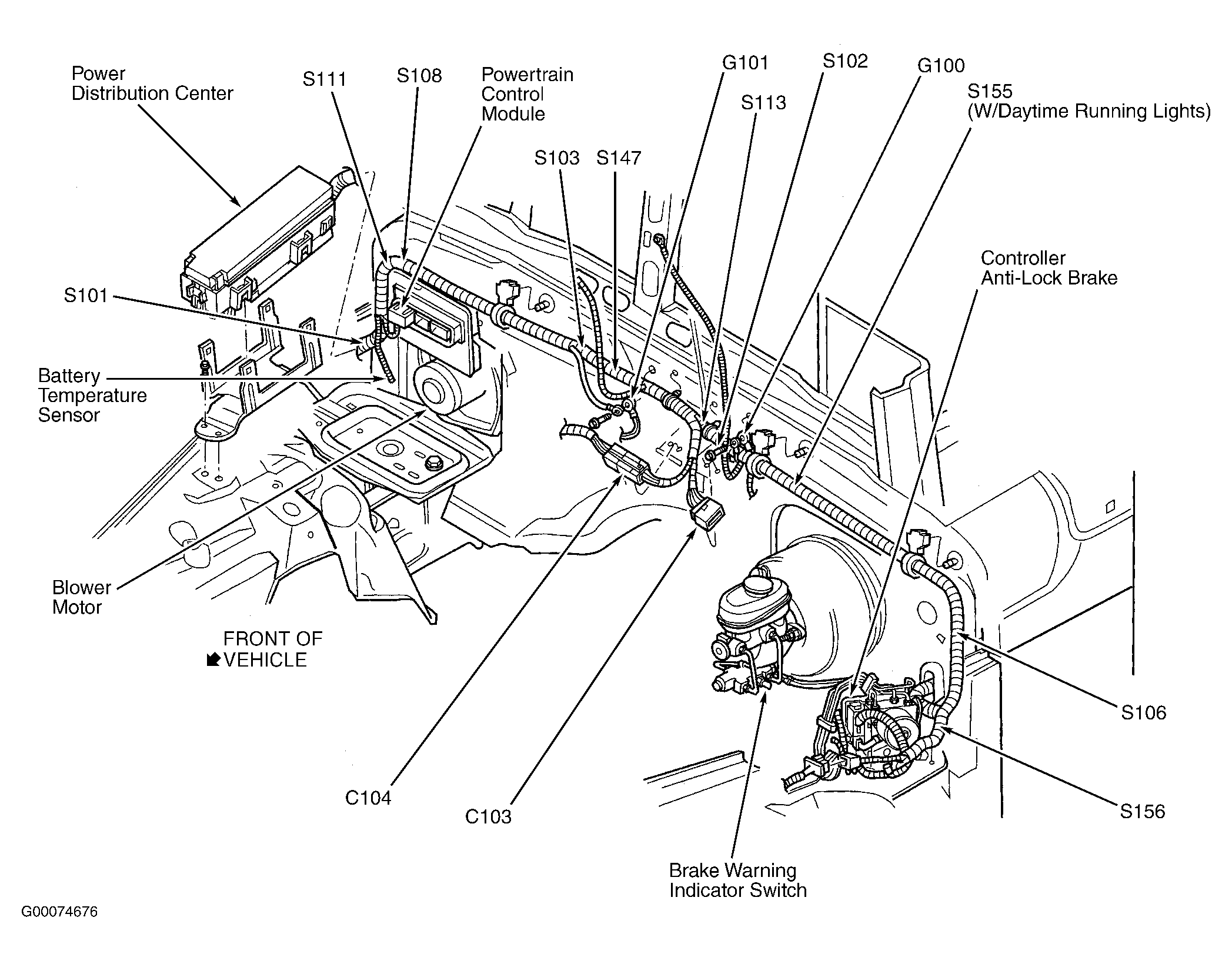

| Controller Anti-Lock Brake | At left rear corner of engine compartment. See Figure . |
| Daytime Running Lamp (DRL) Module | In rear of engine compartment, on firewall. See Figure . |
| Fuel Pump Module | On fuel tank. |
| Powertrain Control Module | In right rear of engine compartment, on firewall. See Figure . |
| Sentry Key Immobilizer Module (SKIM) | On steering column, near ignition lock cylinder. |
