Power Window Switch
NOTE:
The following test is for rear door power window switches. Front door power window switches are integral to door modules. For front door power window switch testing, see DOOR MODULE .

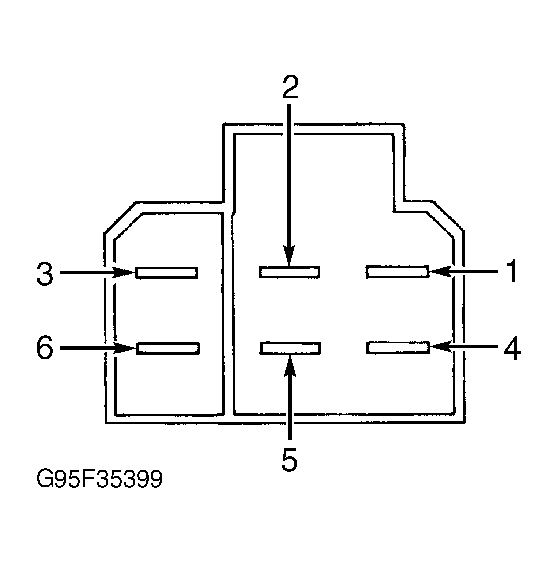

Disconnect negative battery cable. Remove rear power window switch from door trim panel. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. With switch in specified position, check switch continuity. See REAR POWER WINDOW SWITCH CONTINUITY table. See Fig 1. Replace switch as necessary. If switch is okay, go to POWER WINDOW MOTOR .
REAR POWER WINDOW SWITCH CONTINUITY
| Switch Position | Check Between Terminals No. |
|---|---|
| All Positions (LED) | 3 & 6 |
| Off | 1 & 2; 4 & 5 |
| Up | 1 & 2; 5 & 6 |
| Down | 2 & 6; 4 & 5 |
