Power Distribution: Relay: Description
A relay is an electromechanical device that switches fused battery current to a electrical component when the ignition switch is turned to the Accessory or Run positions, or when controlled by a electronic module. The relays are located in the junction block or power distribution center (Fig 1).

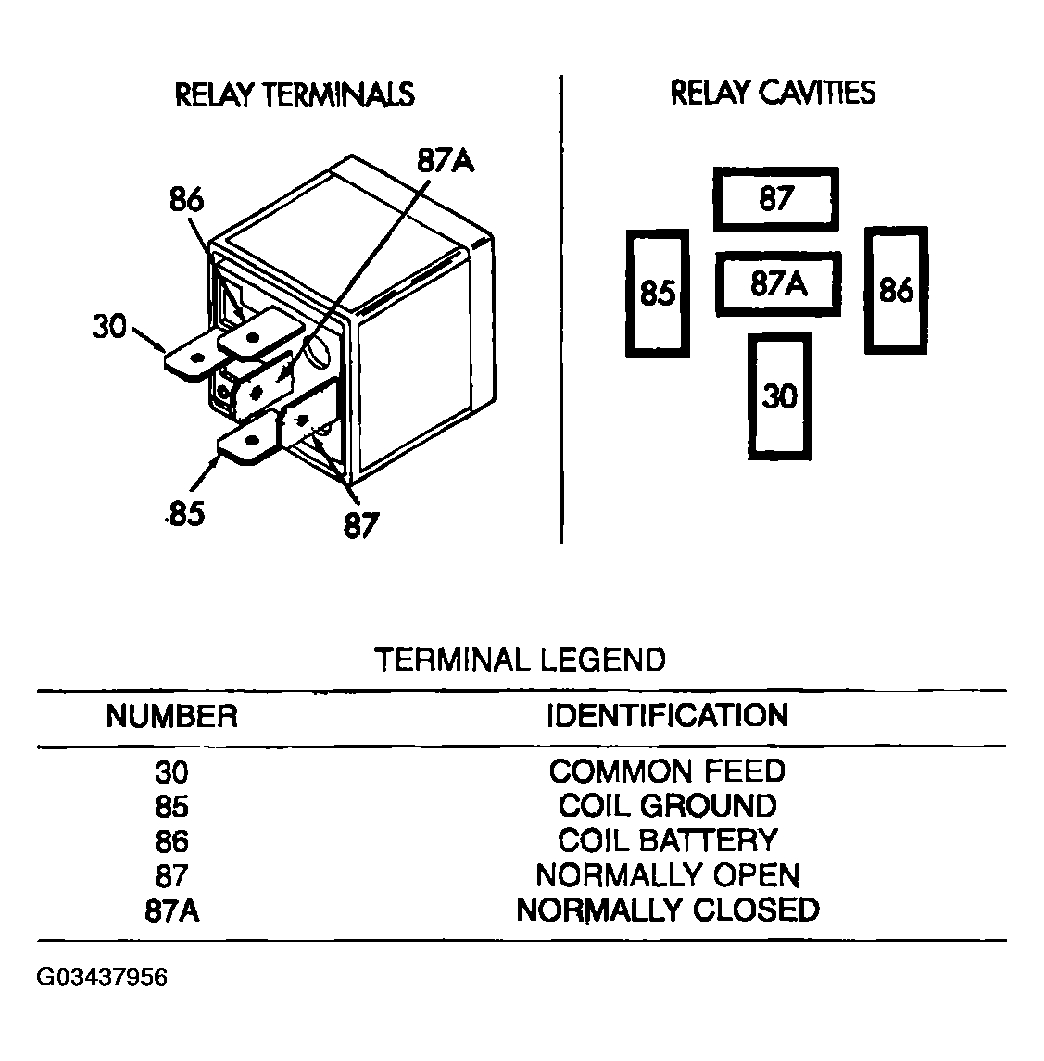

The relay is a International Standards Organization (ISO) relay. Relays conforming to the ISO specifications have common physical dimensions, current capacities terminal patterns, and terminal functions.
A relay cannot be repaired or adjusted and, if faulty or damaged, it must be replaced.
