Installation - 4.0L

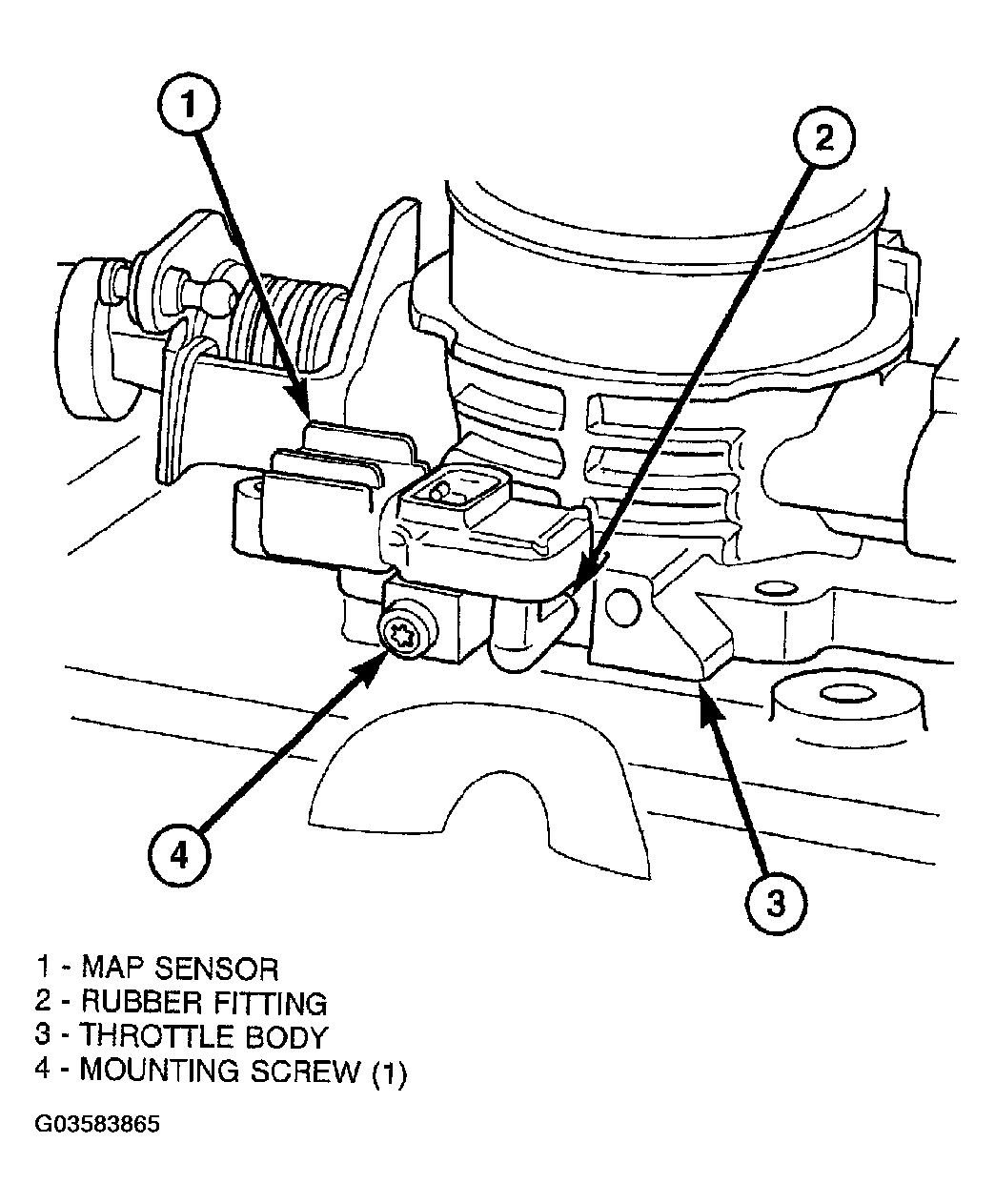

The MAP sensor is mounted to the side of the throttle body. An L-shaped rubber fitting is used to connect the MAP sensor to throttle body (Figure ).

1. Install rubber L-shaped fitting to MAP sensor.
2. Position sensor to throttle body while guiding rubber fitting over throttle body vacuum nipple.
3. Install MAP sensor mounting bolt (screw). Tighten screw to 3 N.m (25 in. lbs.) torque.
4. Install air cleaner duct/air box.
