Ignition Coil Capacitor: Description

Two coil capacitors are used. One of them is located near the center of, and on the left side of the intake manifold (Fig 1 ). The other capacitor is located near the center of, and on the right side of the intake manifold.

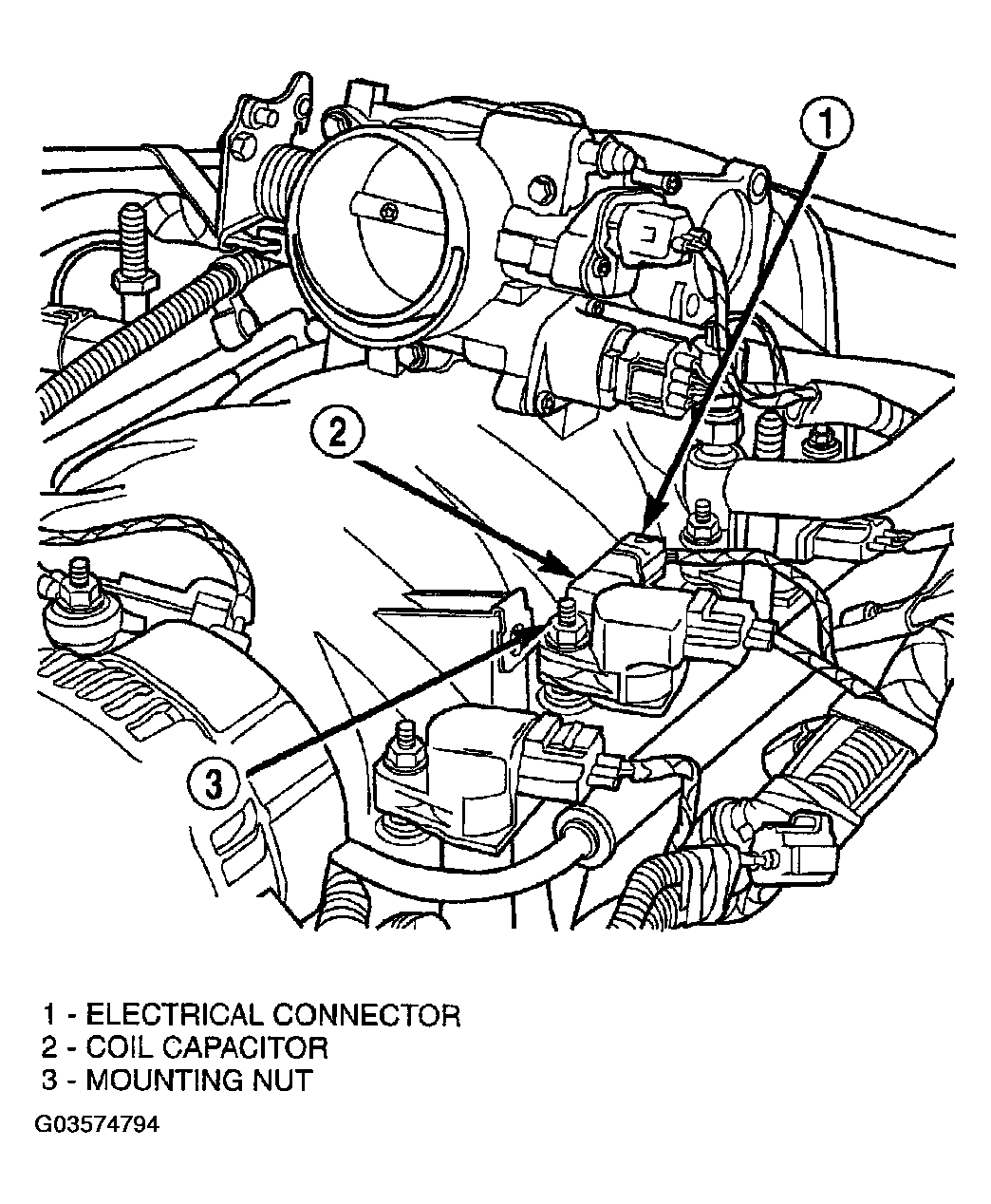

Fig 1: Locating Coil Capacitor (Left Side Shown)

Courtesy of DAIMLERCHRYSLER CORP.
