Home >> Jeep >> 2004 >> Grand Cherokee Overland, RWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Control >> Ignition Coil Capacitor >> Installation

Ignition Coil Capacitor: Installation

  1. Position capacitor to manifold mounting stud.
  2. Install nut and tighten to 8 N.m (70 in. lbs.) torque.

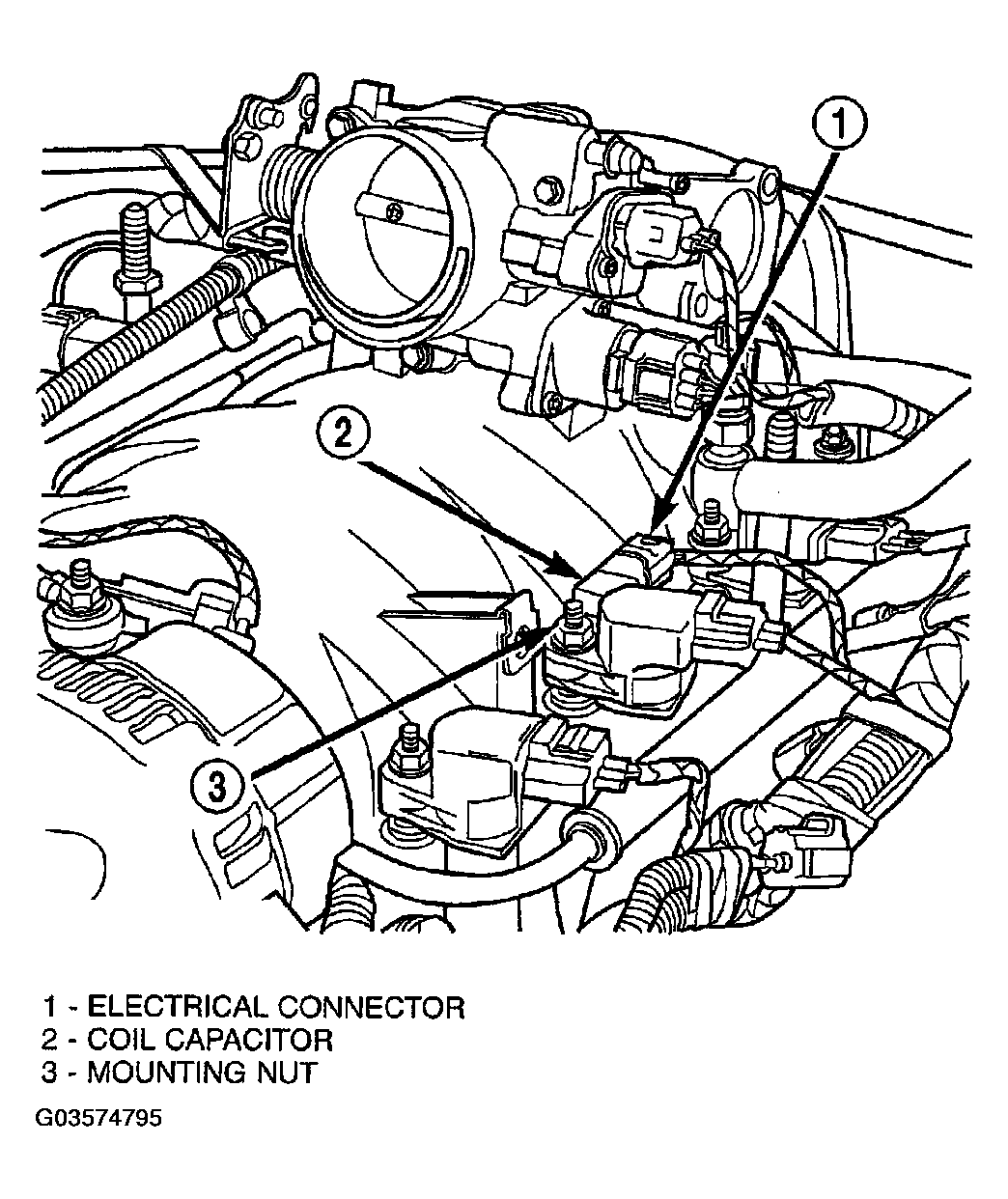

  3. Connect electrical connector to capacitor (Figure ).
