Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

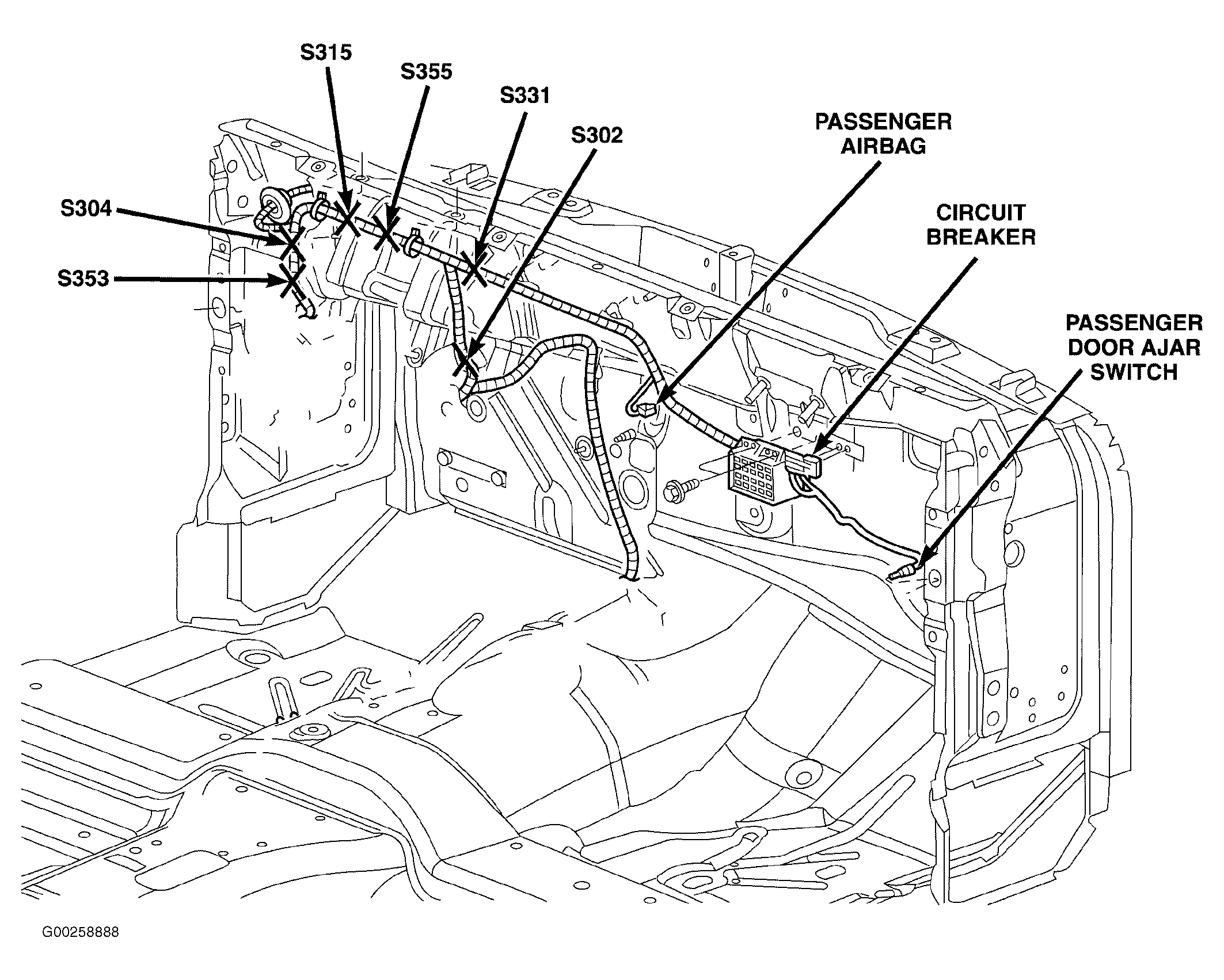

| Circuit Breaker | Near fuse block. See Figure . |
| Fuse Block | Under right center of dash. |
| Power Distribution Center | On right side of engine compartment. See Figure . |

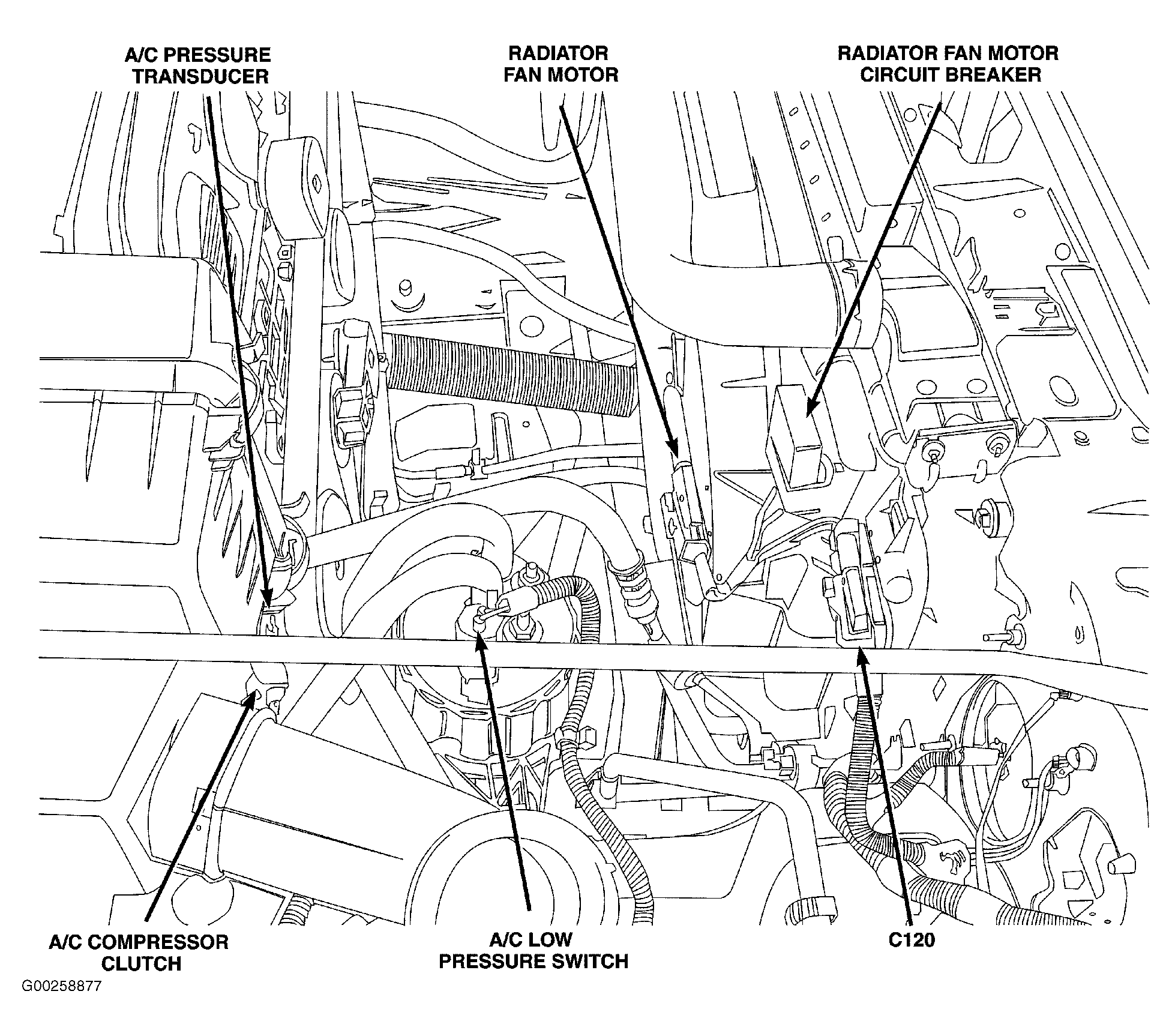

| Radiator Fan Motor Circuit Breaker (2.4L) | On right radiator fan shroud. See Figure . |
