Camshaft Position Sensor: Description: 3.7L

The Camshaft Position Sensor (CMP) on the 3.7L 6-cylinder engine is bolted to the right-front side of the right cylinder head. See Fig 1.

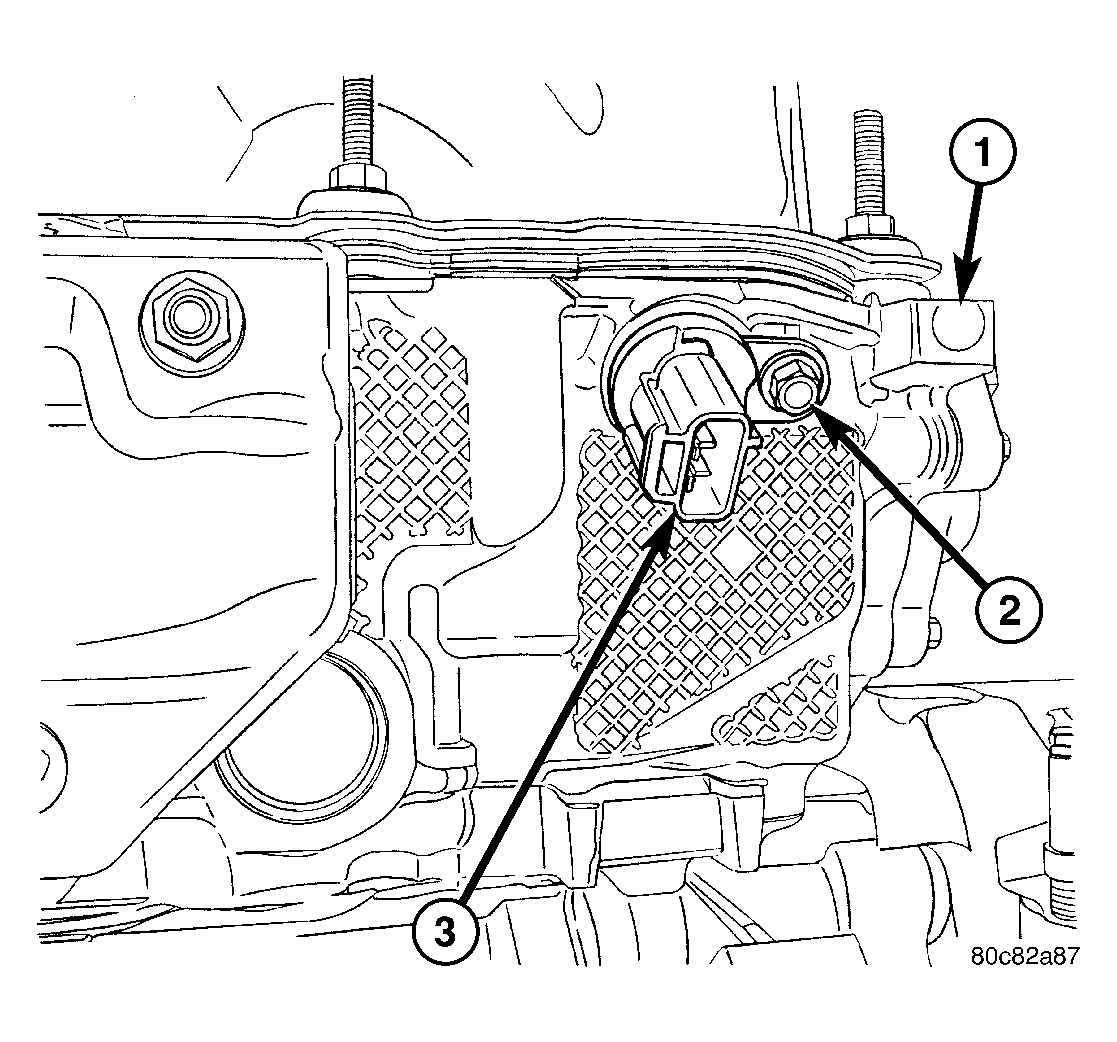

Fig 1: CMP Location - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT/FRONT OF RIGHT CYLINDER HEAD

2 - CMP MOUNTING BOLT

3 - CMP LOCATION
