Glow Plug: Removal

Disconnect glow plug electrical connectors. See Fig 2.

NOTE: The intake manifold inlet tube must be removed to remove the cylinder # 3 glow plug. See Fig 1.

Fig 1: Intake Manifold Air Inlet Tube

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER HEAD COVER/INTAKE MANIFOLD

2 - AIR INLET TUBE GASKET

3 - INTAKE MANIFOLD AIR INLET TUBE

4 - RETAINING BOLTS

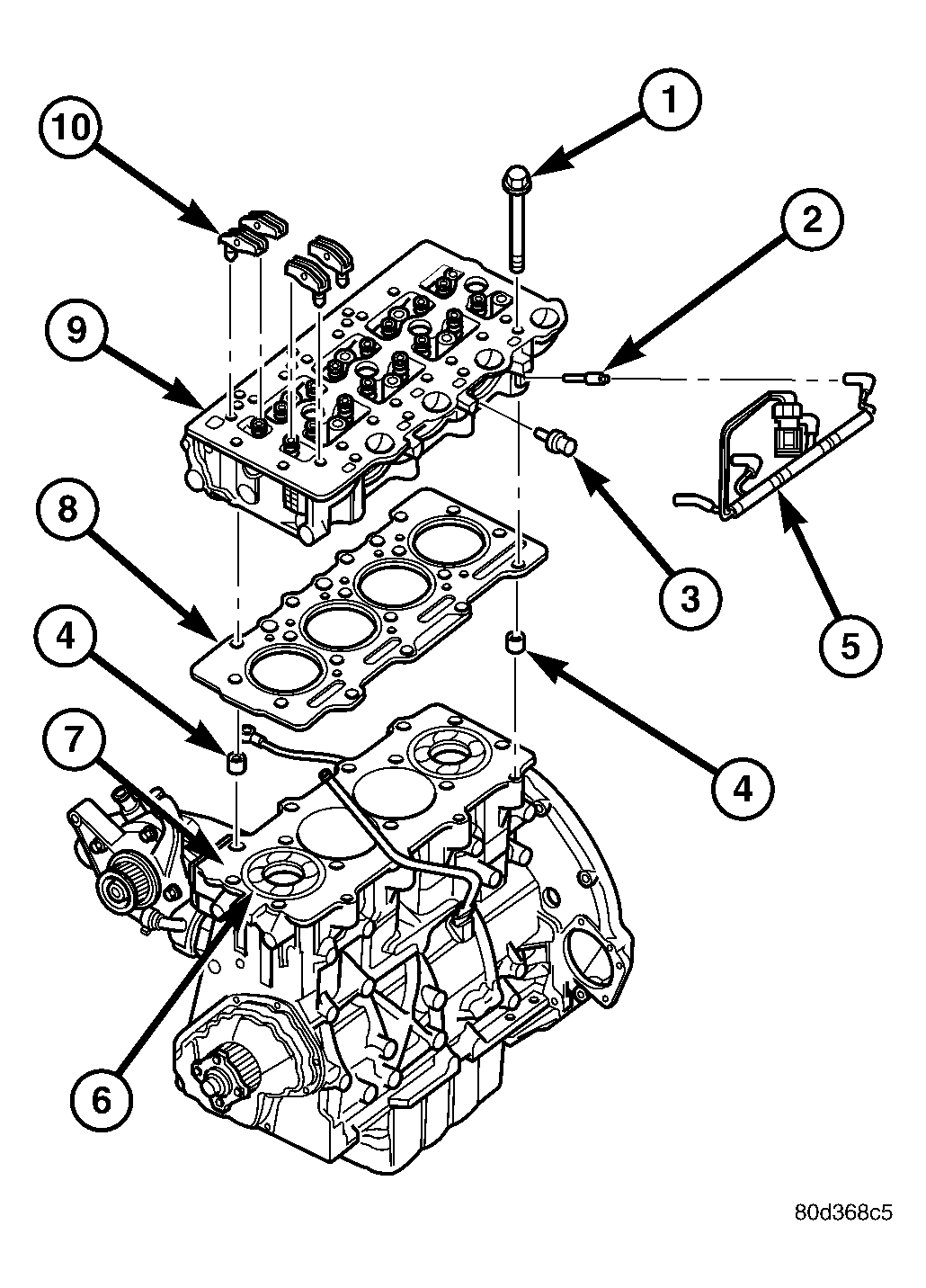

Fig 2: CYLINDER HEAD ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER HEAD BOLT

2 - GLOW PLUG

3 - COOLANT FITTING

4 - CYLINDER HEAD ALIGNMENT DOWEL

5 - GLOW PLUG HARNESS

6 - CYLINDER LINER

7 - CYLINDER BLOCK

8 - CYLINDER HEAD GASKET

9 - CYLINDER HEAD

10 - ROCKER ARM ASSEMBLIES
