Restraint Systems: Restraints: Description: Notes

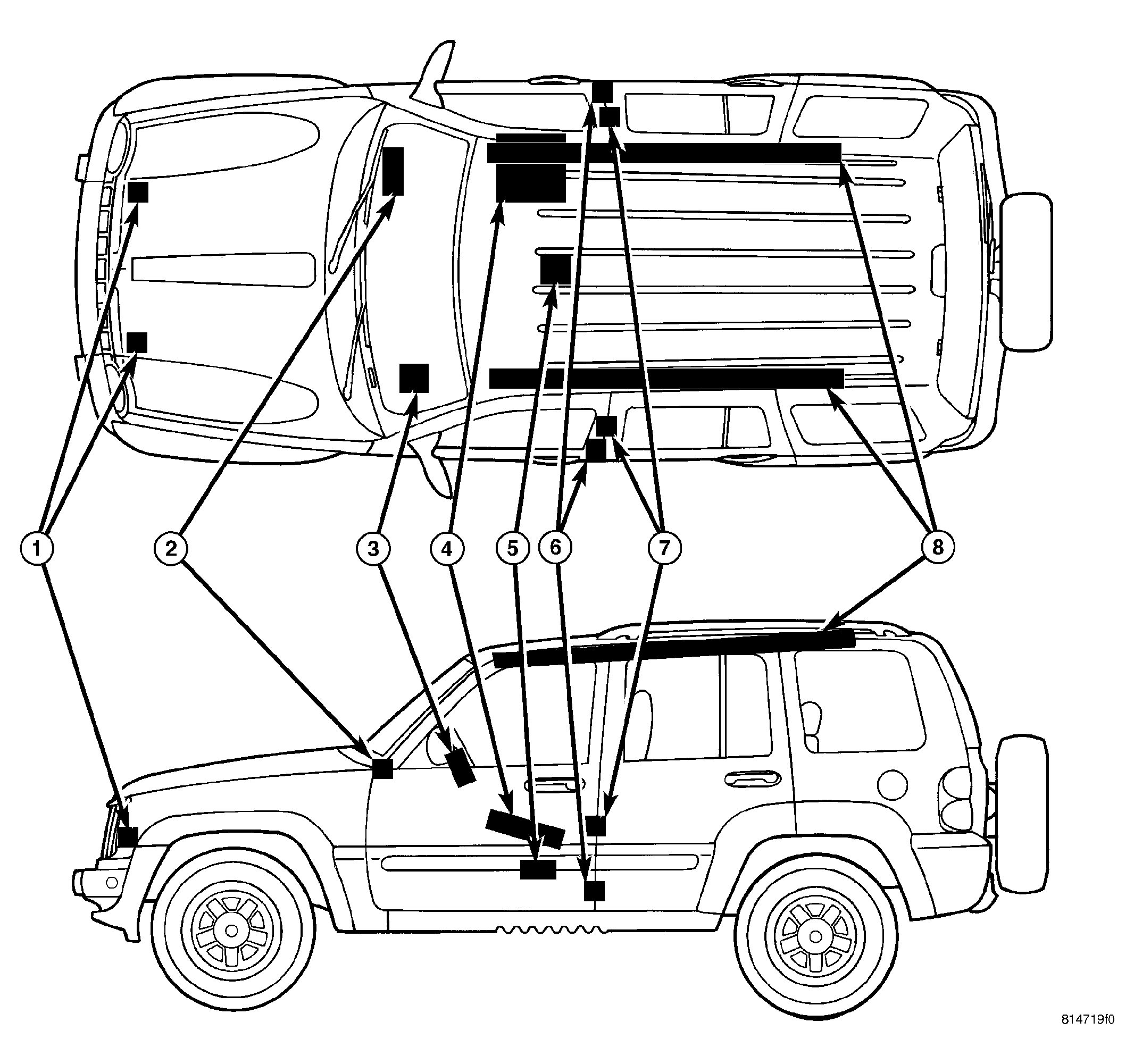

| 1 - FRONT IMPACT SENSOR (2) |
| 2 - PASSENGER AIRBAG |
| 3 - DRIVER AIRBAG |
| 4 - SEAT WEIGHT BLADDER & PRESSURE SENSOR, BELT TENSION SENSOR, & OCCUPANT CLASSIFICATION MODULE (NORTH AMERICA ONLY) |
| 5 - AIRBAG CONTROL MODULE |
| 6 - FRONT SEAT BELT TENSIONER (2) |
| 7 - SIDE IMPACT SENSOR (WITH SIDE CURTAIN AIRBAG ONLY - 2) |
| 8 - SIDE CURTAIN AIRBAG (OPTIONAL - 2) |
An occupant restraint system is standard factory-installed safety equipment on this model. Available occupant restraints for this model include both active and passive types. Active restraints are those which require the vehicle occupants to take some action to employ, such as fastening a seat belt; while passive restraints require no action by the vehicle occupants to be employed. See Fig 1.
