Camshaft Position Sensor: Description: 2.4L

The Camshaft Position Sensor (CMP) on the 2.4L 4-cylinder engine is bolted to the right-front side of the cylinder head. See Fig 1.

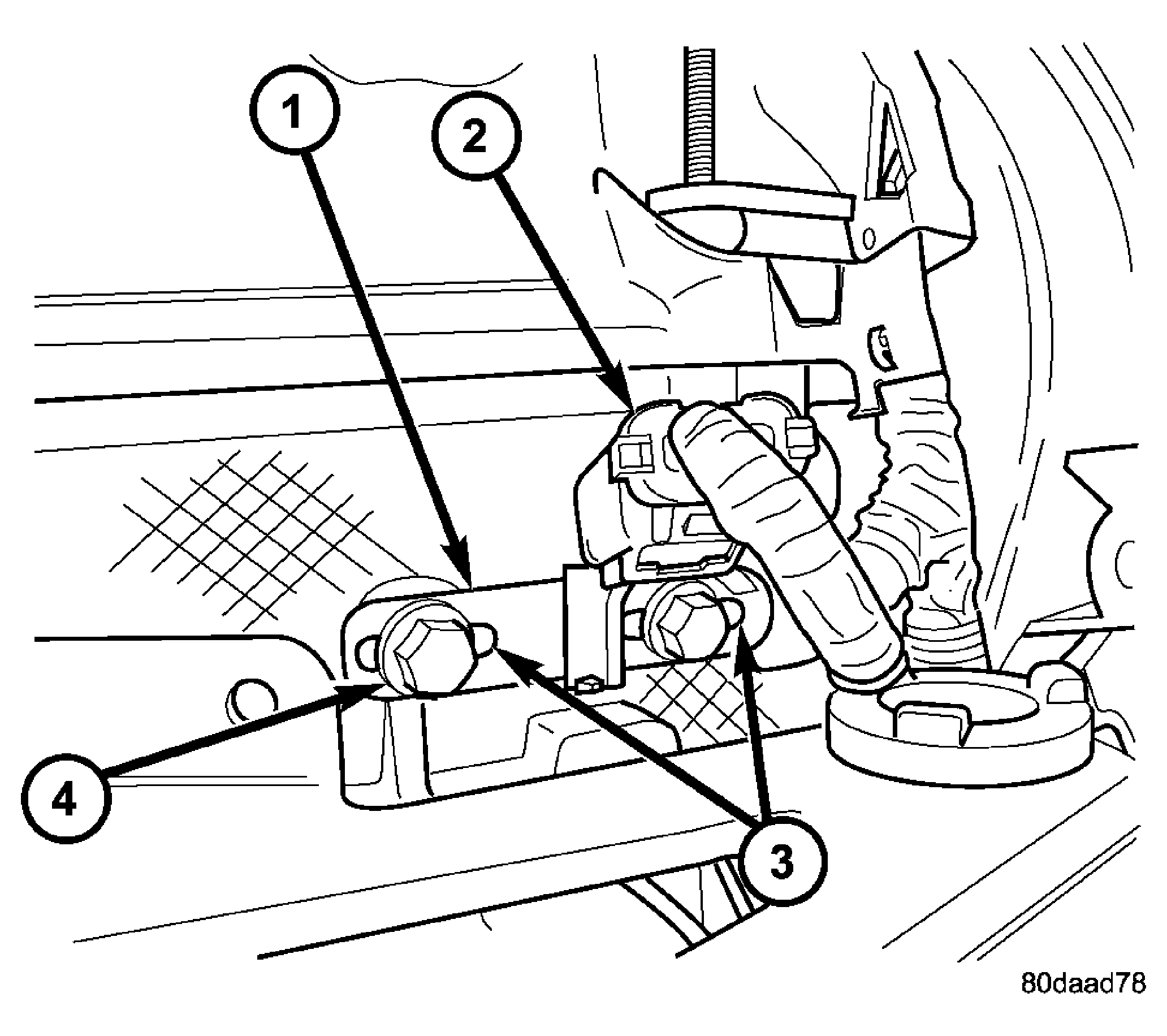

Fig 1: CMP Location - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - CMP SENSOR

2 - ELECTRICAL CONNECTOR

3 - SLOTTED HOLES

4 - MOUNTING BOLTS (2)
