Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

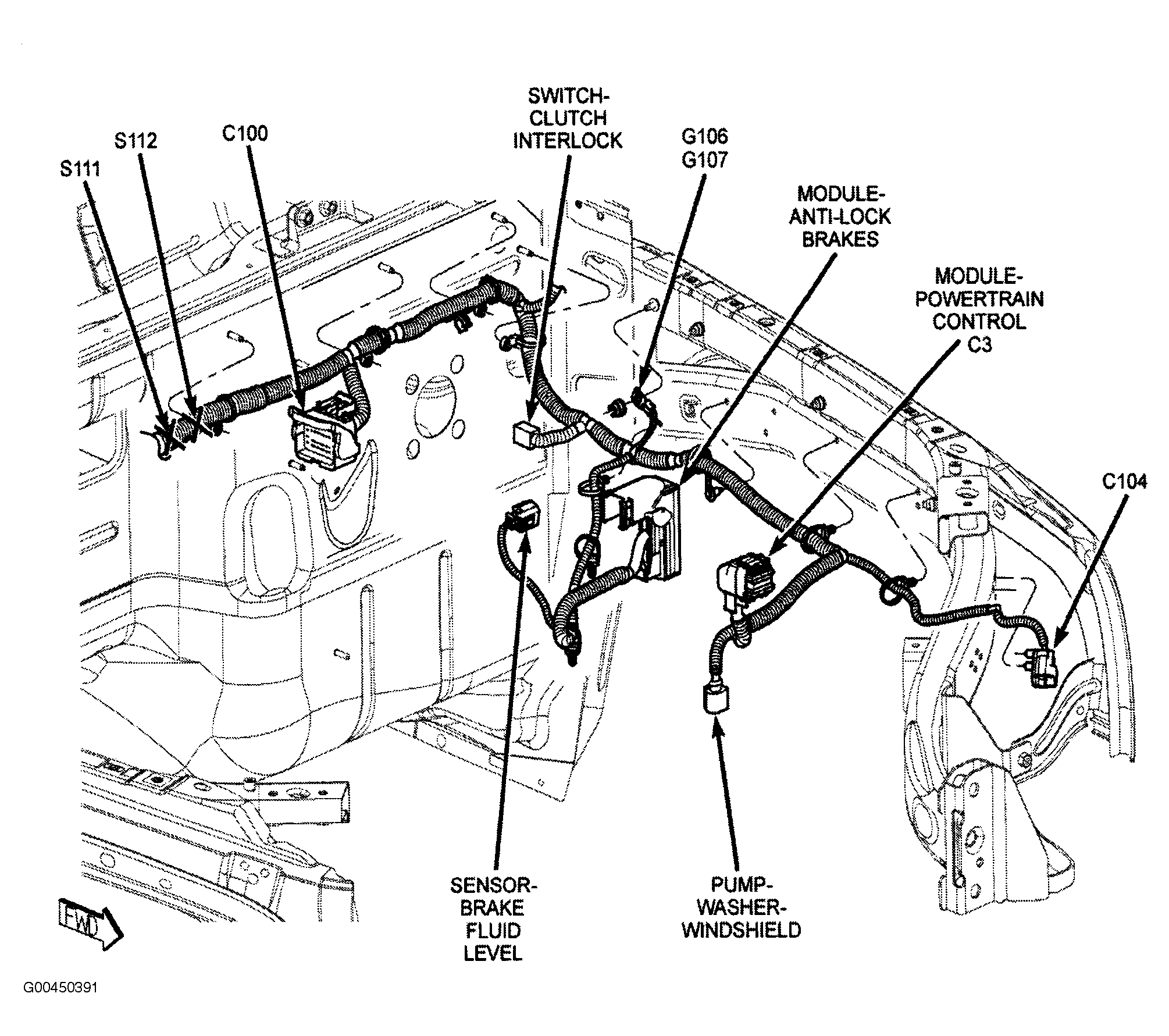

| Anti-Lock Brake Module (ESP) | Driver side of engine compartment. See Figure. |
| Automatic Sway Bar System (ABS) | On stabilizer bar. |
| Fuel Pump Module | At fuel tank. |

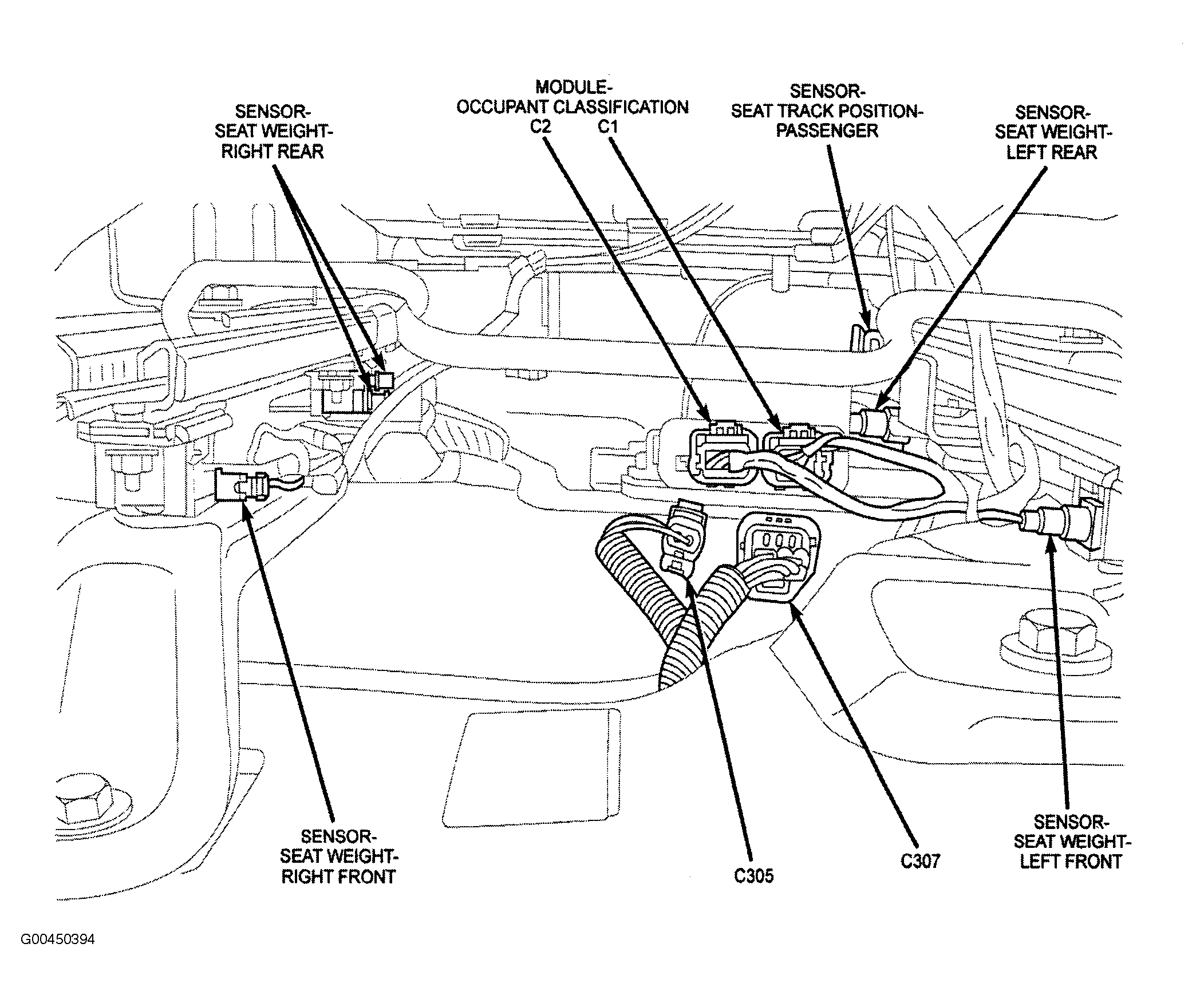

| Occupant Classification Module | Under front passenger seat. See Figure. |

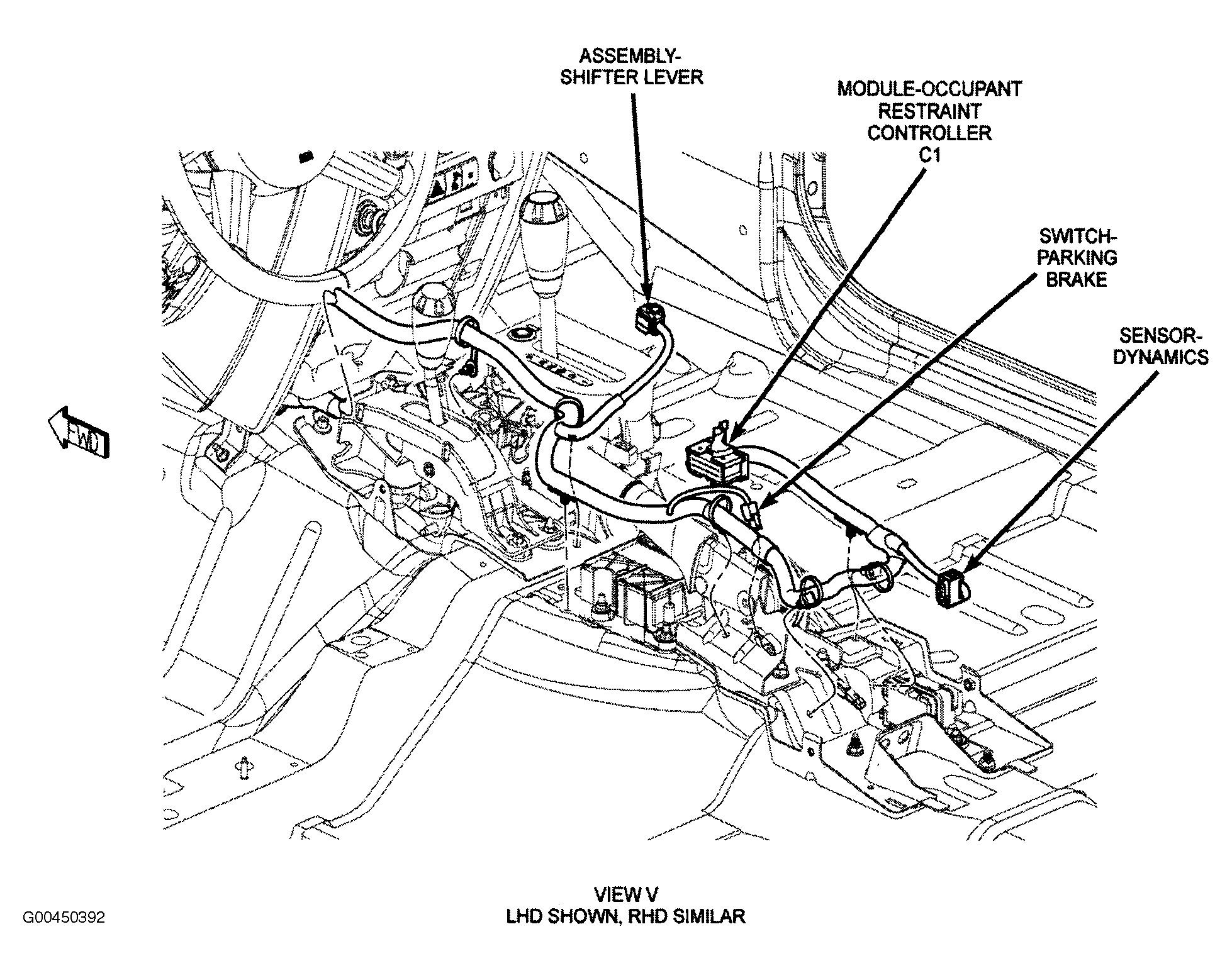

| Occupant Restraint Controller Module | Under center console. See Figure. |

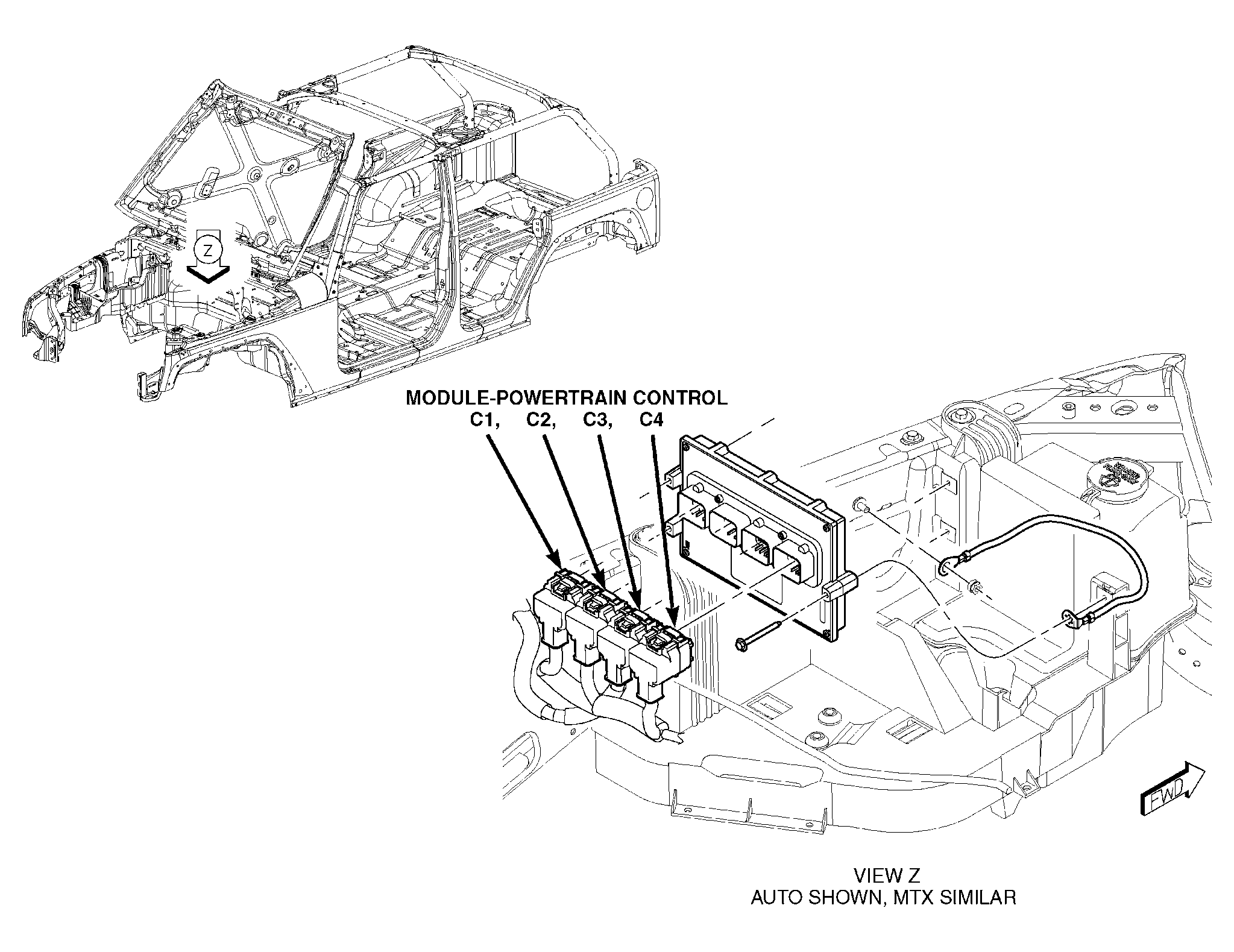

| Powertrain Control Module | Left side of engine compartment. See Figure. |
| Radiator Cooling Fan Module | Front of engine compartment. |
| Sentry Key Remote Entry/WCM Module | Steering column. |
