Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

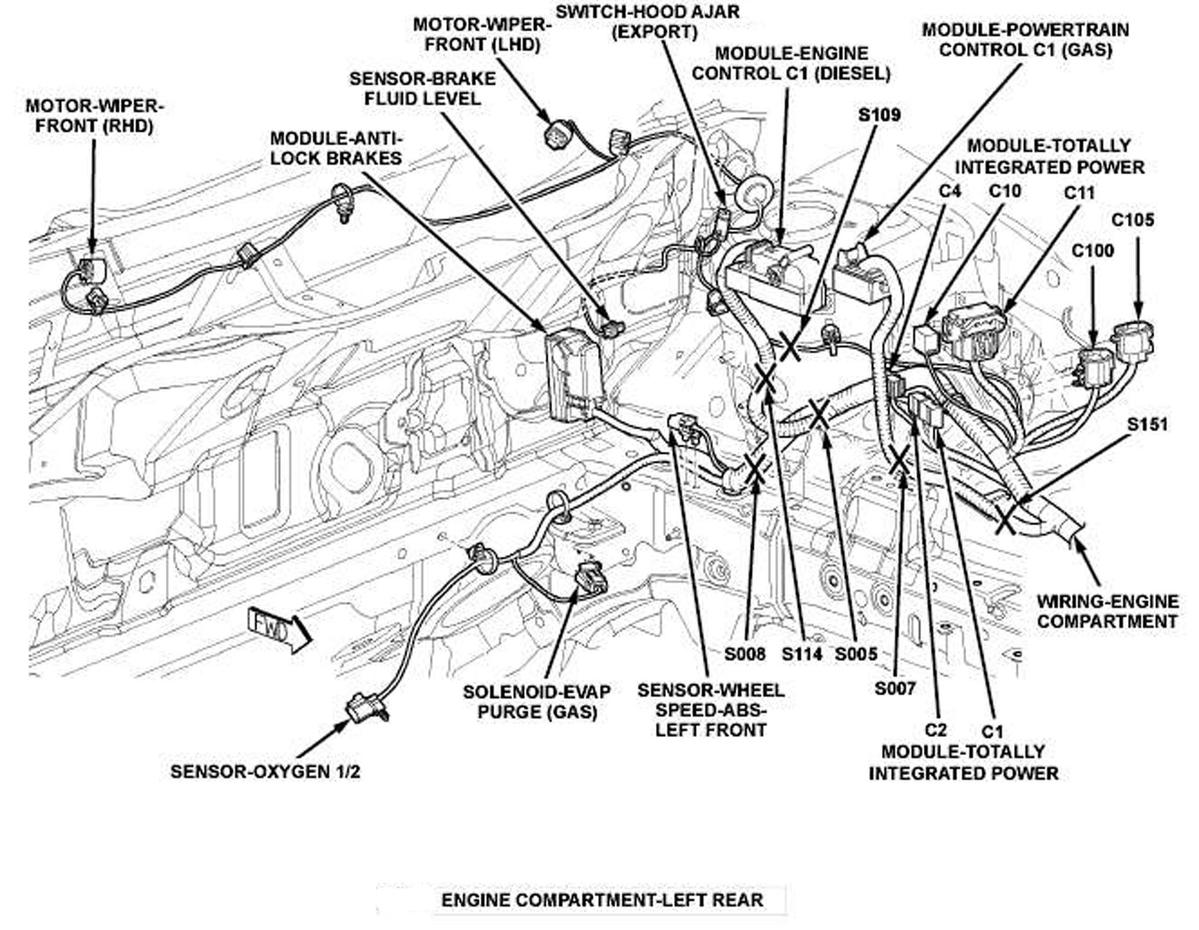

| Anti-Lock Brakes Module | Left rear engine compartment. See Figure. |
| Compass Module | Center stack. See Figure. |
| Fuel Pump Module | On fuel tank. See Figure. |
| Fuel Pump Module (FWD) | On fuel tank. See Figure. |
| Hands Free Module | Right side of dash. See Figure. |
| Heated Seats Module | Under driver seat. See Figure. |
| Intrusion Transceiver Module | Center of dash. See Figure. |
| Inverter Module | Center of dash. See Figure. |

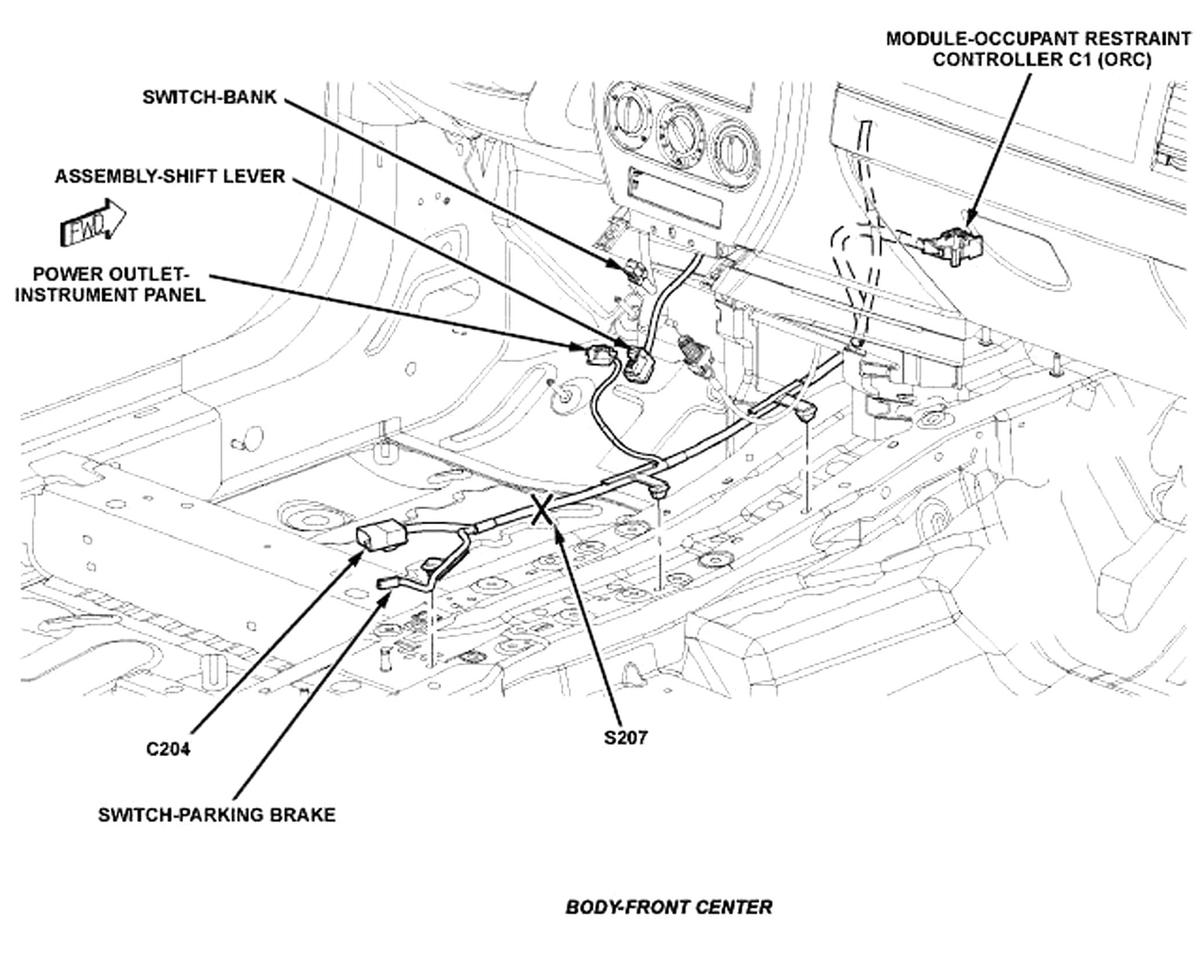

| Occupant Restraint Controller Module | Under center of dash. See Figure. |
| Powertrain Control Module | Left rear engine compartment. See Figure. |
| Radiator Cooling Fan Module | Front of engine compartment. See Figure. |
| Sentry Key Remote Entry/WCM Module | Steering column. See Figure. |
| Steering Control Module | Steering column. See Figure. |
| Transmission Control Module | Under left side of dash. See Figure. |
