Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

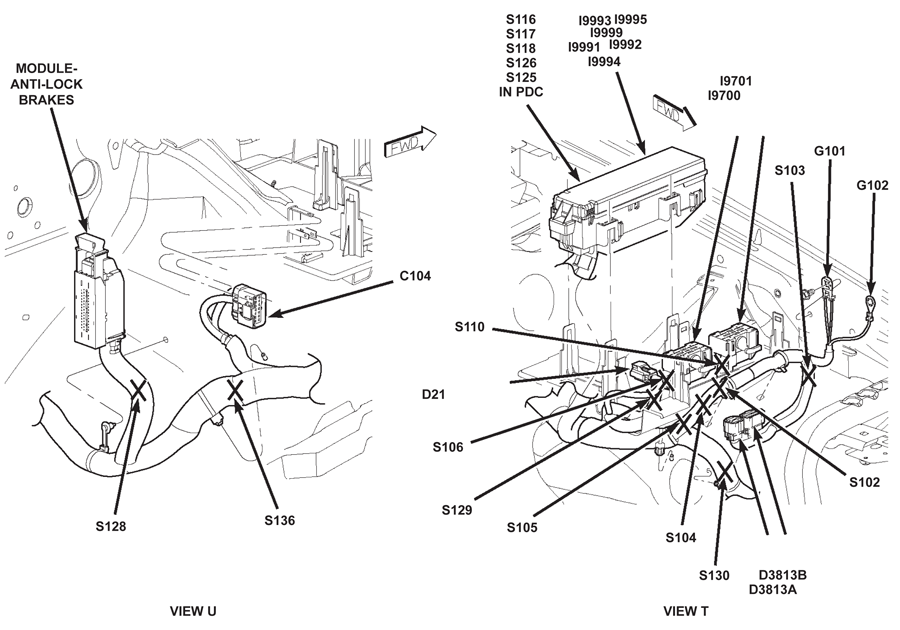

| Antilock Brakes Module | Left rear of engine compartment. See Figure. |

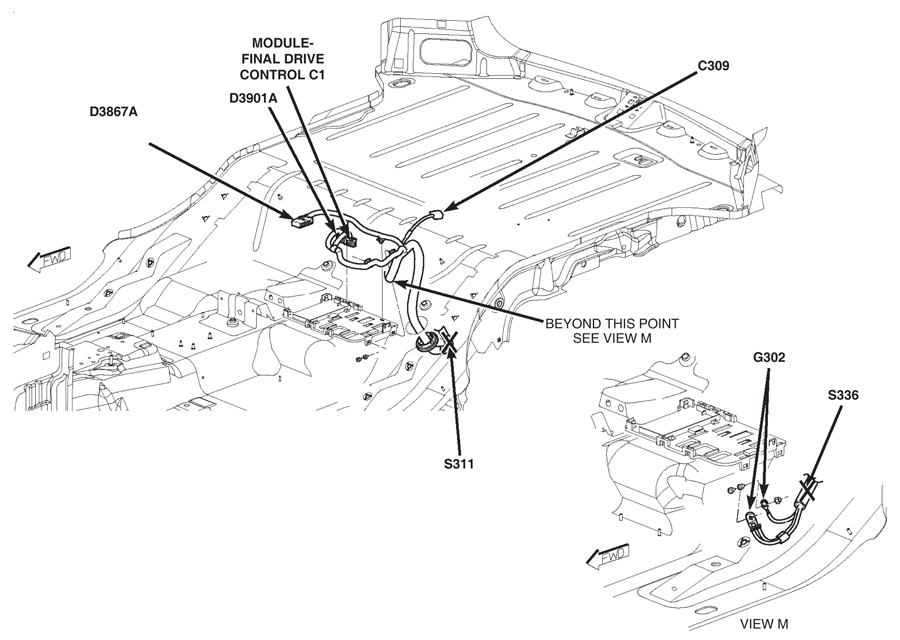

| Final Drive Control Module | Under left rear seat. See Figure. |

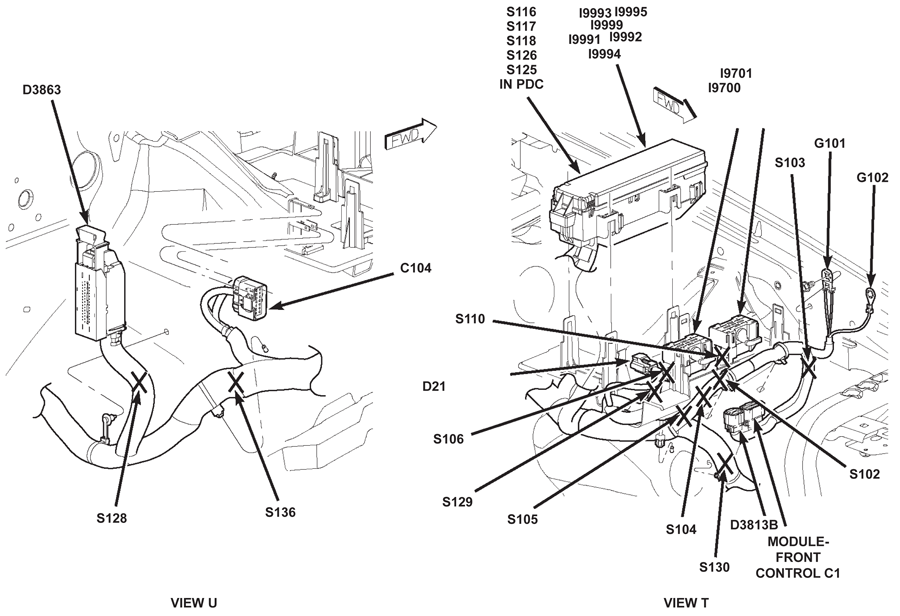

| Front Control Module | Left side of engine compartment. See Figure. |

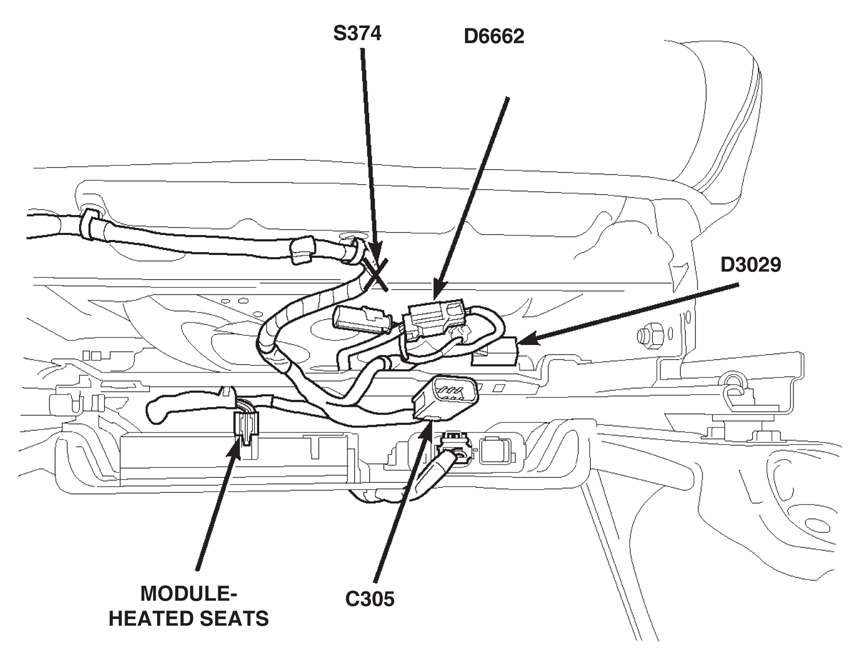

| Heated Seat Module | Under front passenger's seat. See Figure. |

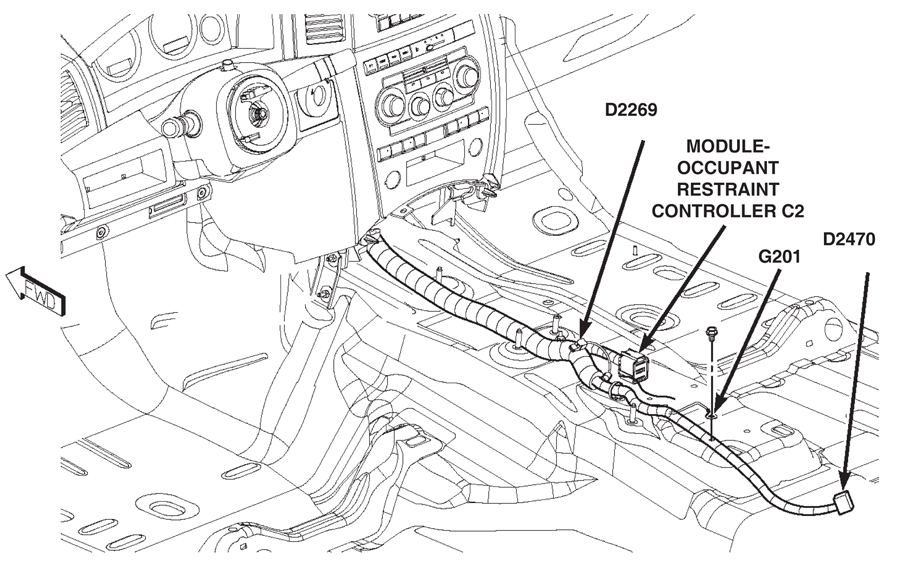

| Occupant Restraint Controller Module | Under center console. See Figure. |

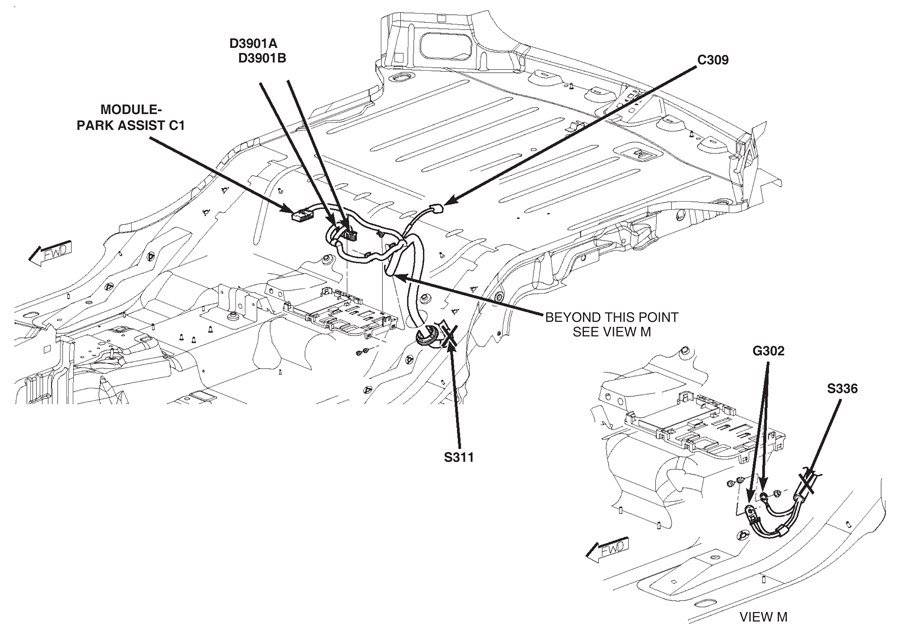

| Park Assist Module | Under left rear seat. See Figure. |

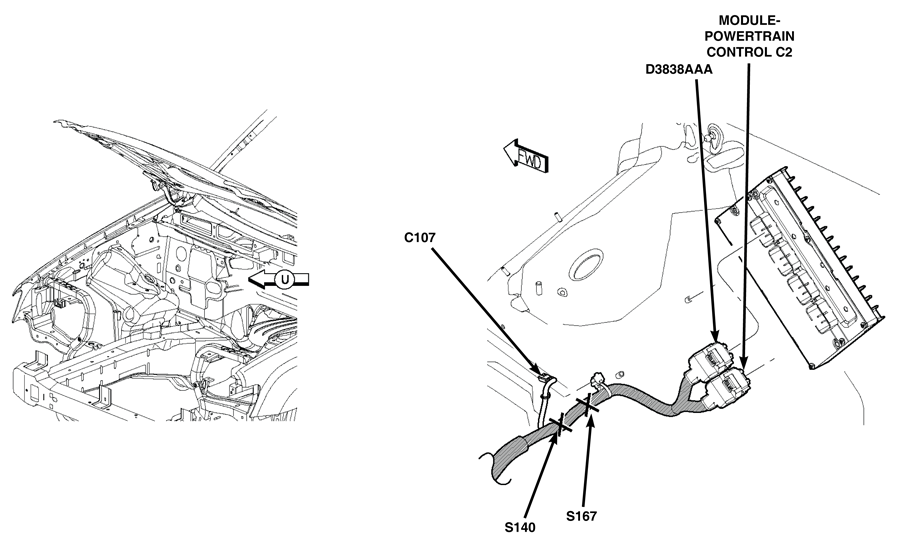

| Powertrain Control Module | Right rear of engine compartment. See Figure. |
