Control Units

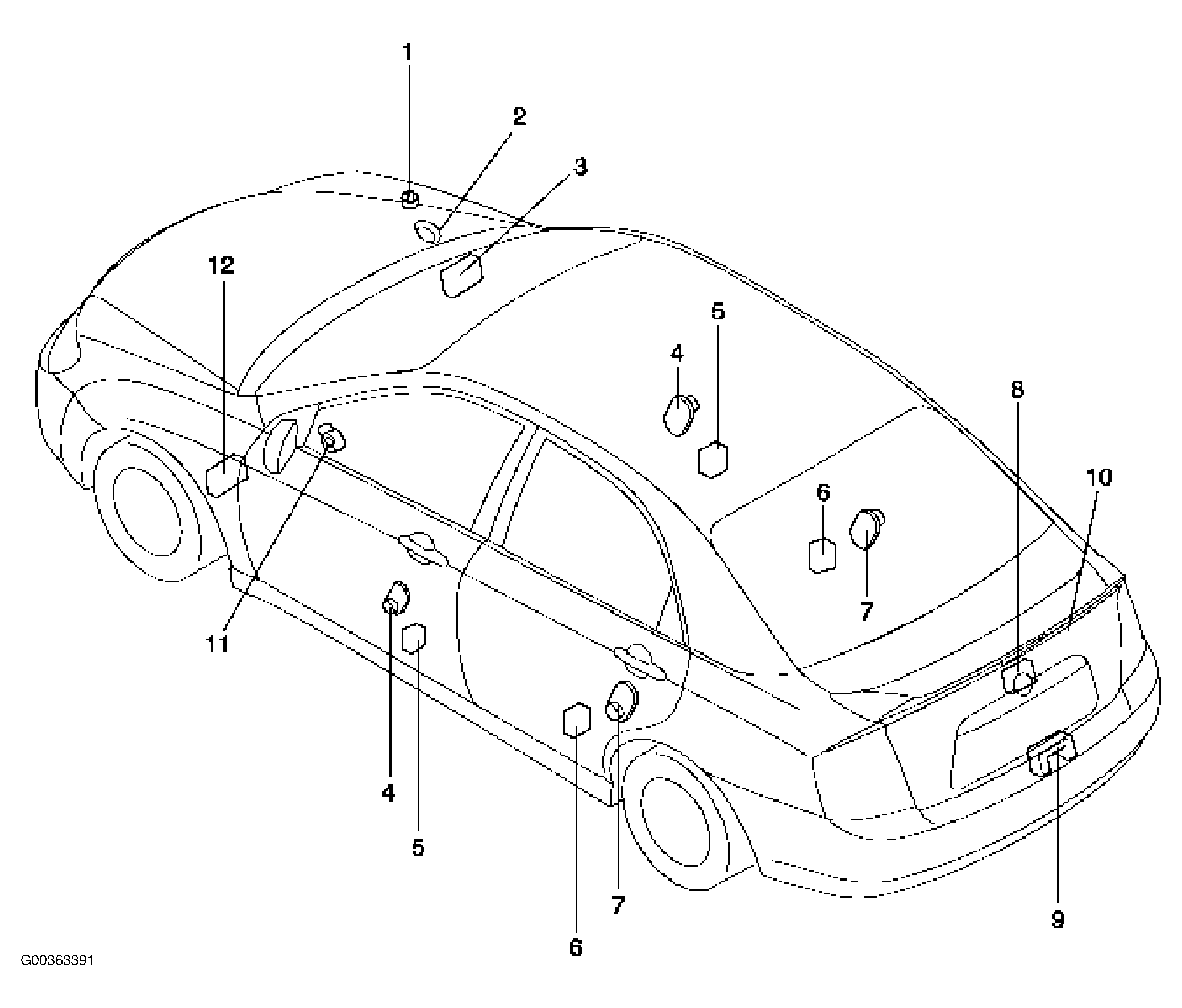

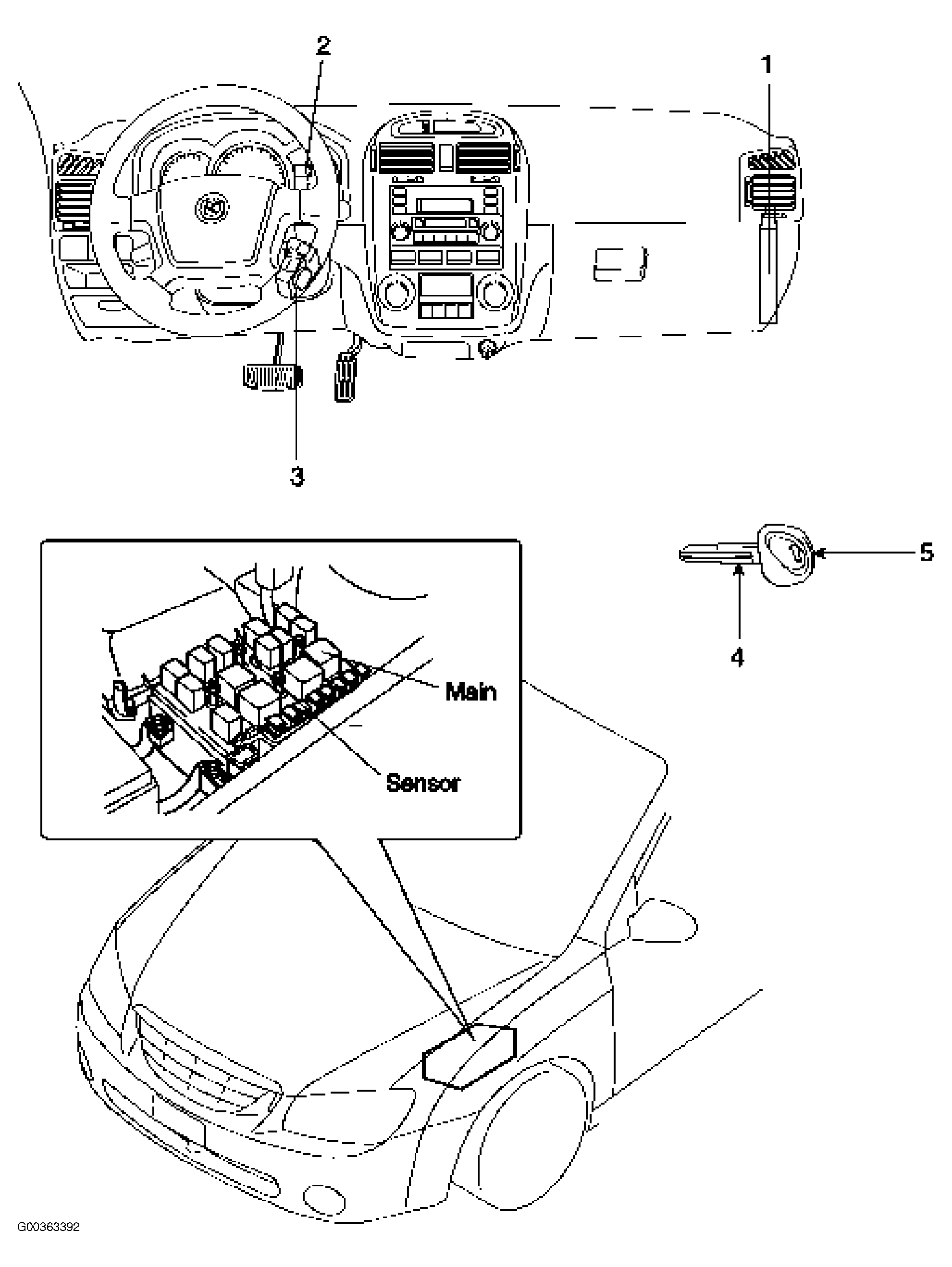

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS & TCS Module | At right front of engine compartment. See Figure. |
| Airbag Control Unit | Under rear of center floor console. See Figure. |
| Aircon Control Module | Behind lower center of dash. See Figure. |
| Auto Light Unit | Under center of dash. See Figure. |
| Cruise Control Module | At right rear of engine compartment. See Figure. |
| ECM Unit | At front center of roof. See Figure. |
| ECM (1) | Behind right side of dash. See Figure. |
| Engine/Transaxle Control Module | Behind lower center of dash. See Figure. |
| ETACS Module (12) | Below left side of dash. See Figure. |
| Immobilizer Unit | At top left of steering column. See Figure. |
| Remote Keyless Receiver (3) | Behind right side of dash. See Figure. |
