Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | At left rear of engine compartment. See Figure. |
| A/C Control Module (Auto/Manual) | Center of dash, behind A/C control panel. See Figure. |
| ATM Key Lock Control Module | Behind center of dash. See Figure. |
| Cooling Fan Controller | Mounted on rear of cooling fan assembly. See Figure. |
| Driver Door Module | In driver's door. See Figure. |

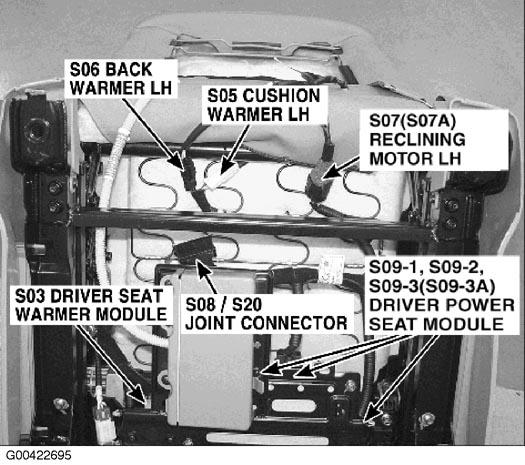

| Driver Power Seat Module | In driver's seat. See Figure. |

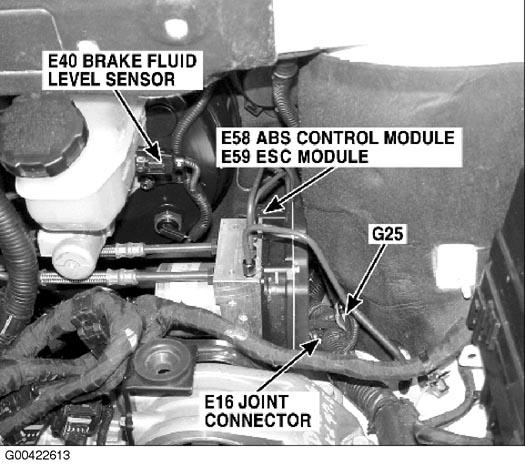

| ESC Module | At left rear of engine compartment. See Figure. |
| Immobilizer Module | Left side of dash. See Figure. |
| Passenger Power Seat Module | In front passenger's seat. See Figure. |

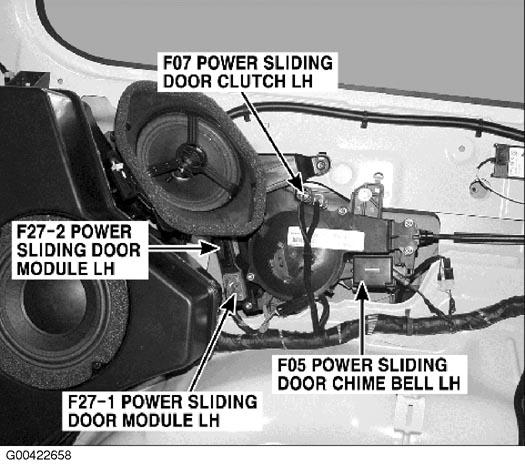

| Power Sliding Door Module LH | Behind left rear quarterpanel. See Figure. |

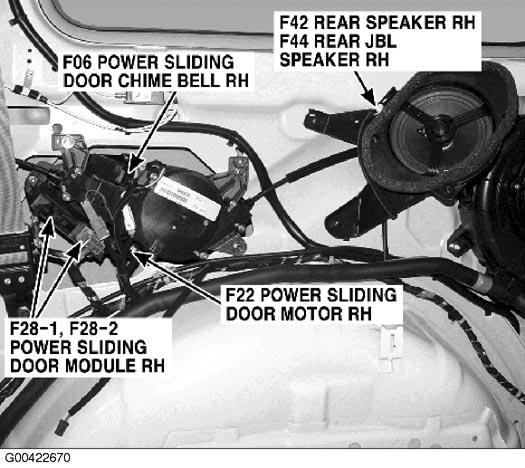

| Power Sliding Door Module RH | Behind right rear quarterpanel. See Figure. |

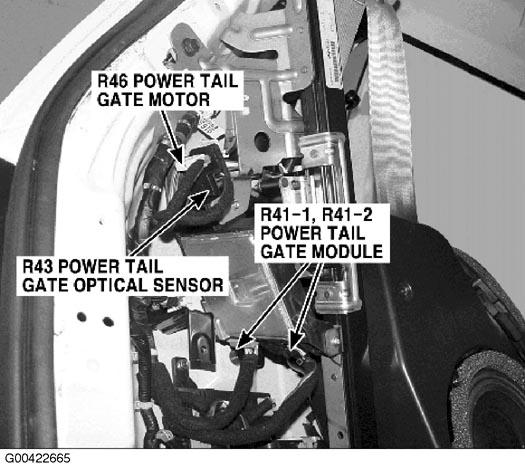

| Power Tail Gate Module | Left "D" pillar. See Figure. |

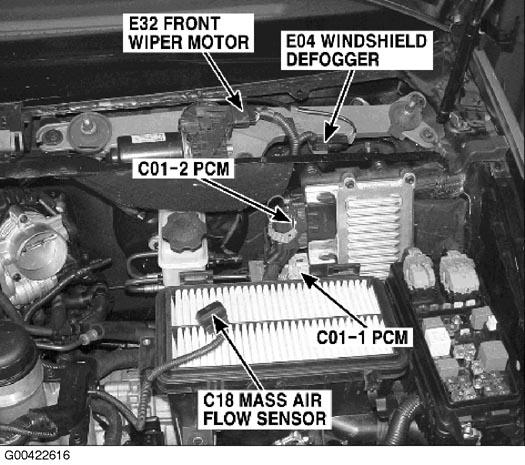

| Powertrain Control Module (PCM) | Left rear of engine compartment, mounted on firewall. See Figure. |
| Rear Parking Assist Control Module | Near base of right "C" pillar. See Figure. |

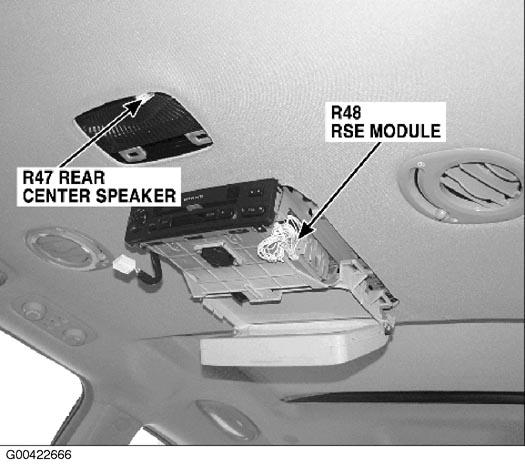

| RSE Module | Under rear roof console. See Figure. |

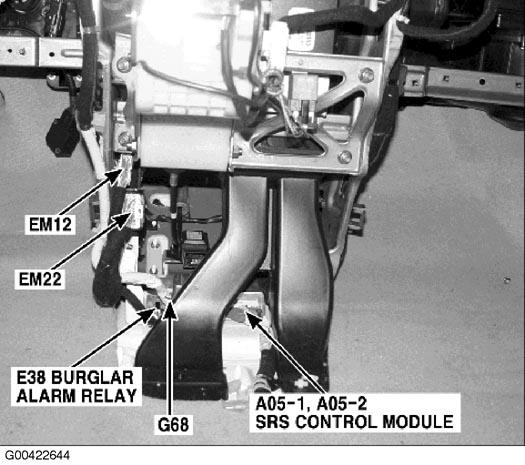

| SRS Control Module | Under center of dash. See Figure. |

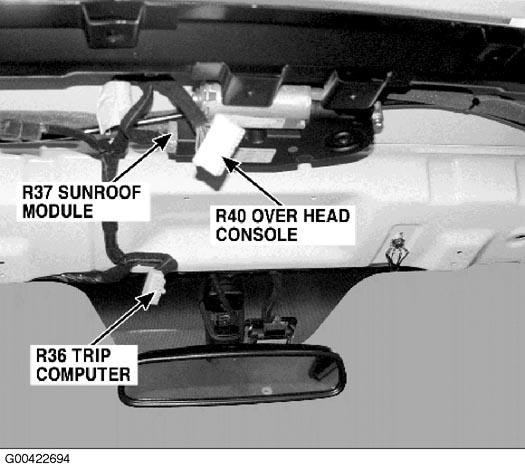

| Sunroof Module | At front center of roof, in sun roof unit. See Figure. |
| Tire Pressure Monitoring Module | Behind center of dash. See Figure. |
