Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Air Recirculation Solenoid In-Line Fuse | Behind right side of dash. |

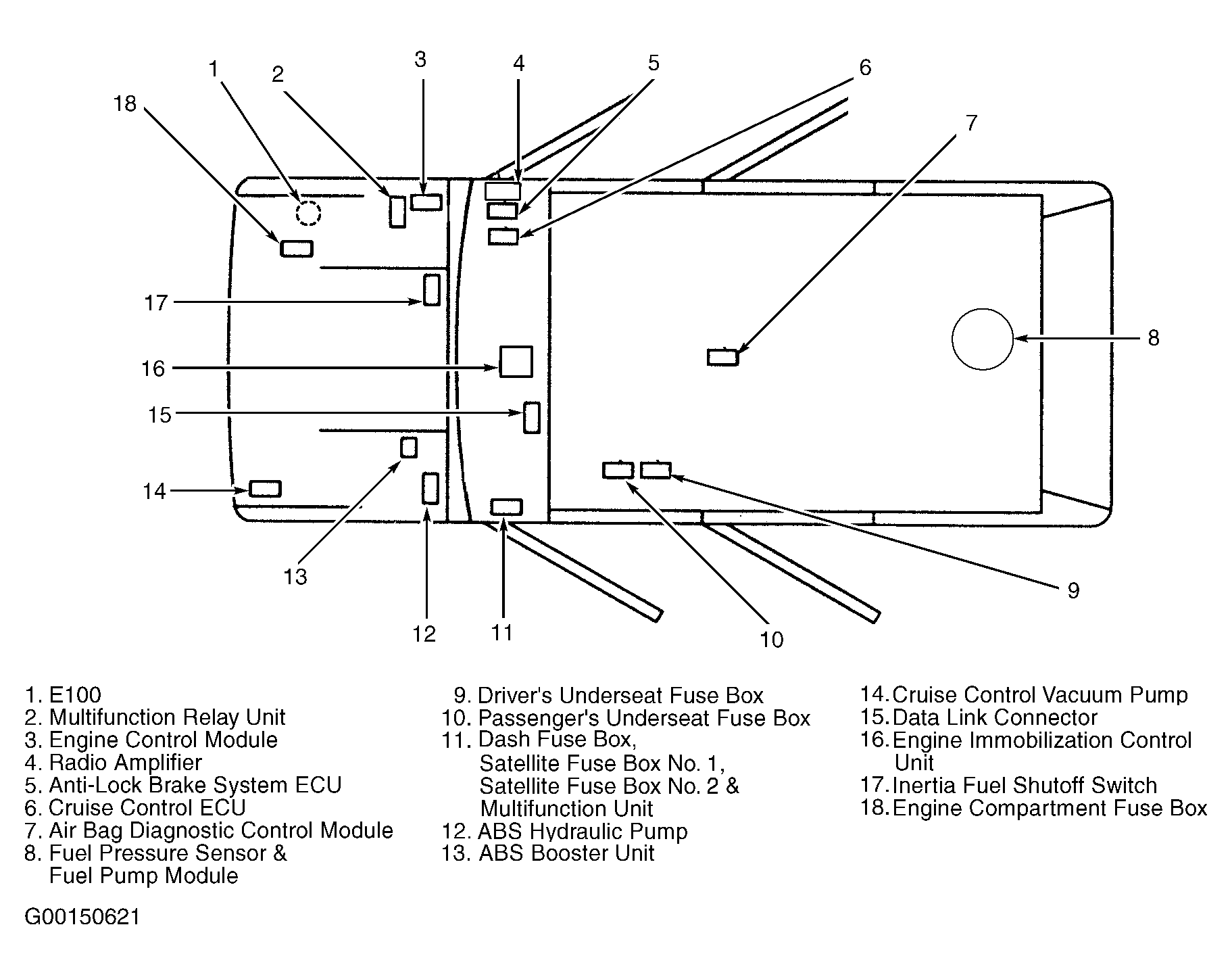

| Dash Fuse Box | Behind left side of dash. See Figure . |
| Driver's Underseat Fuse Box | Under left front seat. See Figure . |
| Engine Compartment Fuse Box | Right front of engine compartment. See Figure . |
| Fusible Link | At right front of engine compartment, behind battery. |
| Passenger's Underseat Fuse Box | Under left front seat. See Figure . |
| Rear A/C Switch Amplifier In-Line Fuse | At left rear of luggage compartment, behind trim panel. |
| Satellite Fuse Box No. 1 | Behind left side of dash, on dash fuse box. See Figure . |
| Satellite Fuse Box No. 2 | Behind left side of dash, on dash fuse box. See Figure . |
