Control Units
CONTROL UNITS LOCATION

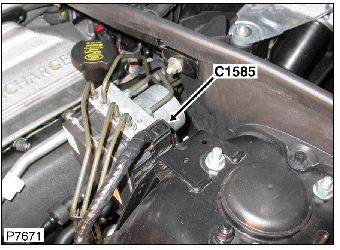

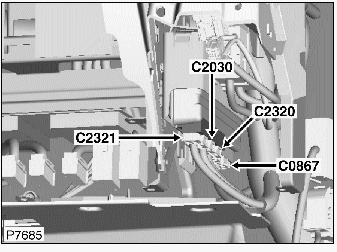

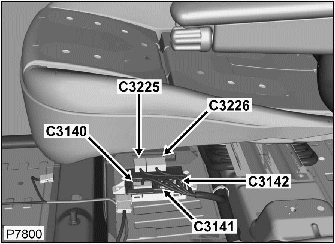

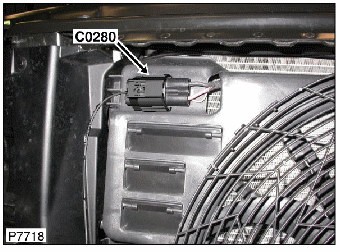

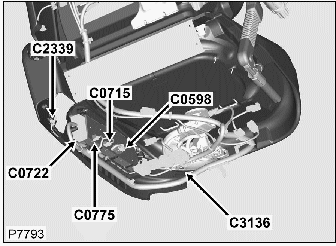

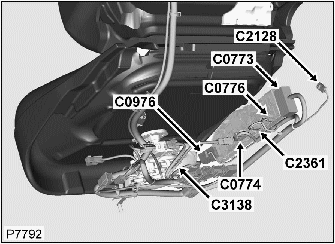

| Component | Location |
|---|---|
| ABS Module | Left rear of engine compartment. See Figure. |
| AFS Control Module | Behind left kick panel. See Figure. |
| Air Suspension Control Module (C0867) | Behind right side of dash. See Figure. |
| Climate Control Module (C1629 & C1630) | Behind center console. See Figure. |
| Climate Control Seat Module (Driver) (C3140) | Under driver's seat. See Figure. |
| Condenser Fan Control Unit (C0280) | Top of radiator. See Figure. |
| Cushion Climate Module (Driver's) (C3136) | Under driver's seat. See Figure. |
| Cushion Climate Module (Front Passenger's) (C3138) | Under front passenger's seat. See Figure. |

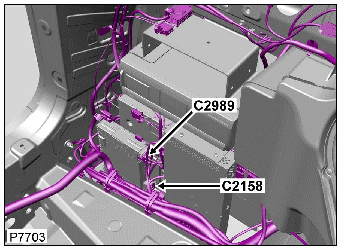

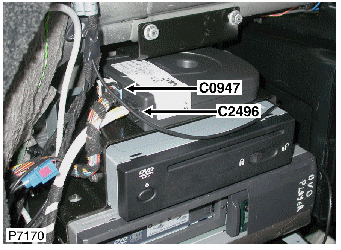

| DAB/DARS Tuner Module (C2158) | Left side of luggage compartment. See Figure. |
| Driver's Door Module (C2017, C2058 & C2271) | In driver's door. See Figure. |

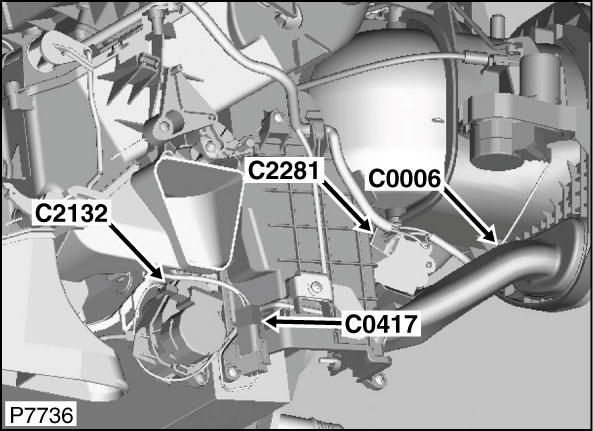

| Front Blower Motor Control Unit (C2281) | Behind center of dash. See Figure. |
| Fuel Pump Driver Module | Under rear seat. See Figure. |

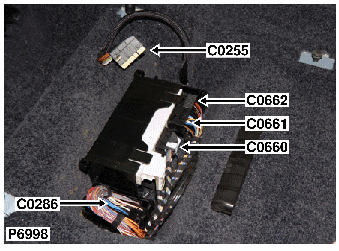

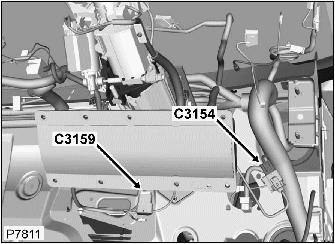

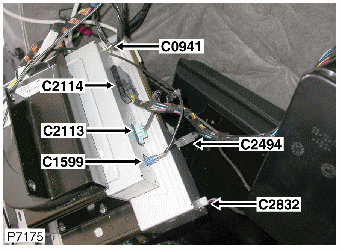

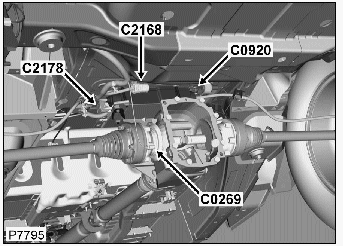

| Generic Electronic Module (C0660) | Under front passenger's seat. See Figure. |
| Generic Electronic Module (C0661) | Under front passenger's seat. See Figure. |
| Generic Electronic Module (C0662) | Under front passenger's seat. See Figure. |
| Lighting Switch Module (C0937) | Behind right kick panel. See Figure. |
| Lighting Switch Module (C2039) | Behind right kick panel. See Figure. |
| Lighting Switch Module (C2040) | Behind right kick panel. See Figure. |
| Lower Air Bag (Driver) (C3154) | On underside of steering column. See Figure. |
| Memory Control Module (C0598) | Under driver's seat. See Figure. |
| Navigation System Module (C1599) | Left side of luggage compartment. See Figure. |
| Parking Aid Module (C0957, C0958 & C1457) | At right side of luggage compartment. See Figure. |
| Parking Brake Module (C2178) | Under rear of vehicle. See Figure. |
| Passenger Door Module (C2016 & C2057) | In front passenger's door. See Figure. |

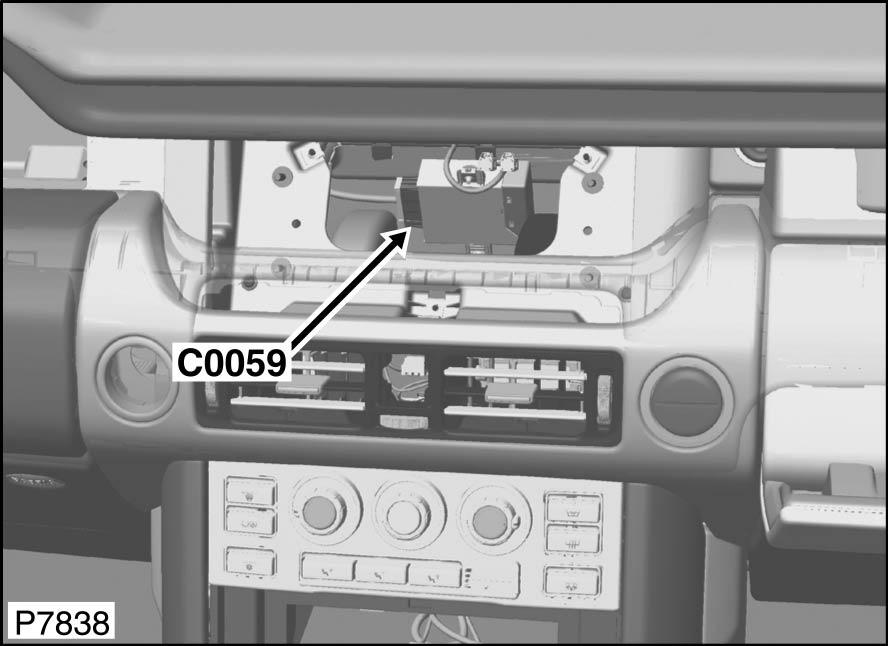

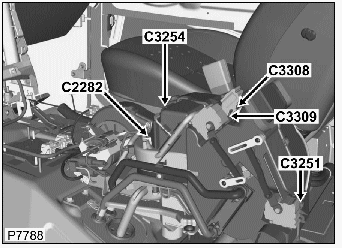

| Passive Anti-Theft System (PATS) Module (C0059) | Under top center of dash. See Figure. |
| Rear Automatic Temperature Control Module (Driver) (C3225) | Under driver's seat. See Figure. |
| Rear Blower Motor Control Unit (C2282) | Under center console. See Figure. |

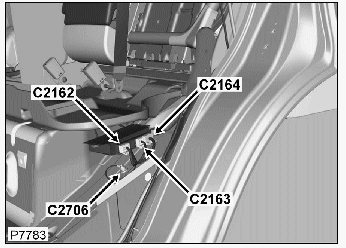

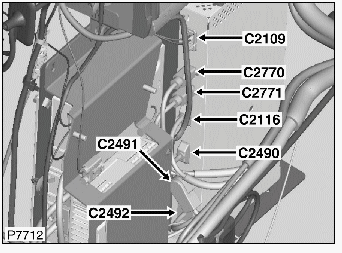

| Rear Differential Control Module (C2162) | Below left rear seat. See Figure. |
| Rear Seat Entertainment Module (C2109) | Left side of luggage compartment. See Figure. |

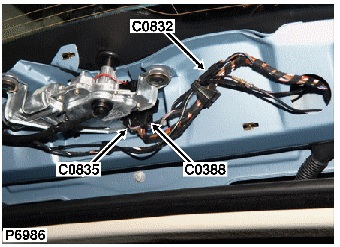

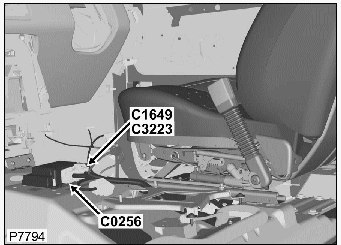

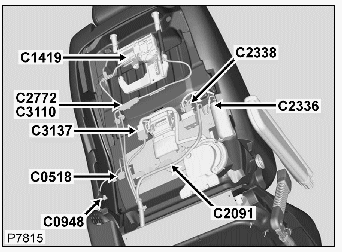

| Rear Window Wiper ECU (C0388) | Center of tailgate. See Figure. |
| Restraints Control Module (RCM) (C0256) | Under center console. See Figure. |
| Roof Opening Panel Control Module (C0784) | At center front of roof. See Figure. |
| Seat Back Climate Module (Driver's) (C3137) | In driver's seat back. See Figure. |

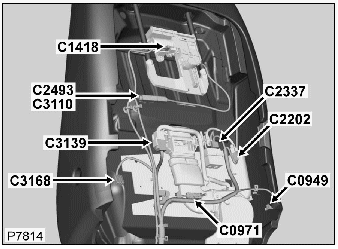

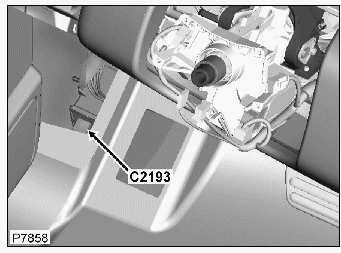

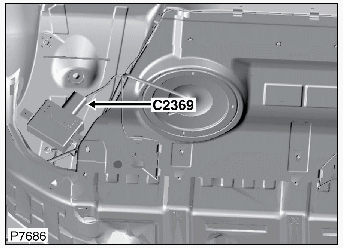

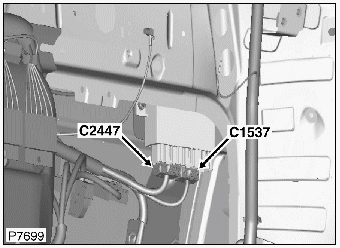

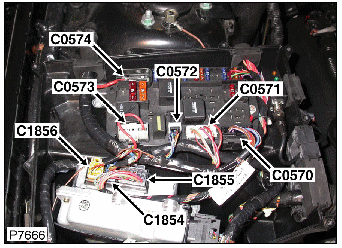

| Seat Back Climate Module (Front Passenger's) (C3139) | In front passenger's seat back. See Figure. |
| Steering Column Locking Module (C2055) | At top of steering column. See Figure. |
| Telephone Module | Left side of luggage compartment. See Figure. |
| Tire Pressure Monitoring System Module (C1537) | Under front passenger's seat. See Figure. |
| Transfer Box Control Module (C1854) | Inside E-box. See Figure. |
