Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Module (C0506) | Left rear of engine compartment. See Figure. |

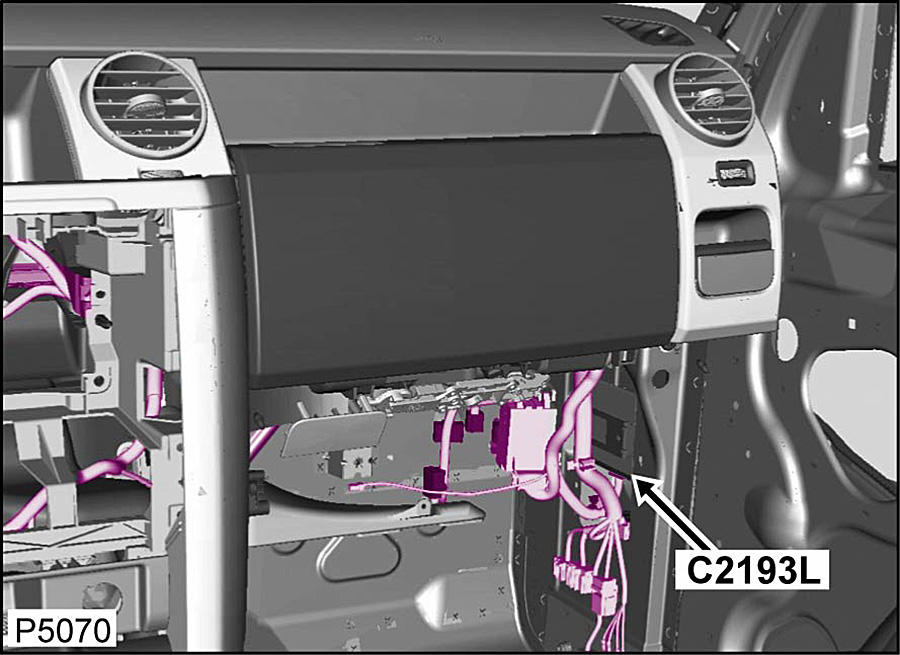

| AFS Control Module (C2193) | Base of right "A" pillar. See Figure. |

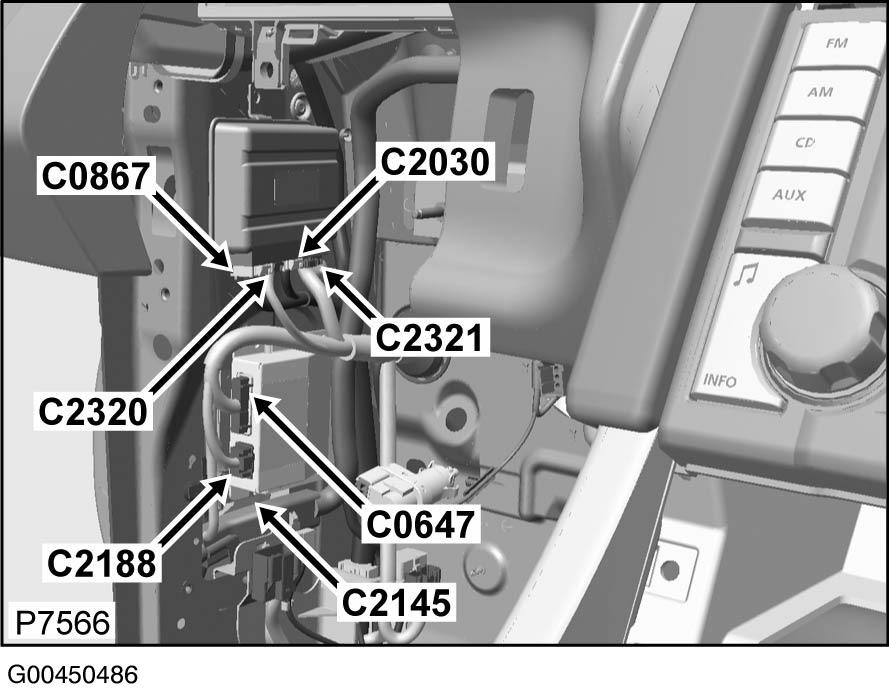

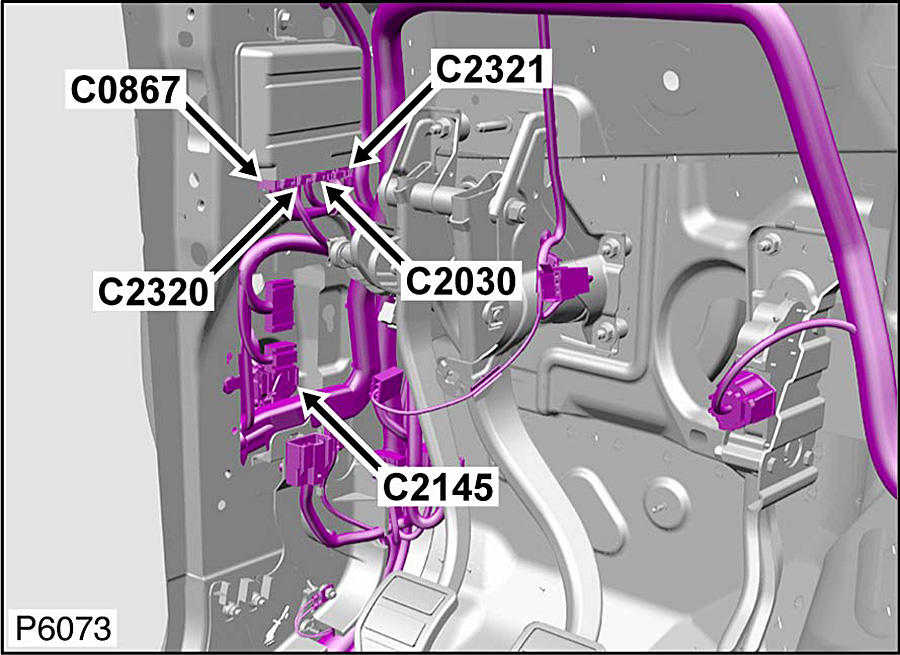

| Air Suspension Control Module Connector (C0867) | Base of left "A" pillar. See Figure. |
| Air Suspension Control Module Connector (C2030) | Base of left "A" pillar. See Figure. |

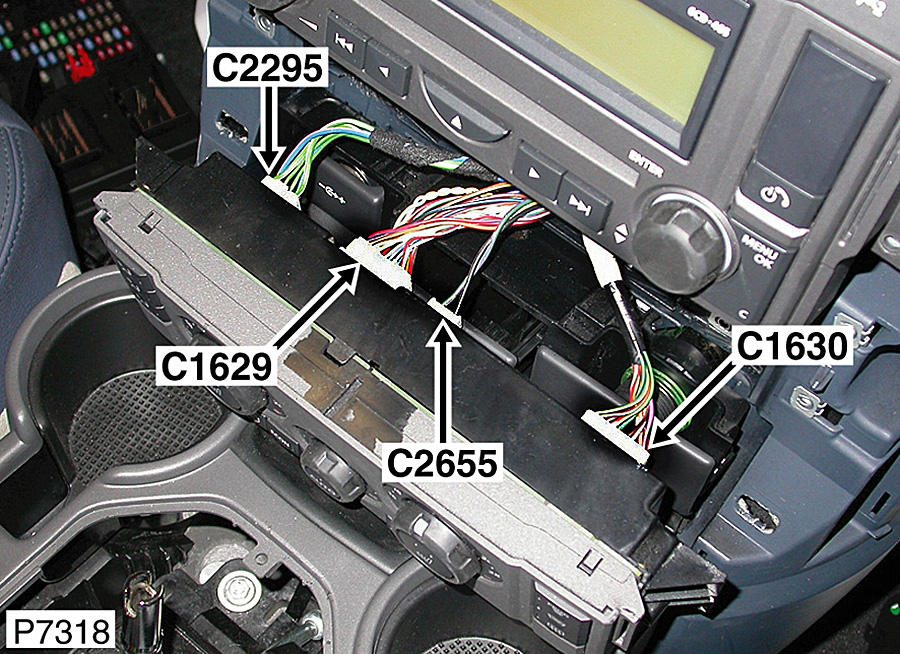

| Climate Control Module (C1630) | Behind center of dash. See Figure. |

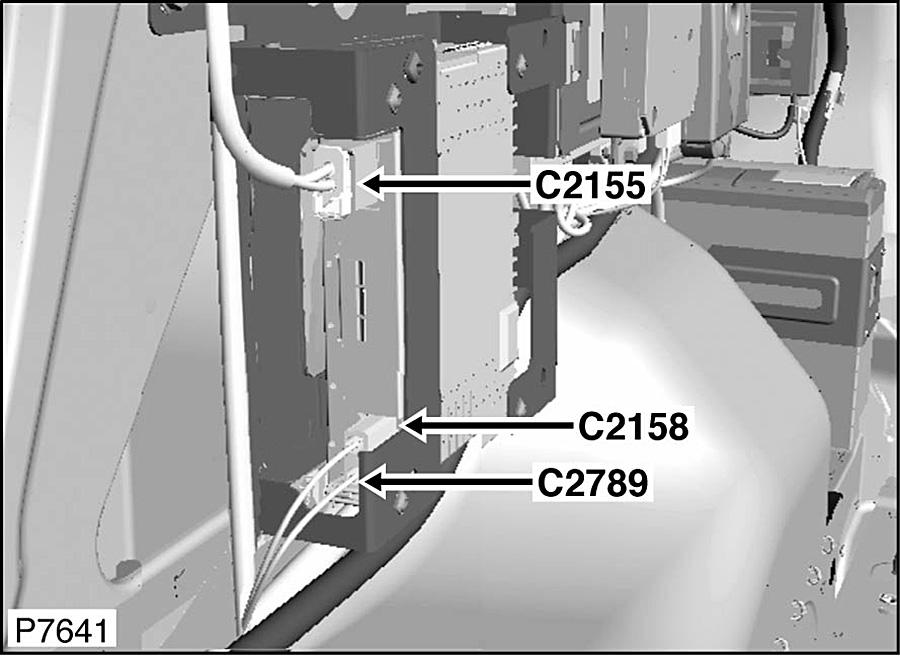

| DAB/SDARS Tuner Module (C2789) | Behind right rear trim panel. See Figure. |

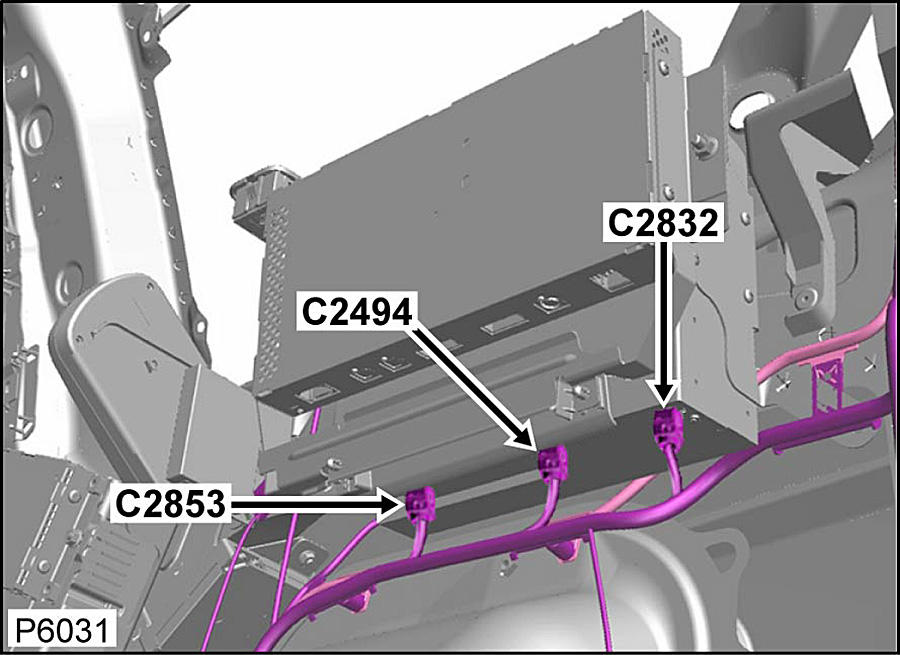

| DVD Module (C2832) | Behind right rear trim panel. See Figure. |
| Engine Control Module (ECM) Connector (C0872) | Left side of engine compartment. See Figure. |

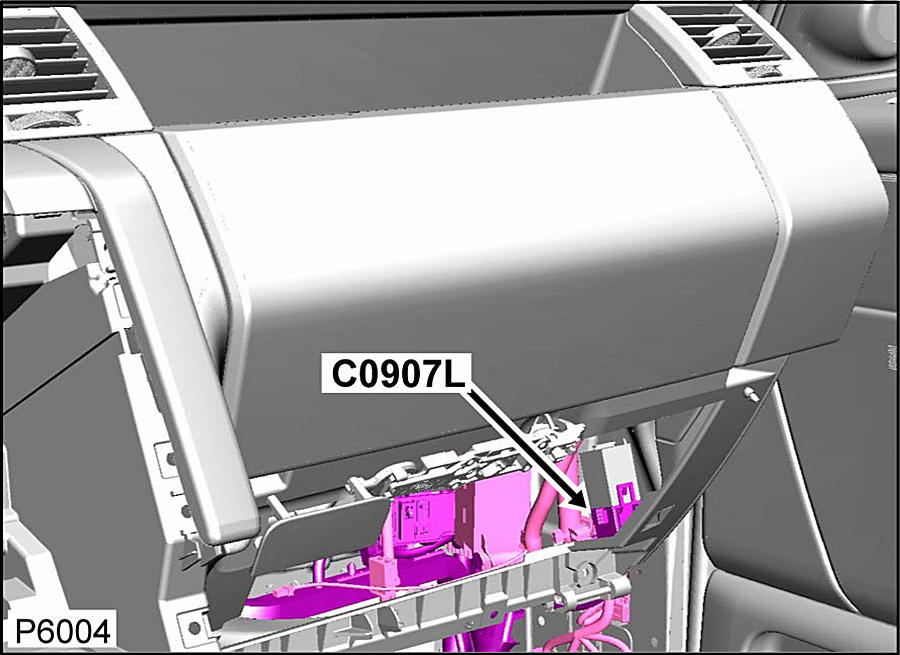

| Fold Back Module (C907) | Base of right "A" pillar. See Figure. |
| Front Blower Motor Control Module (C2281) | On front blower motor assembly. See Figure. |

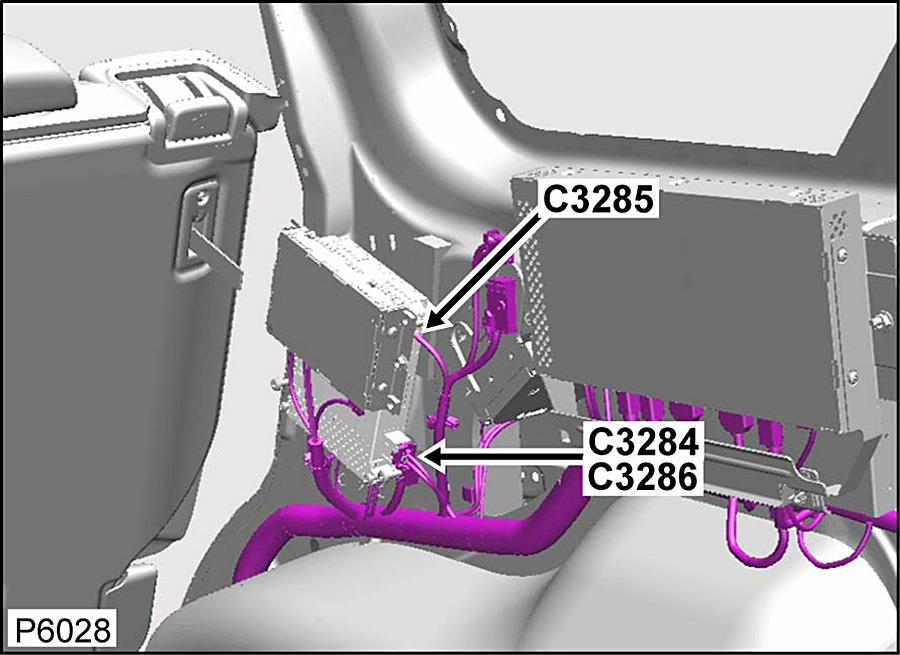

| IBOC Radio Module (C3286) | Right rear quarter trim panel. See Figure. |
| Memory Control Module (C2383) | Under driver's seat. See Figure. |
| Navigation System Module (C2113) | Under front passenger's seat. See Figure. |
| Parking Aid Module Connector (C0958) | Base of left "C" pillar. See Figure. |
| Parking Aid Module Connector (C1457) | Base of left "C" pillar. See Figure. |
| Parking Aid Module (C0957) | Base of left "C" pillar. See Figure. |
| Parking Brake Module Connector (C2178) | Under center of vehicle. See Figure. |
| Rear Automatic Temperature Control Module (C0965) | Behind center of headliner. See Figure. |

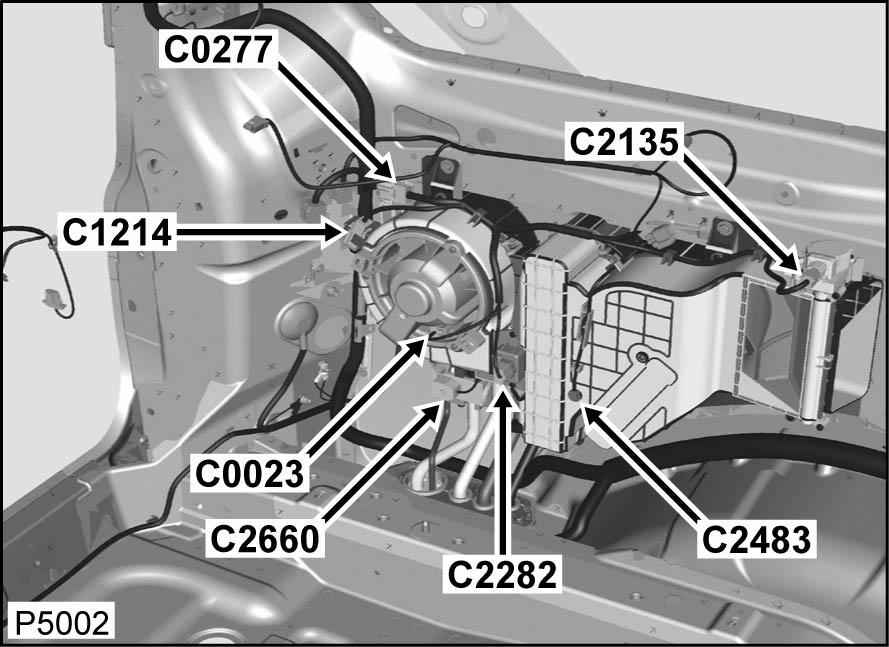

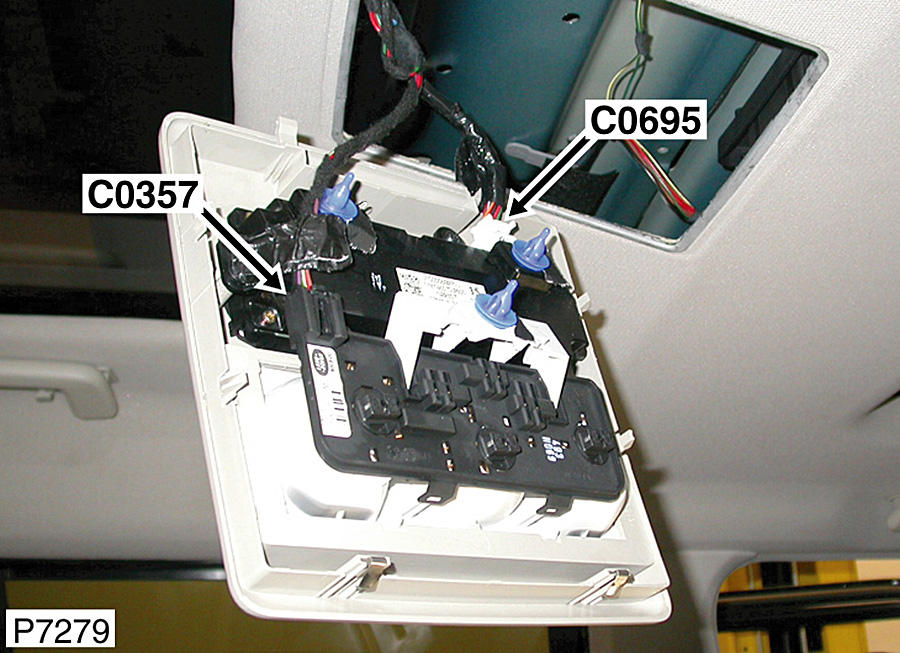

| Rear Blower Motor Control Unit (C2282) | On rear blower motor assembly. See Figure. |
| Rear Differential Control Module (C2162) | At left "C" pillar. See Figure. |
| Rear Seat-Entertainment Module (C2109) | Right rear trim panel. See Figure. |
| Restraints Control Module Connector (C0256) | Under center console. See Figure. |
| Restraints Control Module (C1649) | Under center console. See Figure. |
| Roof Opening Panel Control Module (C0784) | At center front of roof. See Figure. |
| Seat Heater Module Connector (Left Rear) (C2042) | Under rear seat. See Figure. |
| Seat Heater Module Connector (Right Rear) (C2043) | Under rear seat. See Figure. |
| Speed Control Module (C2145) | Left kick panel. See Figure. |

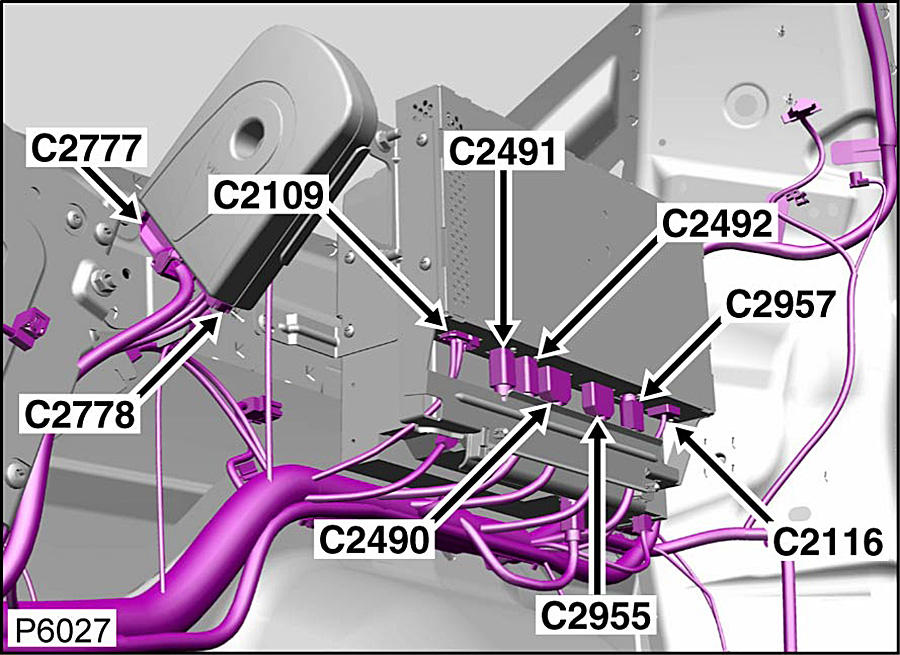

| Telephone Module (C2777) | Behind right rear trim panel. See Figure. |

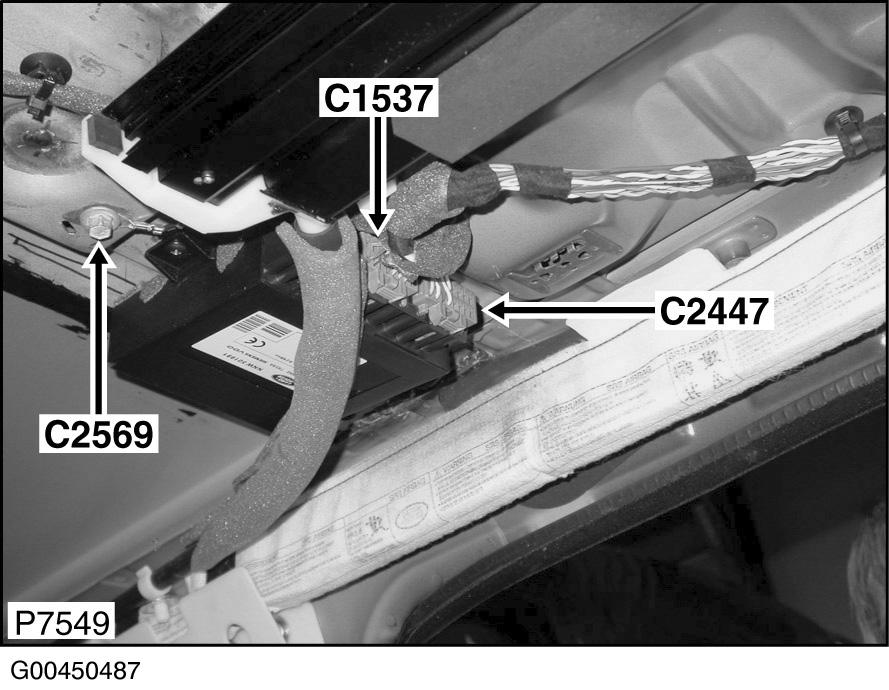

| Tire Pressure Monitoring System Module (C1537) | Center of headliner. See Figure. |
| Transfer Box Control Module Connector (C1319) | At rear of engine compartment. See Figure. |
| Transmission Control Module (C0193) | On transmission. See Figure. |
