Relay Circuit

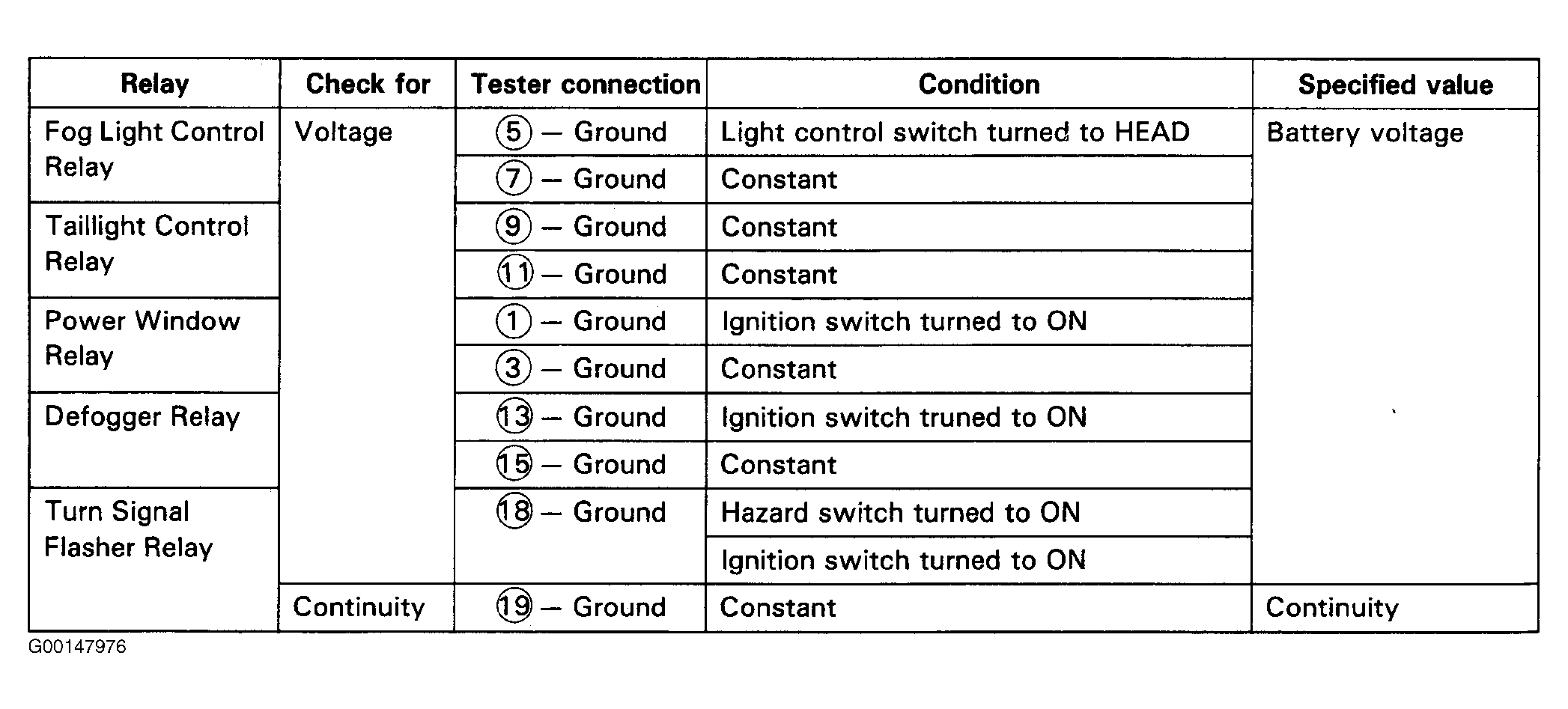

Remove the relay from the junction block and inspect the connector on junction block side. See Fig 1 and Fig 2 . If the circuit is not as specified, see WIRING DIAGRAMS and inspect the circuits connected to other parts.
Remove the relay from the junction block and inspect the connector on junction block side. See Fig 1 and Fig 2 . If the circuit is not as specified, see WIRING DIAGRAMS and inspect the circuits connected to other parts.
