Buckle Switch

  1. Check that there is continuity between terminals on the switch side connector with the switch ON (belt fastened). See Fig 1.
  2. Check that there is no continuity between terminals on the switch side connector with the switch OFF (belt unfastened). See Fig 1.
  3. If operation is not as specified, replace the seat belt inner.

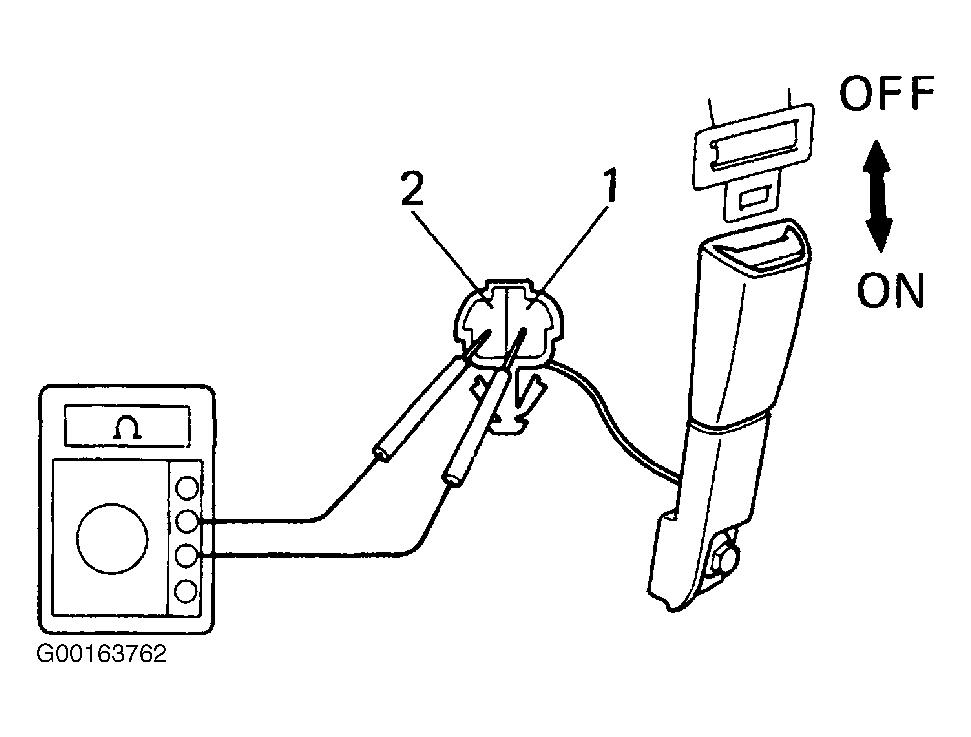

Fig 1: Inspecting Buckle Switch
G00163762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
