Circuit Opening Relay

Turn ignition off. Remove circuit opening relay from relay box behind driver's side kick panel. See Fig 1.
To test circuit opening relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 2.
To test circuit opening relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 3. Replace circuit opening relay if defective.

Fig 1: Circuit Opening Relay ID

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

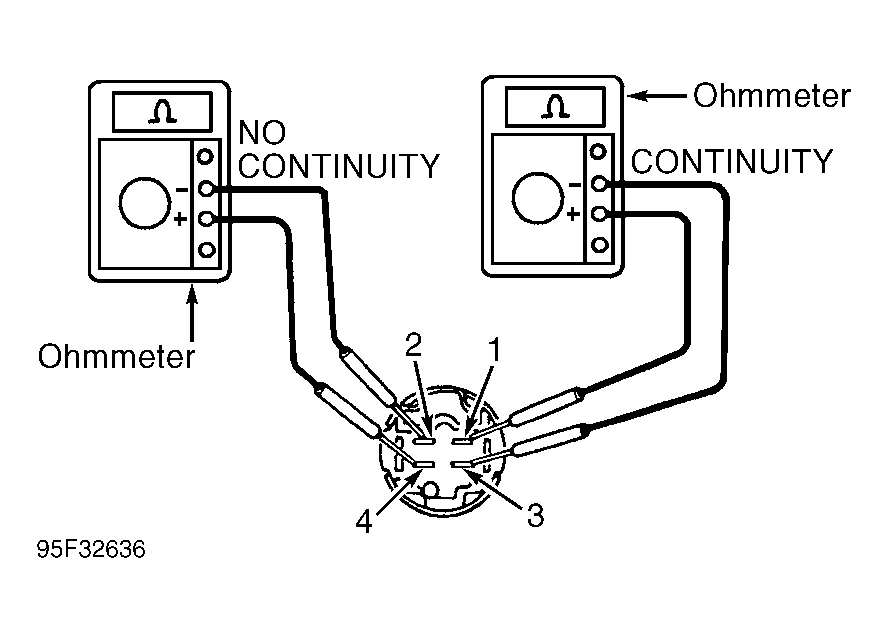

Fig 2: Testing Circuit Opening Relay Or EFI Main Relay - Continuity

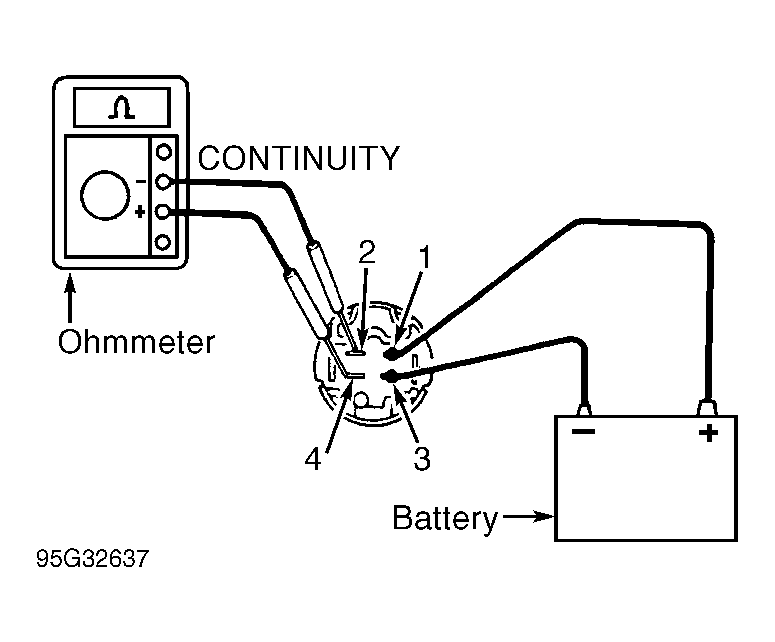

Fig 3: Testing Circuit Opening Relay Or EFI Main Relay - Operation
