Home >> Lexus >> 2002 >> GS 430 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry Systems >> Component Locations

Component Locations

For remote keyless entry component locations, see Fig 1.

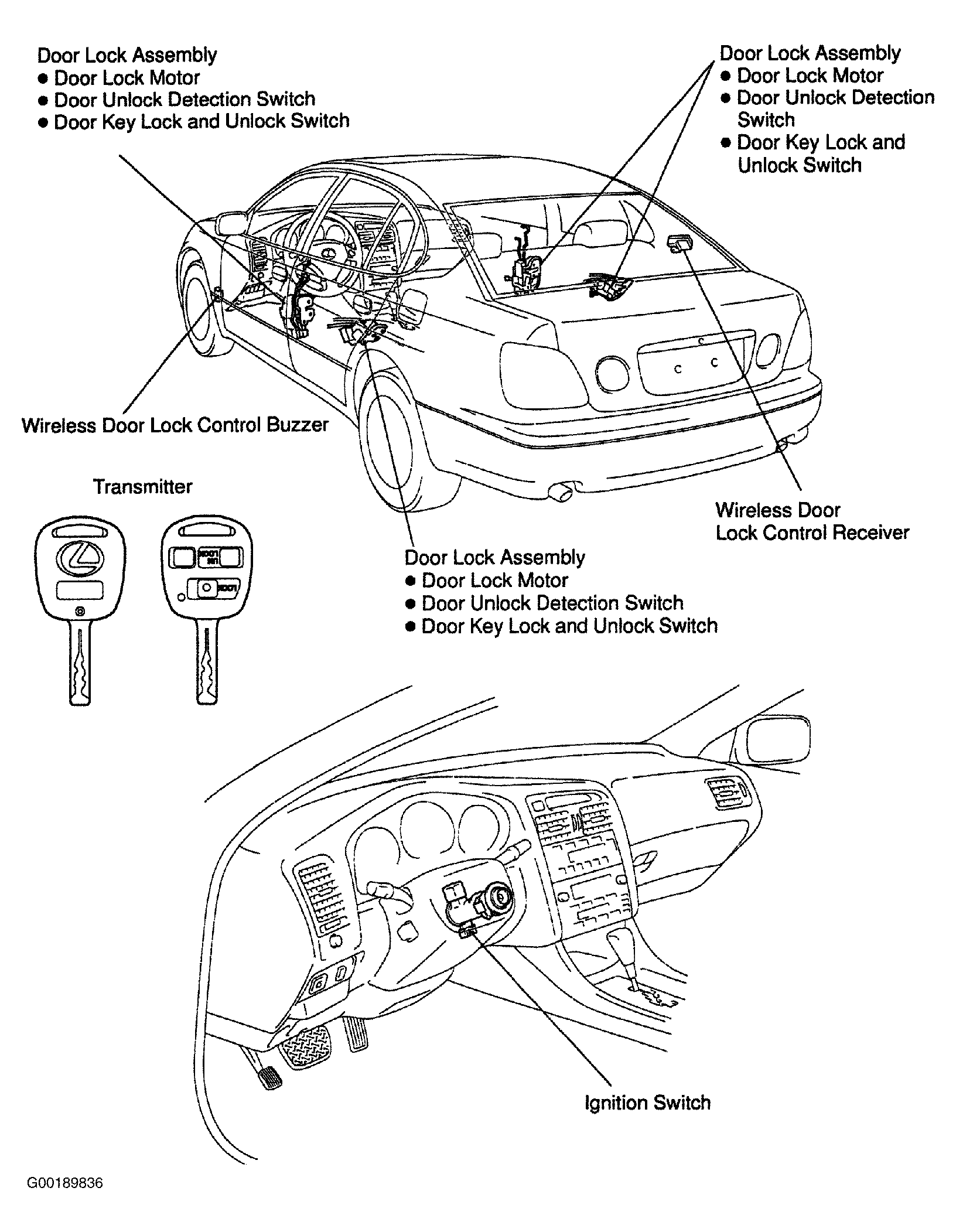

Fig 1: Identifying Remote Keyless Entry Component Locations

G00189836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
