Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Electronic Controller | In trunk, under package tray. |
| A/C Blower Motor Speed Controller | On center of evaporator case. |
| Air Suspension Control Module | On left trunk hinge support. |
| Anti-Theft Controller | In trunk, under right side of rear package tray. See Figure . |
| Autolight/Autodimmer Control | Behind instrument cluster, to right of headlight switch. |

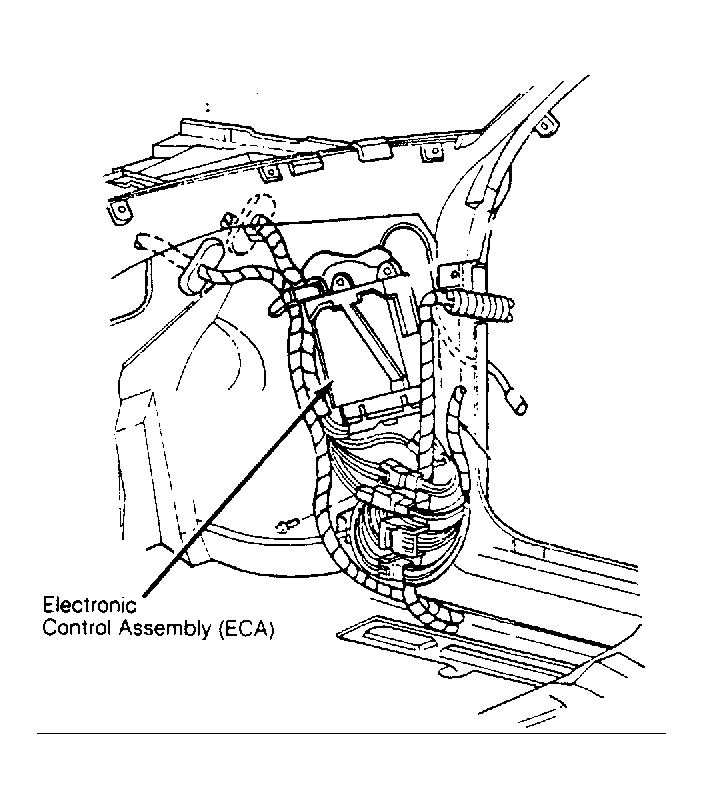

| Electronic Control Assembly (ECA) | Behind right kick panel. See Figure . |
| Keyless Entry Module | In trunk, under rear package tray. |
| Light-Out Warning Module | Behind instrument cluster, near steering column. See Figure . |
| TFI Ignition Module | On distributor, next to radiator hose. See Figure . |
| Tone Generator/Voice Alert Module | Below instrument cluster, near steering column. See Figure . |
| Warning Indicator Module | On center of dash. |
