Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

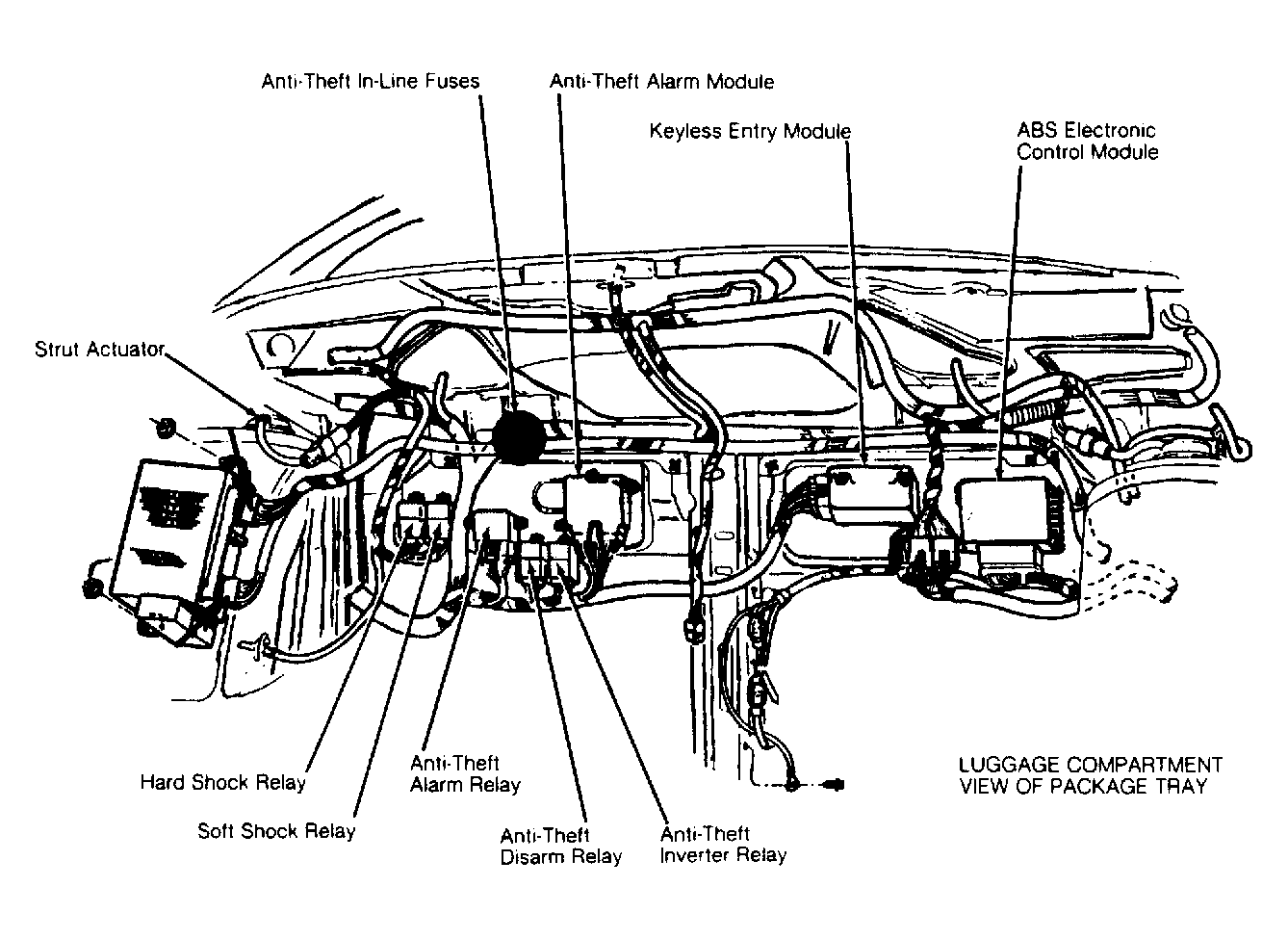

| Anti-Theft In-Line Fuses | In luggage compartment wiring harness, left of package tray. See Figure . | |
| Fusible Links | ||
| Charging System (Brown) C | Between right front fender and inner panel, on frame rail. | |
| Power Distribution (Blue) B | At starter relay. | |
| Power Distribution (Gray) A | At starter relay. | |
| Interior Fuse Block | Behind left side of dash, left of steering column. | |
| Power Distribution Fuse Block | In front of left front strut tower. See Figure . | |
