Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

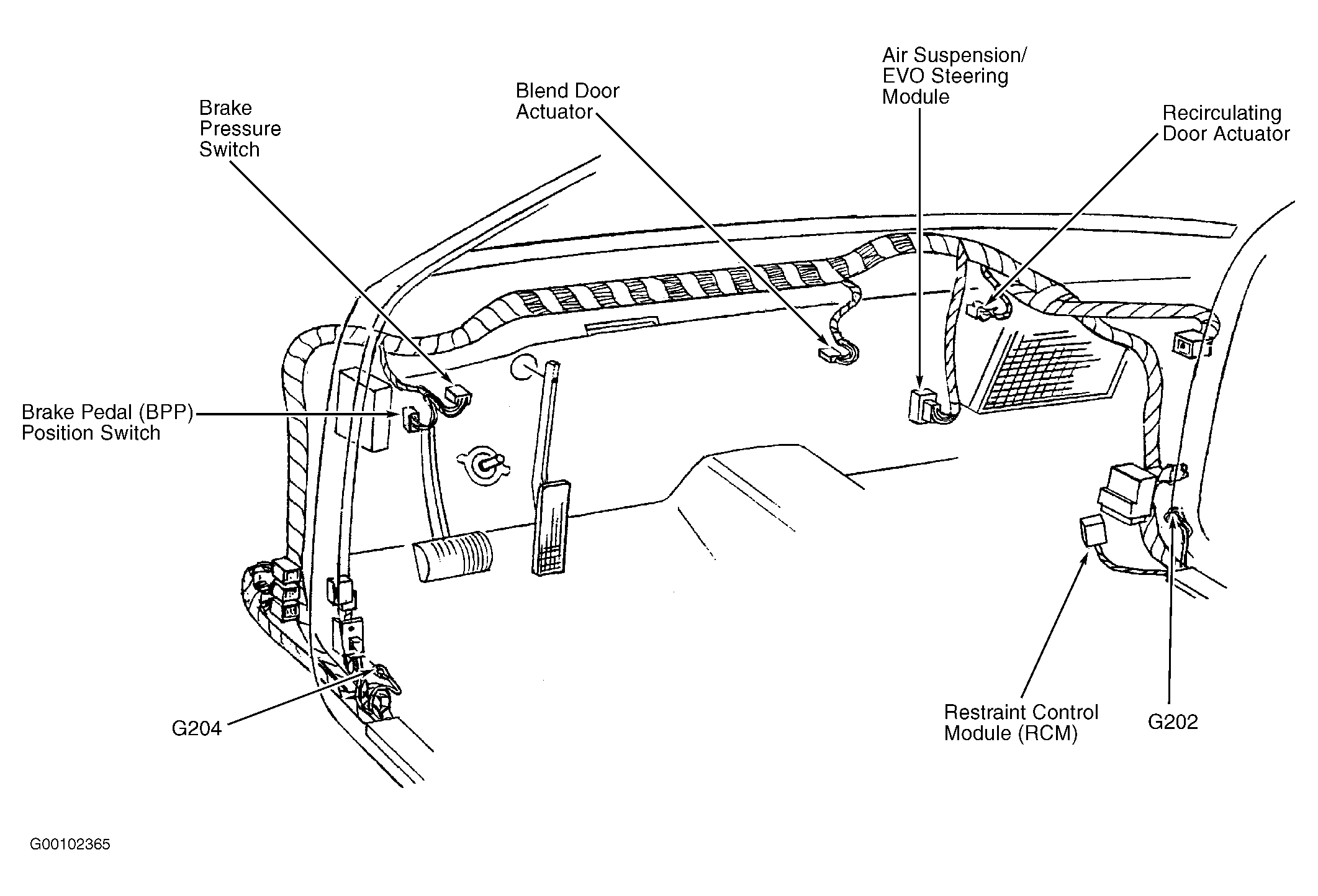

| Air Suspension/EVO Steering Module | Behind right side of dash. See Figure. |

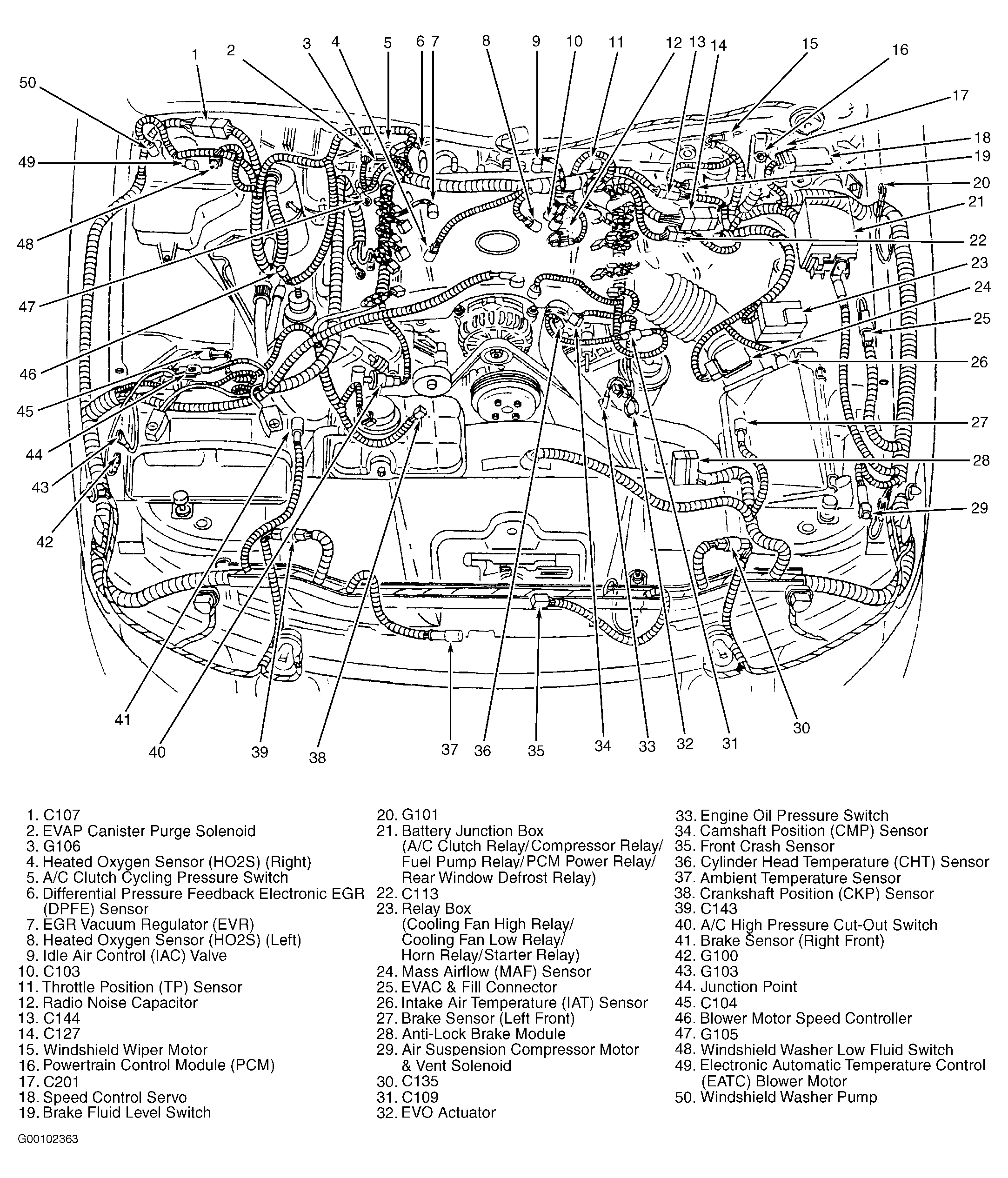

| Anti-Lock Brake Module | Under left side of upper radiator support. See Figure. |
| Blower Motor Speed Controller | In right rear of engine compartment, on evaporator. See Figure. |
| Compass Module | Center of windshield header, on mirror. |

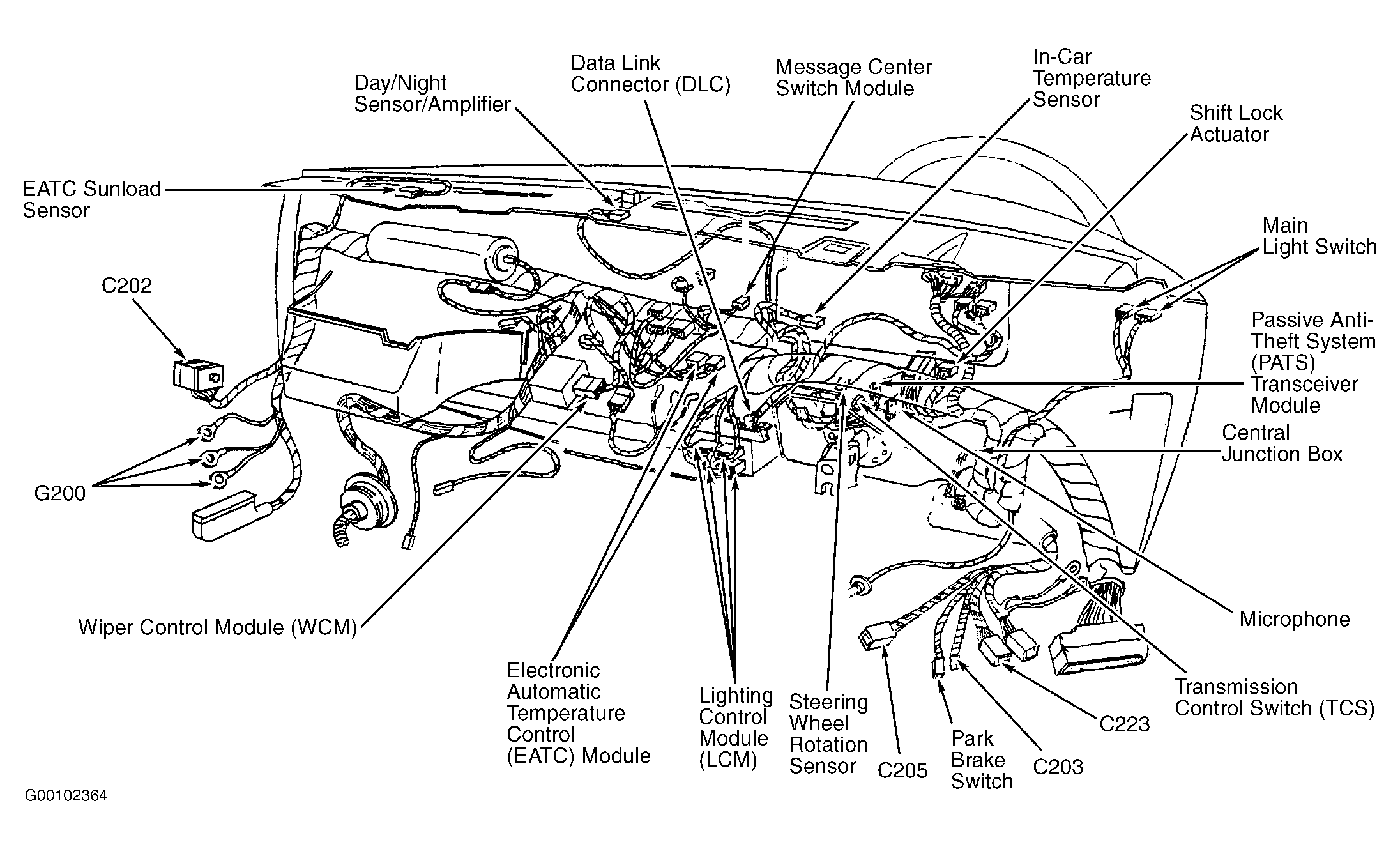

| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure. |
| Front Radio Control Unit | Behind center of dash. |
| Isolator/Radio Antenna Module | Center of package tray. |
| Left Front Door Module | In left front door. |
| Lighting Control Module (LCM) | Behind center of dash. See Figure. |
| Message Center Switch Module | On top left side of dash, right side of instrument cluster. See Figure. |
| Passive Anti-Theft System (PATS) Transceiver Module | Behind left side of dash. See Figure. |
| Powertrain Control Module (PCM) | Left rear of engine compartment, on firewall. See Figure. |
| Restraint Control Module (RCM) | Behind right side of dash, in front of air recirculation duct. See Figure. |
| Roof Opening Panel Electronic Control Unit | Center of headliner, behind roof opening panel. |
| Seat Heater Module (Left/Right) | On underside of respective front seat. |
| Seat Module (Left/Right) | On underside of respective front seat. |
| Wiper Control Module (WCM) | Behind center of dash. See Figure. |
