Home >> Lincoln >> 2002 >> Blackwood >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control >> Removal And Installation >> Anti-Lock Control Module

Anti-Lock Control Module

  1. Disconnect the battery ground cable.
  2. Remove the components in the order indicated in the following illustration and table.
  3. Install in the reverse order of removal.

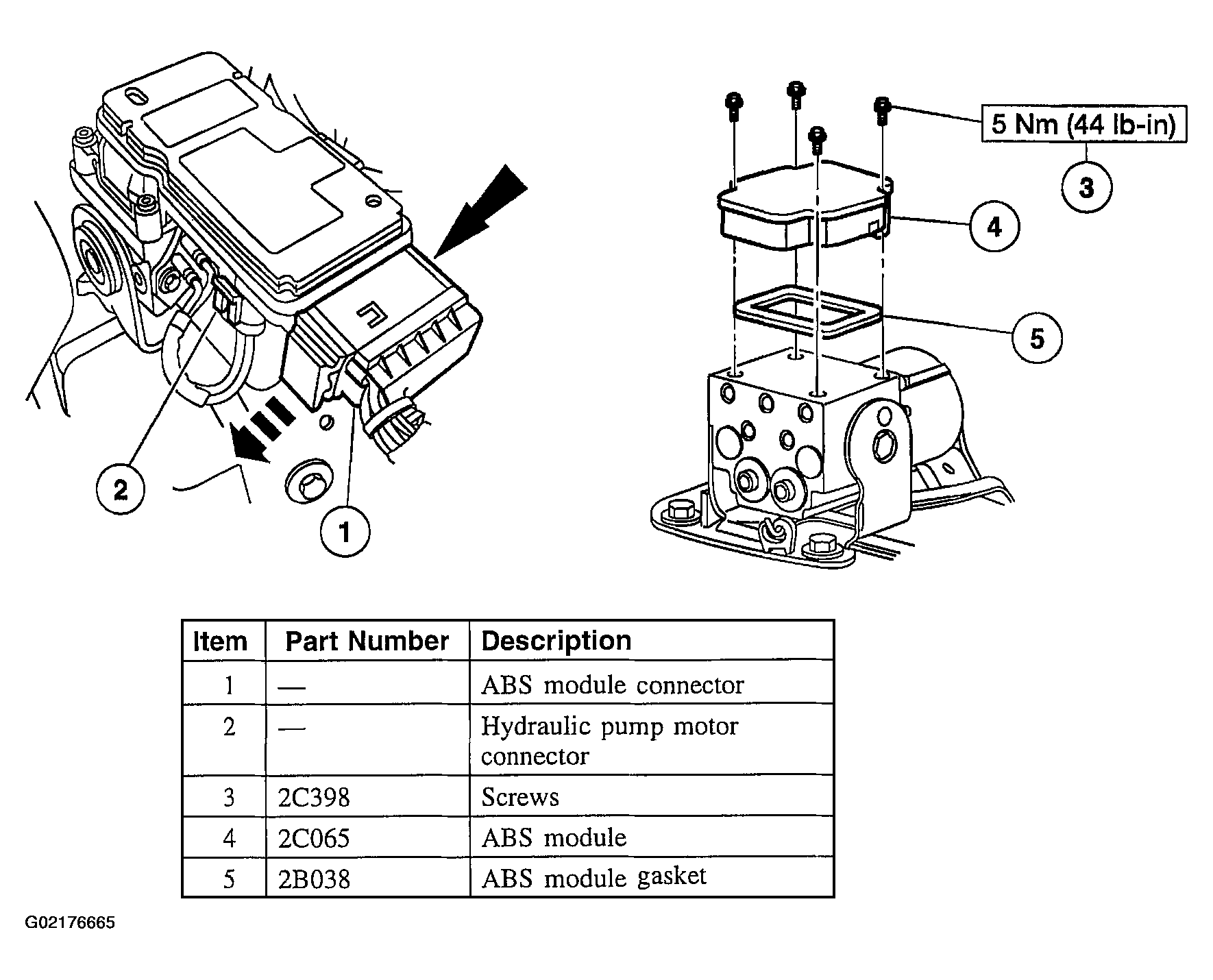

    Fig 1: Removing Sequence Of Anti-Lock Control Module
    G02176665Courtesy of FORD MOTOR CO.
