Home >> Lincoln >> 2002 >> Blackwood >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control >> Removal And Installation >> Front Wheel Speed Sensor >> Notes

Front Wheel Speed Sensor: Notes

  1. Remove the components in the order indicated in the following illustration and table.
  2. Install in the reverse order of removal.

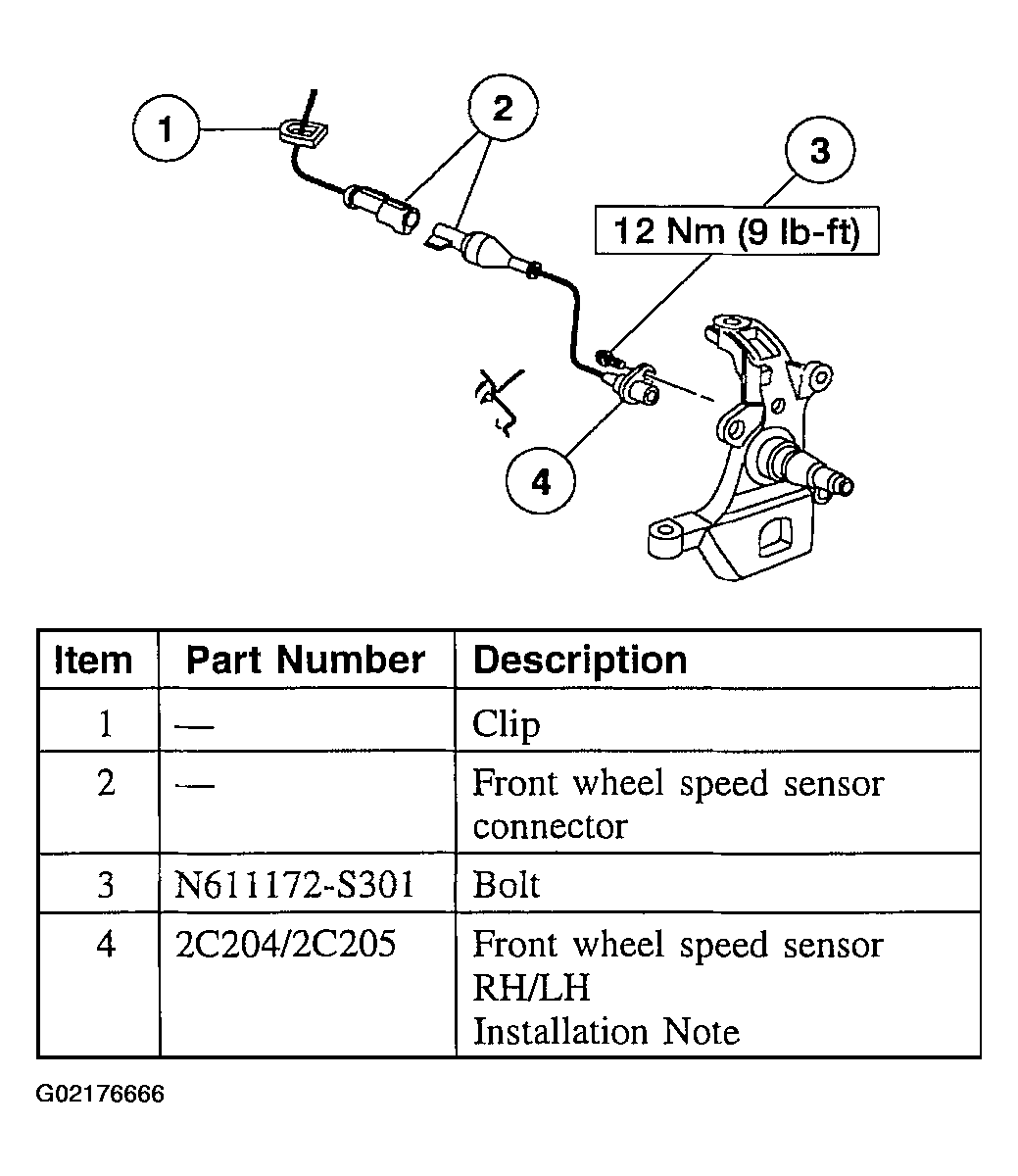

    Fig 1: Removing Sequence Of Front Wheel Speed Sensor
    G02176666Courtesy of FORD MOTOR CO.
