Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Under left side of upper radiator support. See Figure. |

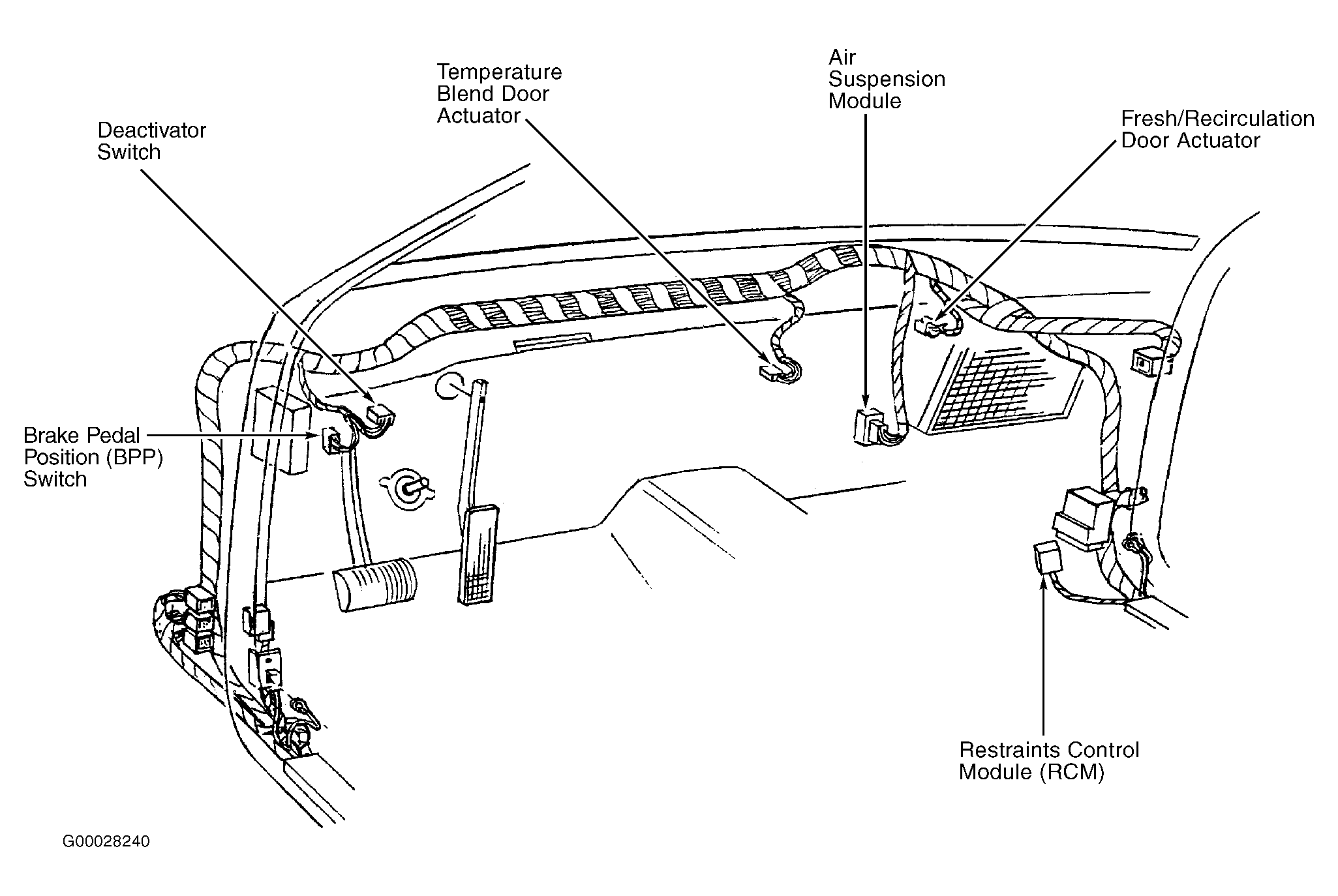

| Air Suspension Module | Behind right side of dash. See Figure. |
| Driver Door Module | In top front of driver's door. |
| Driver Seat Module | Under driver's seat. |

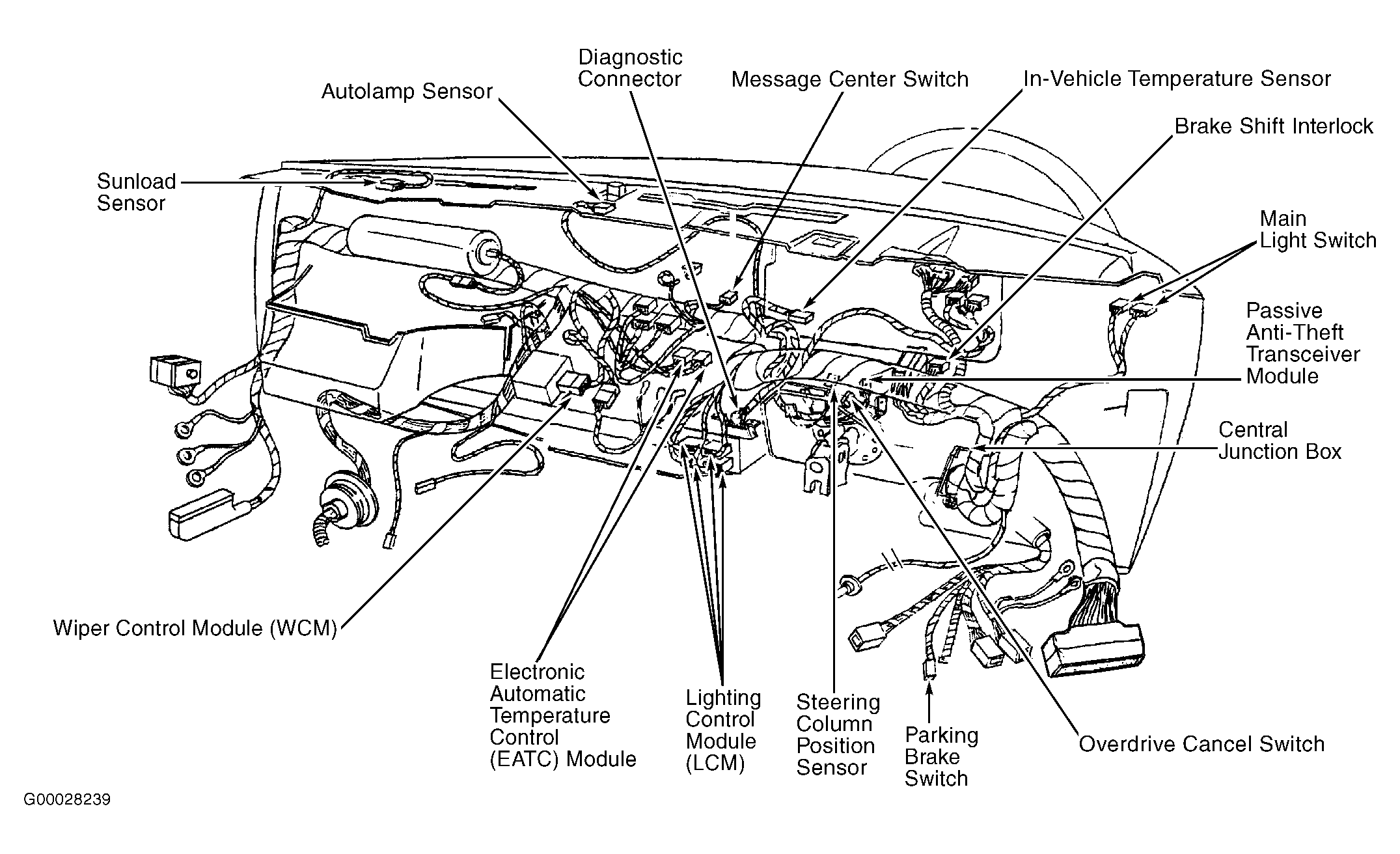

| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure. |
| Front Blower Motor Speed Controller | In right rear of engine compartment, on evaporator housing. See Figure. |
| Heated Seat Module (Driver Side Front/Passenger Side Front) | On underside of respective front seat. |
| Heated Seat Module (Left Rear/Right Rear) | On underside of respective rear seat. |
| Isolator/Radio Antenna Module | Center of package tray. |
| Lighting Control Module (LCM) | Behind center of dash. See Figure. |
| Passive Anti-Theft Transceiver Module | Behind left side of dash. See Figure. |
| Powertrain Control Module (PCM) | Left rear of engine compartment, on firewall. See Figure. |
| Restraints Control Module (RCM) | Behind right side of dash, in front of air recirculation duct. See Figure. |
| Wiper Control Module (WCM) | Behind center of dash. See Figure. |
