Component Locations

NOTE: For additional component locations, refer to illustrations. See Fig 1-Fig 3 .

COMPONENT LOCATIONS

Component	Location
Battery Junction Box	Left Side Of Engine Compartment On Fenderwell
Central Junction Box	Under Left Side Of Dash
Inertia Fuel Shutoff Switch	Left Rear Corner Of Luggage Compartment On Trim Support
Powertrain Control Module	Left Rear Of Engine Compartment
Relay Box	Left Side Of Engine Compartment, On Fenderwell
Starter Motor	Lower Right Hand Corner Of Engine
Starter Relay	In Underhood Relay Box
Transmission Range Sensor	Side Of Transmission

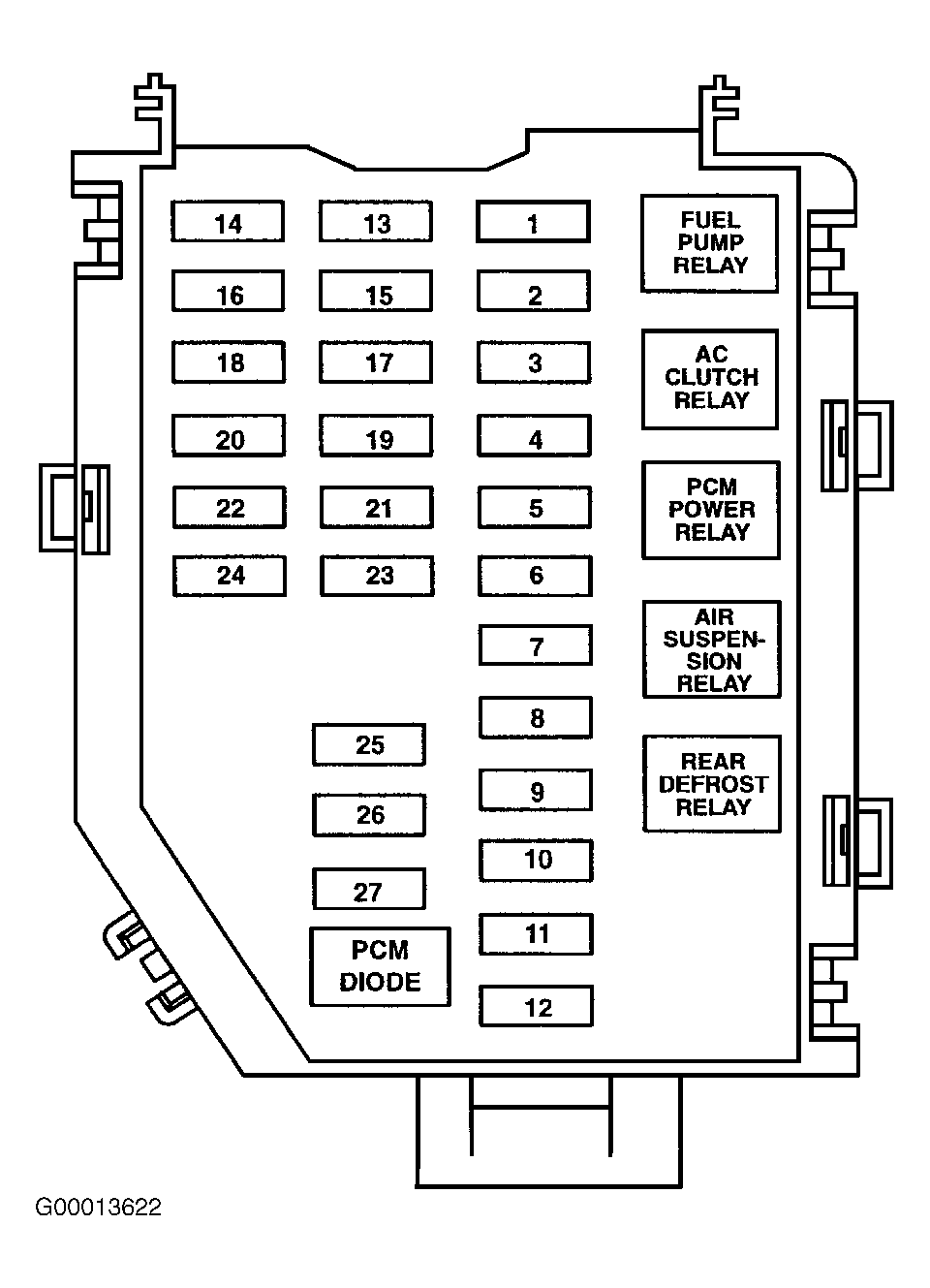

Fig 1: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

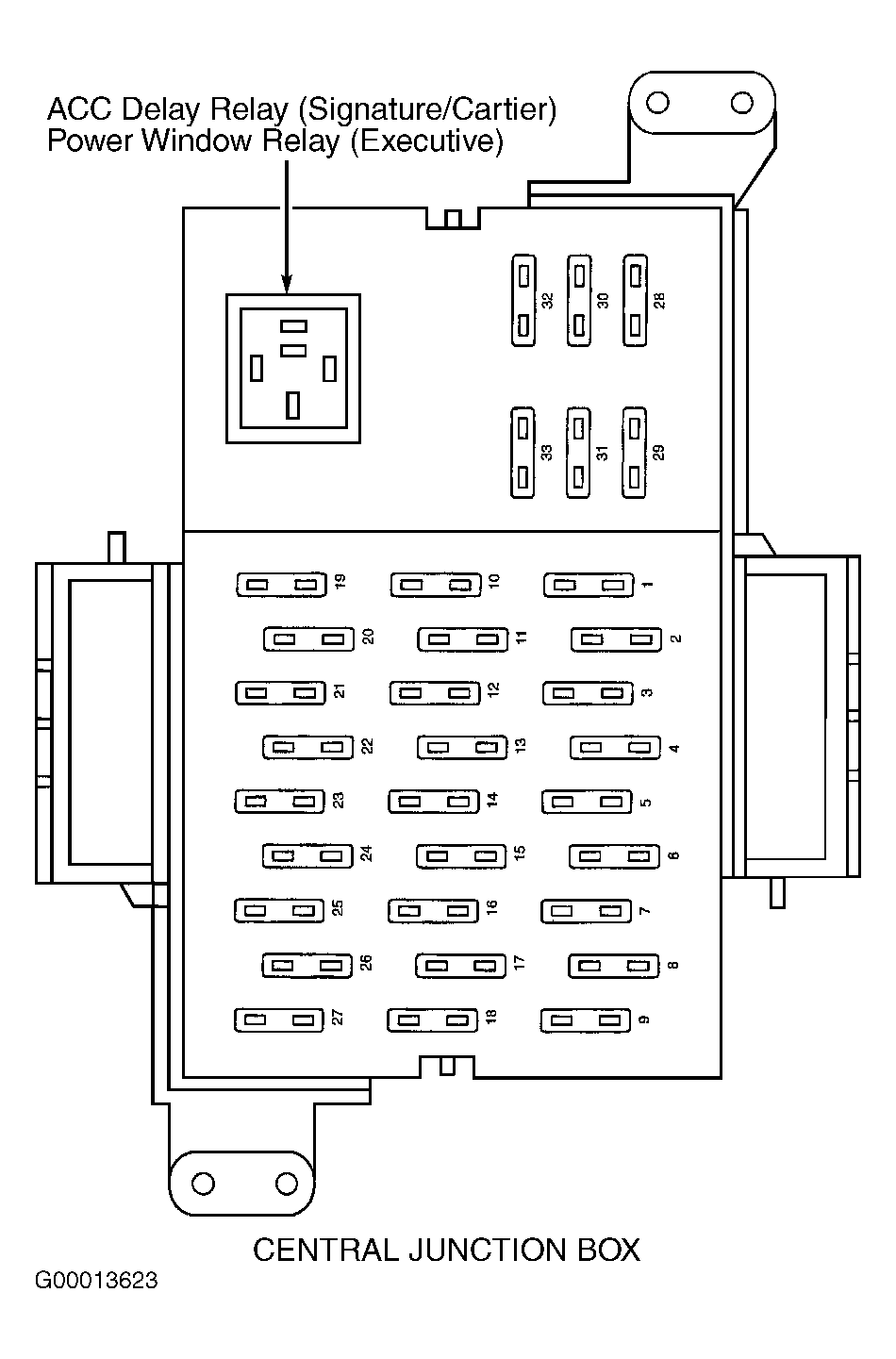

Fig 2: Identifying Central Junction Box Components

Courtesy of FORD MOTOR CO.

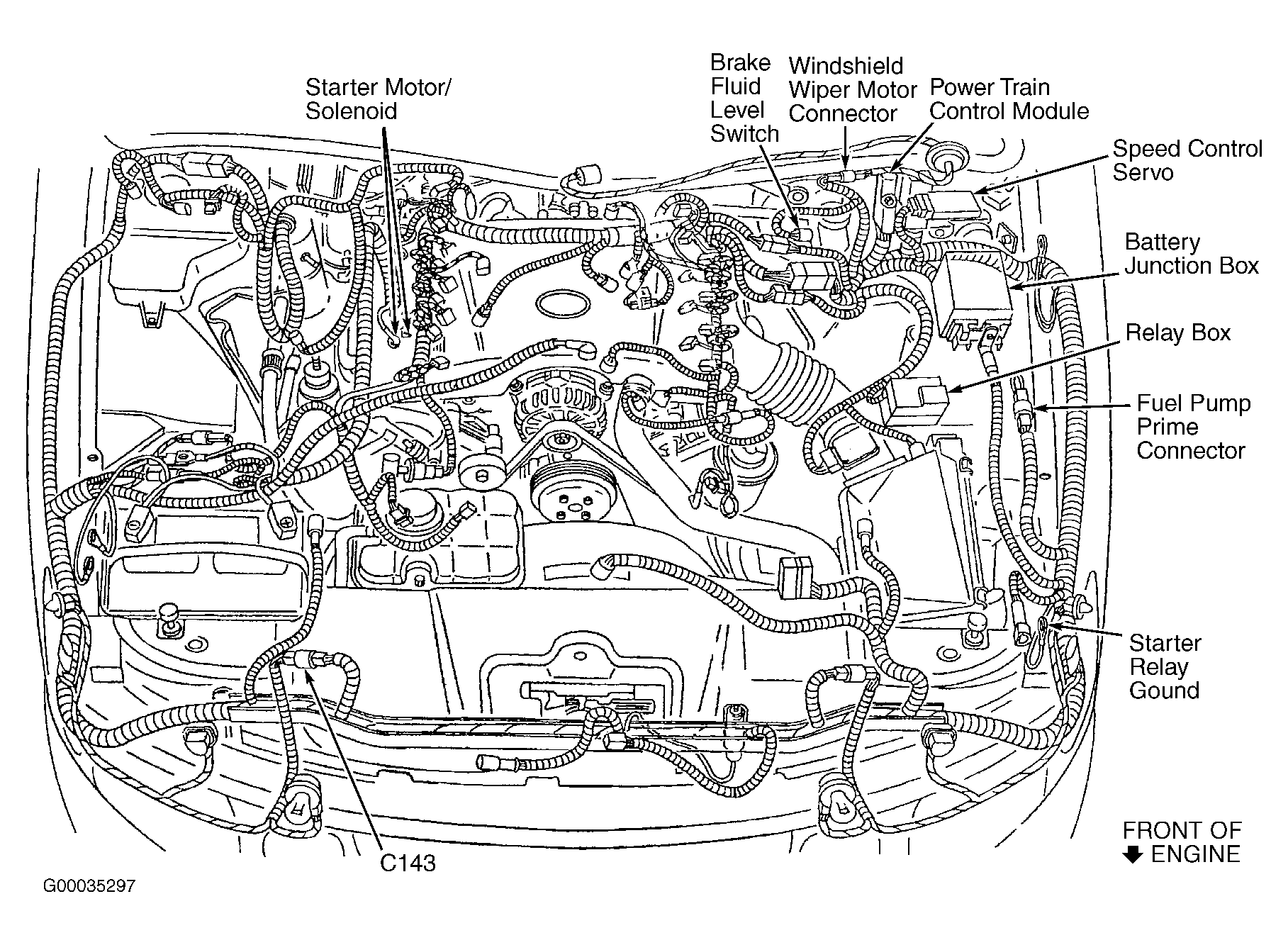

Fig 3: Locating Under Hood Components

Courtesy of FORD MOTOR CO.
