Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Block | ||

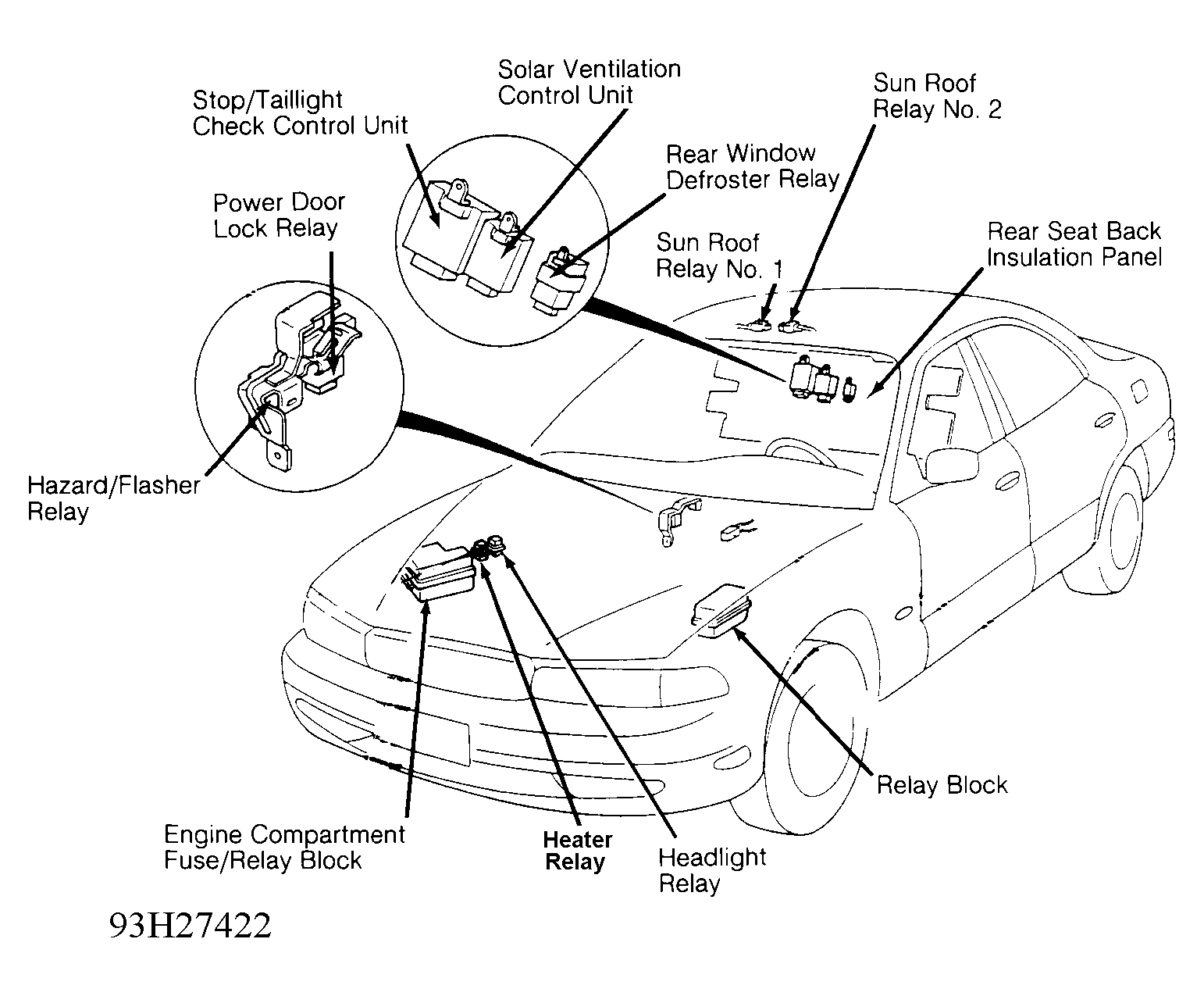

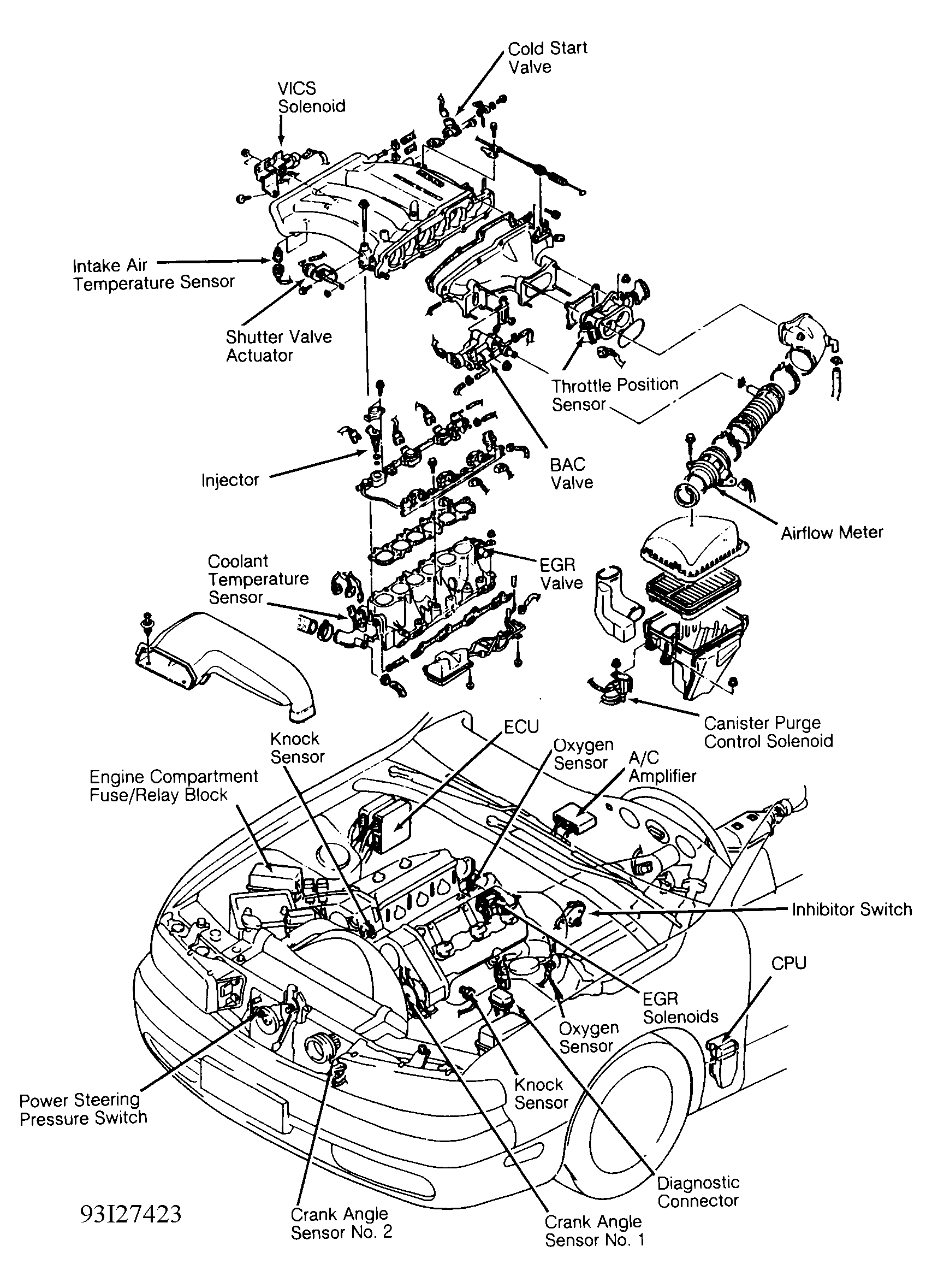

| Engine Compartment | On right front inner fender panel. See Figure & Figure . | |
| Passenger Compartment | Behind left side of dash, above kick panel. | |
| Fusible Links | On positive battery cable terminal. | |
| Relay Block | On left front inner fender panel. See Figure . | |
