Control Units

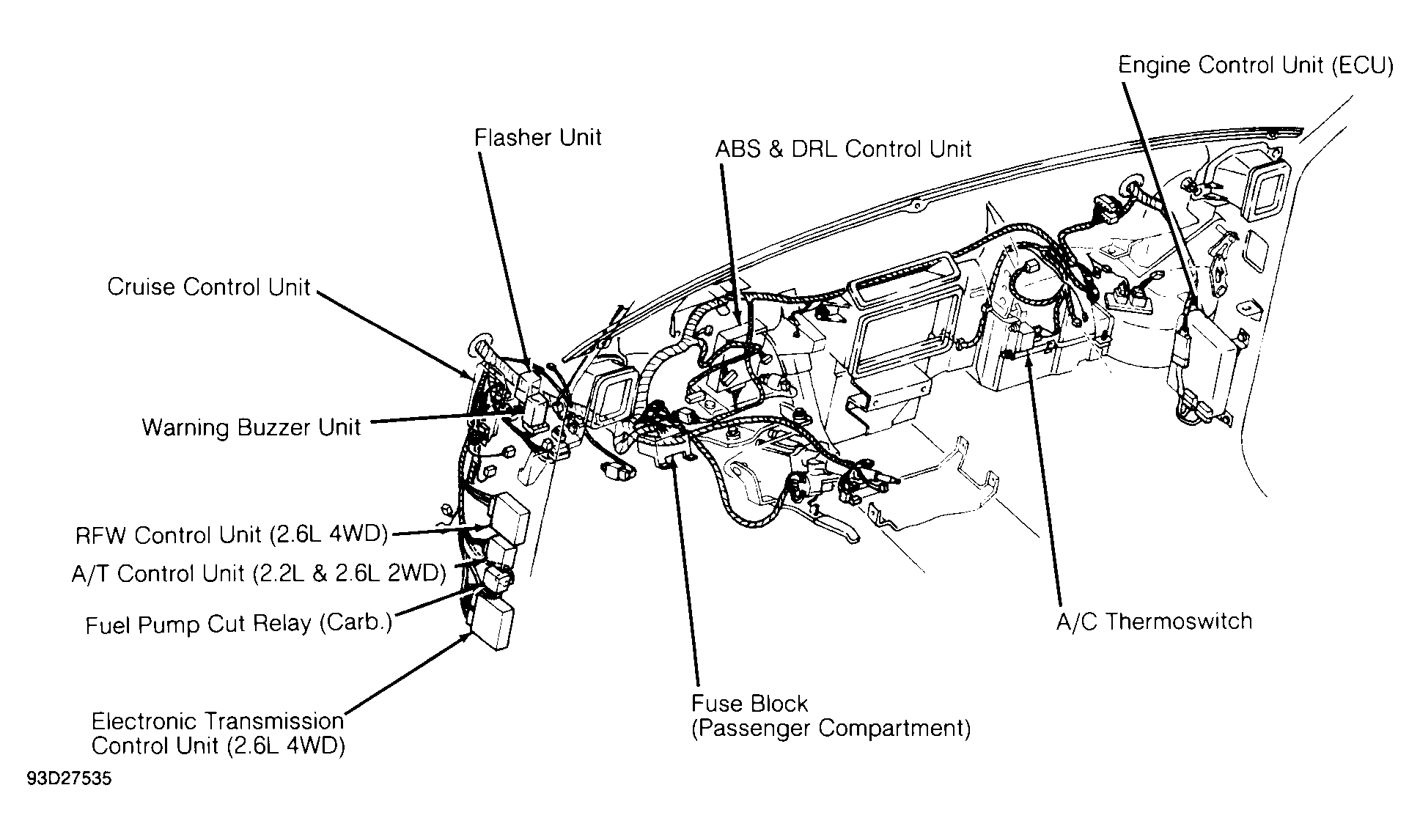

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS & DRL Control Unit | Behind center of dash. See Figure . |
| A/T Control Unit (2WD) | Behind left kick panel. See Figure . |
| Cruise Control Unit | Behind left side of dash, near kick panel. See Figure . |
| Electronic Transmission Control Unit (4WD) | Behind left kick panel. See Figure . |
| Engine Control Unit (ECU) | Behind right kick panel. See Figure . |
| Fuel Pump Control Unit (Carb.) | Under dash, on right side of steering column. |
| Remote Free Wheeling Hub (RFW) Control Unit (4WD) | Behind left kick panel. See Figure . |
