Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | On left side of luggage compartment, behind trim panel. | |
| Central Processing Unit | ||
| CPU No. 1 | Behind fuse block, under left side of dash. | |
| CPU No. 2 | Behind left kick panel. | |
| Cruise Control Unit | Behind left kick panel. | |

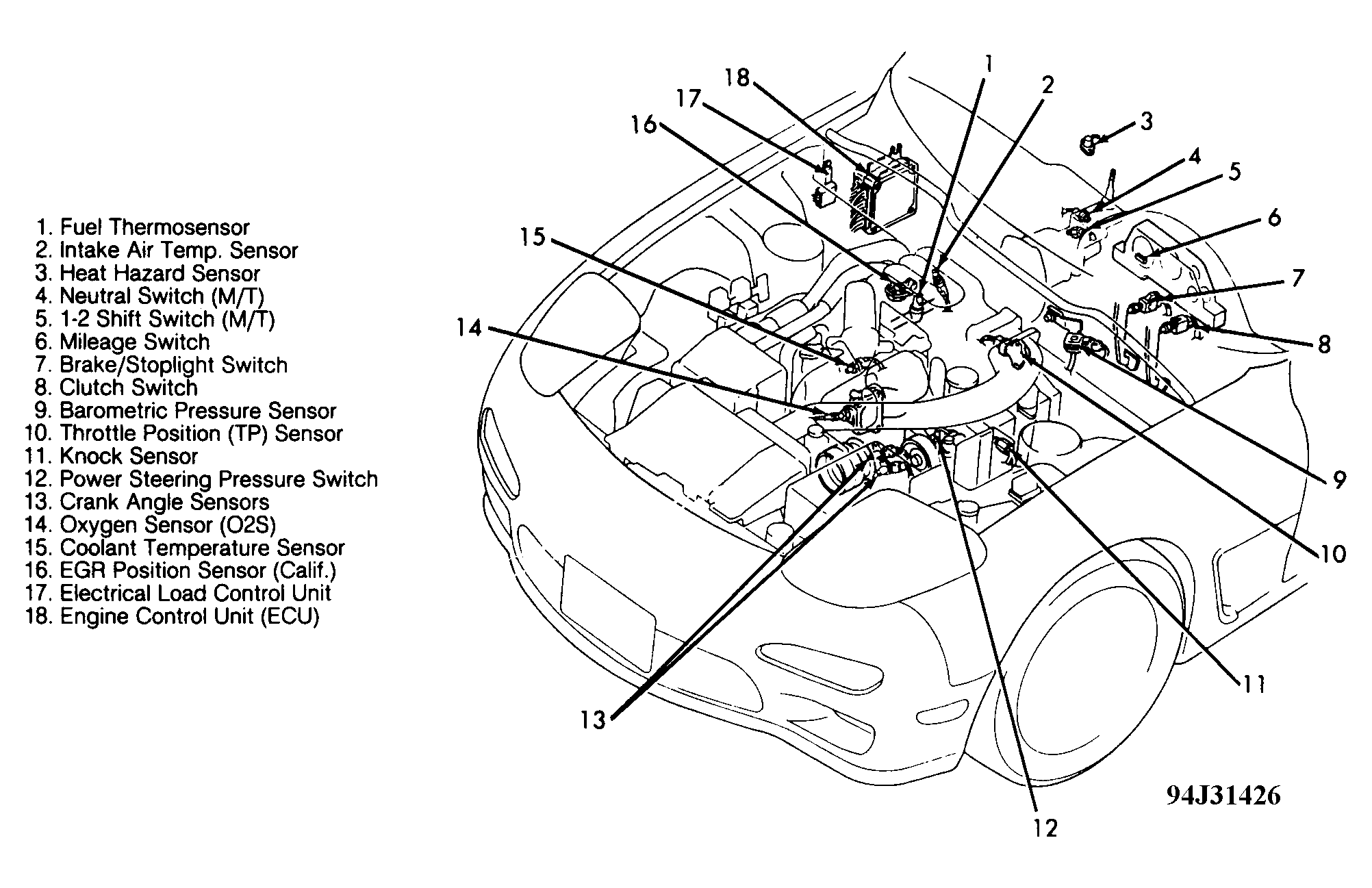

| Electrical Load Control Unit | Behind right kick panel, above ECU. See Figure . | |
| Engine Control Unit (ECU) | Behind right kick panel. See Figure . | |
| Shift Lock Control Unit | Under console, forward of shift lever. | |
