Control Units
CONTROL UNITS

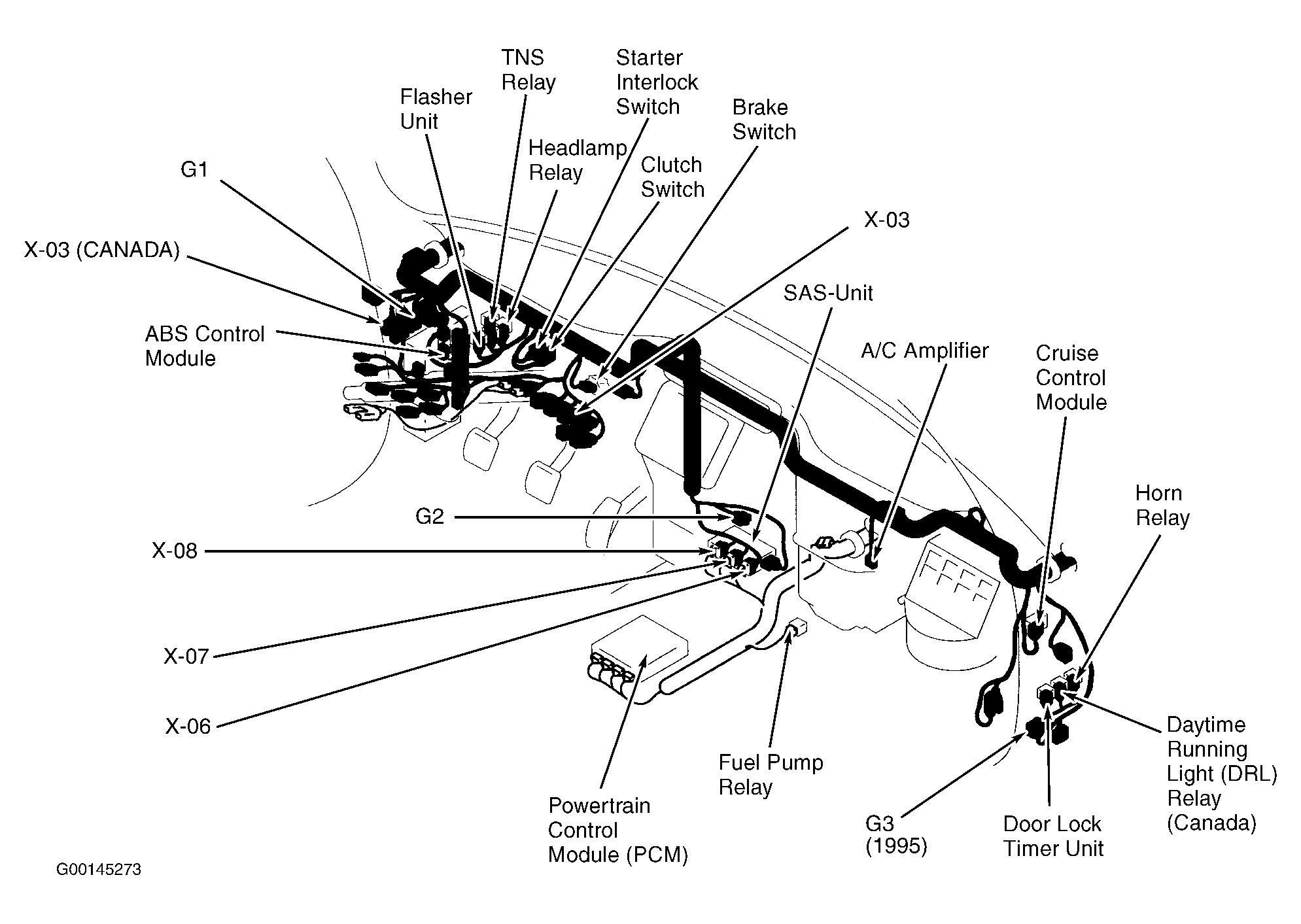

| Component | Component Location |
|---|---|
| ABS Control Module | Behind left side of dash. See Figure . |
| Central Processing Unit (CPU) | Behind left kick panel, on back of joint box. |
| Cruise Control Module | Behind right kick panel. See Figure . |
| Powertrain Control Module (PCM) | Under center of dash. See Figure . |
| SAS-Unit (Air Bag System) | Behind center of dash. See Figure . |
| Shift Lock Control Unit (1995) | Under console. |
