Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

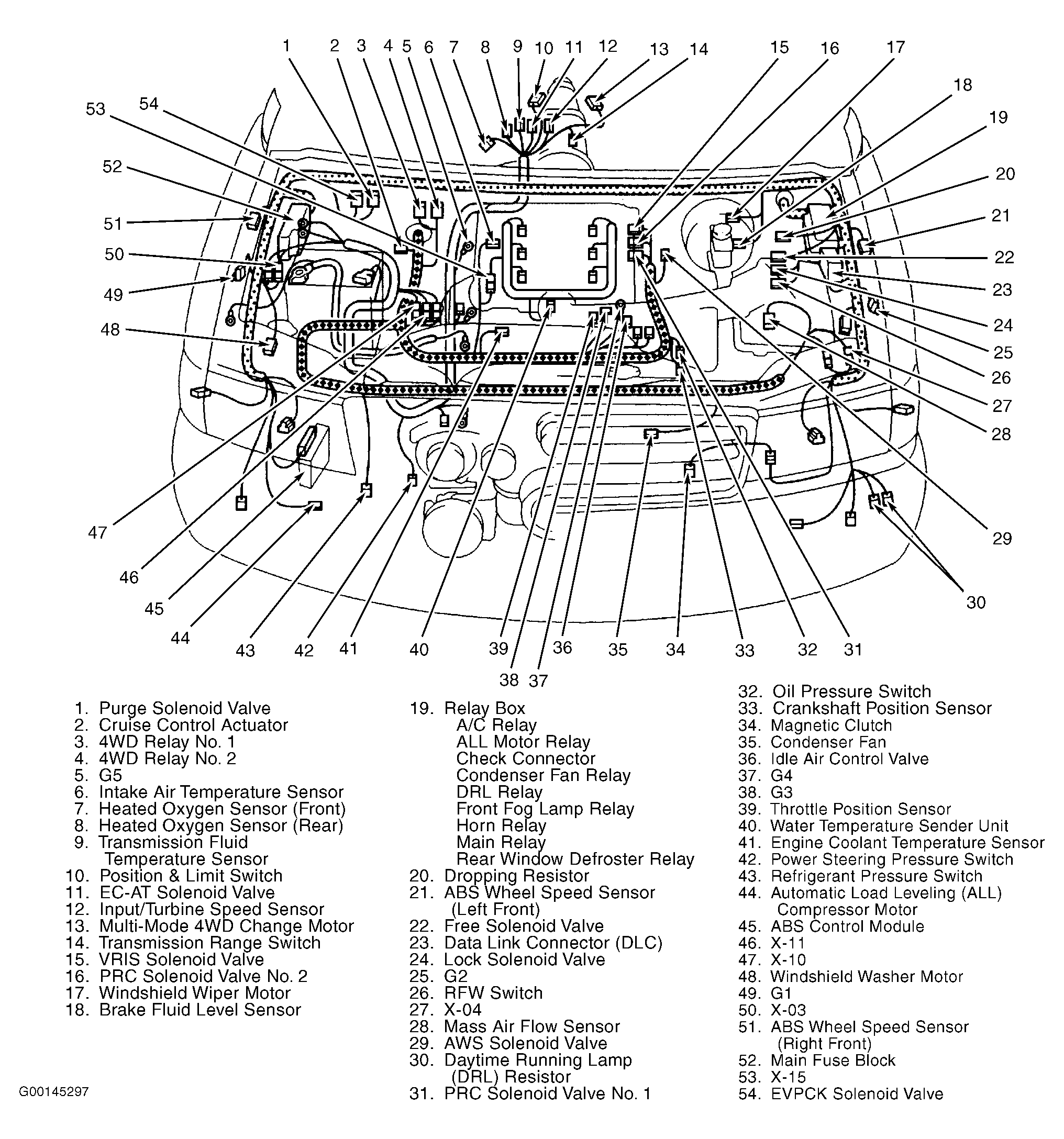

| ABS Control Module | On right front corner of engine compartment. See Figure . |

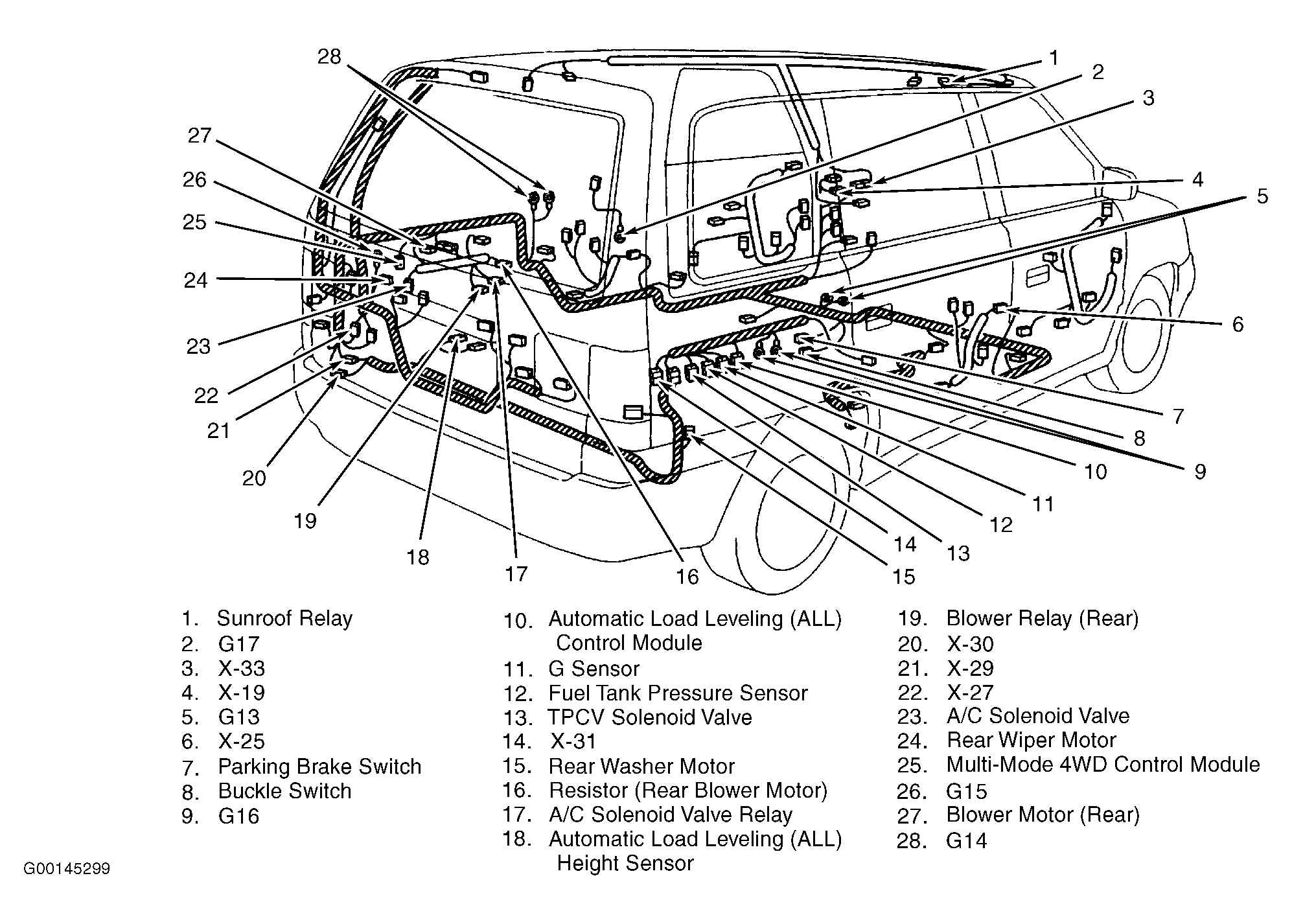

| Automatic Load Leveling (ALL) Control Module | At right rear of vehicle, behind trim panel, near wheel well. See Figure . |

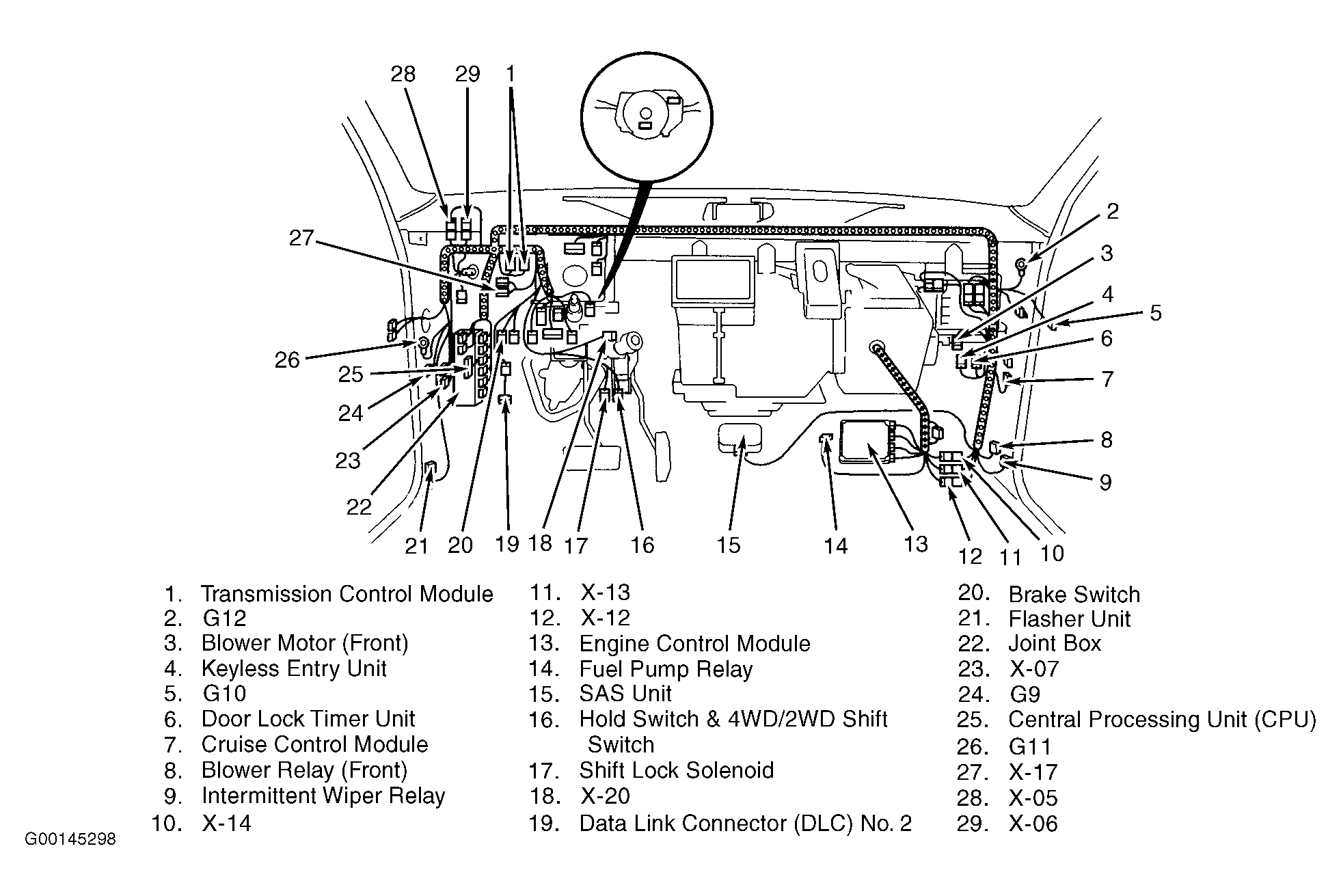

| Central Processing Unit (CPU) | Behind left side of dash, above joint box. See Figure . |
| Cruise Control Module | Behind right kick panel. See Figure . |
| Engine Control Module | Under passenger-side footwell. See Figure . |
| Keyless Entry Unit | Under right side of dash. See Figure . |
| Multi-Mode 4WD Control Module | In left rear of vehicle, near wheelwell. See Figure . |
| SAS Unit | Under right side of dash. See Figure . |
| Transmission Control Module | Behind left side of dash. See Figure . |
